Description

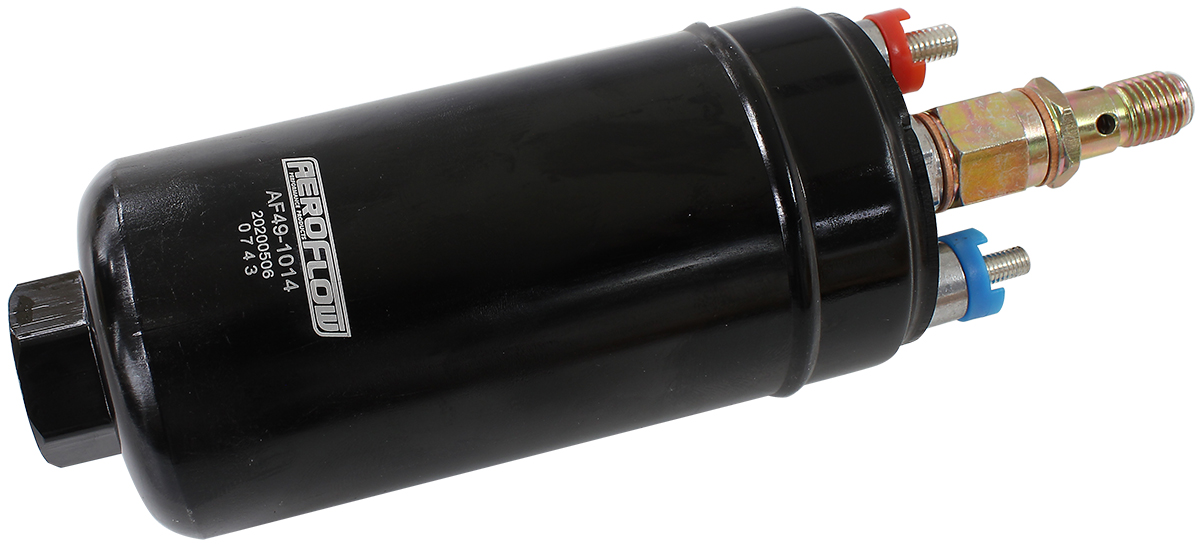

Aeroflow High Performance EFI Electric Fuel Pump (300 LPH / 675 HP)
Versatile 60mm in-tank or inline external high-pressure electric fuel pump engineered for high-horsepower road and motorsport applications.
Product Overview
The Aeroflow Performance AF49-1014 is a highly versatile, heavy-duty 60mm EFI electric fuel pump designed to meet the rigorous fuel demands of high-output engines. Delivering an impressive fuel flow rate of 300 litres per hour (79 GPH) at 72.5 PSI (5 bar), this pump reliably supports up to 675 horsepower in naturally aspirated and forced-induction setups. Sharing dimensions and fitment profile with the popular Bosch 044 style pump, it can be configured either externally as an inline pump or internally as an in-tank fuel pump.
Engineered for maximum fuel system flexibility, the AF49-1014 comes equipped with an M18 x 1.5mm female inlet thread and an M12 x 1.5mm outlet thread featuring a pre-installed check valve. It is fully compatible with unleaded petrol, E85 ethanol blends, and methanol race fuels. Available at JP Racing with fast UK shipping and technical advice.
Key Features
- ☑ High Flow Rating: 300 LPH (79 GPH) at 72.5 PSI (5 bar)
- ☑ Power Rating: Supports up to 675 HP for high-performance builds
- ☑ Dual Mount Versatility: Fits externally in-line or in-tank (60mm body)
- ☑ Fuel Compatibility: Suitable for Unleaded, E85, and Methanol
- ☑ Threaded Connections: M18 x 1.5mm Inlet & M12 x 1.5mm Outlet
- ☑ Integrated Check Valve included on the outlet assembly
Technical Specifications
| Manufacturer | Aeroflow Performance |
|---|---|
| Part Number | AF49-1014 |
| Flow Rate | 300 LPH (79 GPH) @ 72.5 PSI (5 bar) |
| Max Power Support | Up to 675 HP |
| Body Outer Diameter | 60mm (2-3/8″) |
| Inlet Thread | M18 x 1.5mm Female |
| Outlet Thread | M12 x 1.5mm (with pre-installed check valve) |
| Fuel Compatibility | Unleaded Petrol, E85, Methanol |
| Mounting Style | Inline External or In-Tank Internal |
What’s Included in the Box
- 1 x Aeroflow Performance AF49-1014 300LPH EFI Fuel Pump
- 1 x Pre-installed M12 x 1.5mm Outlet Check Valve Assembly
- 1 x Electrical Connection Hardware Kit with Protective Rubber Boots
Built to exacting motorsport standards by Aeroflow Performance, this high-flow fuel pump delivers exceptional pressure stability and reliability for demanding track and street applications. Backed by JP Racing’s dedicated UK technical team, we offer prompt dispatch across the UK and expert support to help you configure your fuel delivery system accurately.
