Description
Part Number: AF85-3000

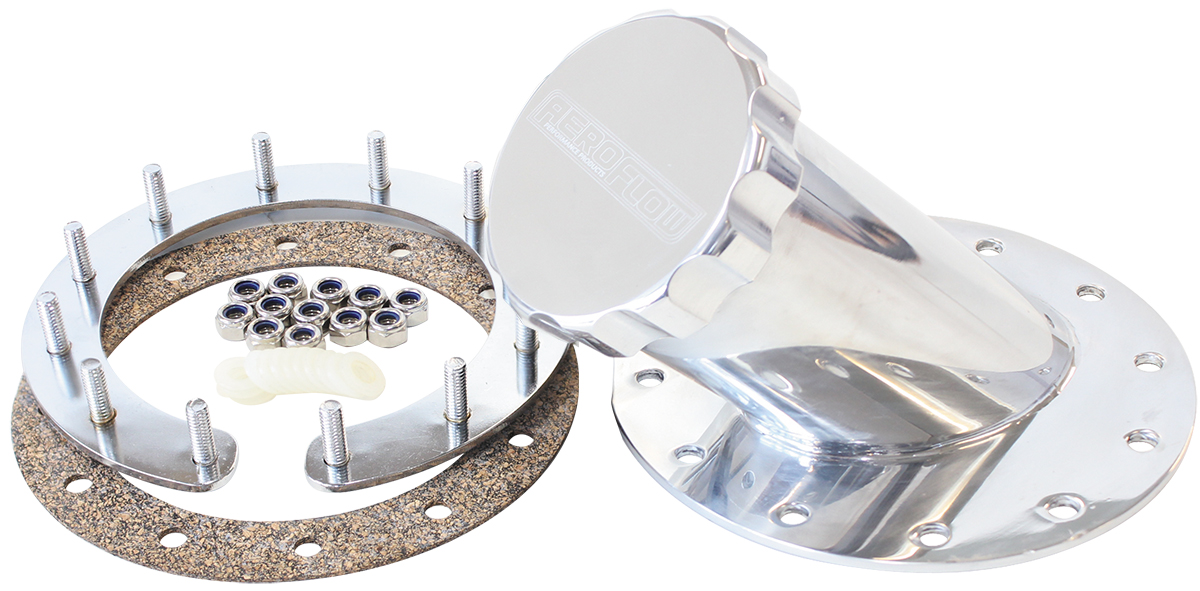

Aeroflow 45° Remote Fuel Cell Filler Neck (2.5″ / 63.5mm)
Engineered for motorsport and custom performance vehicles, the Aeroflow AF85-3000 provides a secure, high-flow remote filling solution for all Aeroflow aluminium fuel cells.
Key Features
- ☑ 45-degree angled filler neck design for streamlined external fill hose routing.
- ☑ Standard 63.5mm (2.5″) neck diameter compatible with universal fuel filler hoses.
- ☑ Suits 120mm (4-23/32″) bolt circle pattern with a required 102mm (4″) cutout.
- ☑ High-grade lightweight polished aluminium construction for maximum strength and corrosion resistance.
- ☑ Includes complete mounting kit: screw ring, gaskets, sealing washers, and nuts.
Technical Specifications
| Manufacturer | Aeroflow Performance |
|---|---|
| Part Number | AF85-3000 |
| Neck Angle | 45 Degrees |
| Neck Outside Diameter | 63.5mm (2.5″) |
| Bolt Circle Diameter | 120mm (4-23/32″) |
| Cutout Diameter | 102mm (4″) |
| Overall Height | 120mm (4-23/32″) |
| Material / Finish | Polished Aluminium |
| Compatibility | Aeroflow Performance Fuel Cells & Universal Custom Fabrication |
What’s Included in the Box
- 1 x Aeroflow 45° Polished Remote Fuel Cell Filler Neck Assembly (AF85-3000)
- 1 x Fuel Cell Screw Ring Adapter
- 1 x Sealing Gasket and Washer Pack
- 1 x Stainless Steel Mounting Hardware Fastener Kit
Aeroflow Performance products are manufactured to rigorous motorsport standards to deliver outstanding reliability on track and street. Order your Aeroflow AF85-3000 remote filler from JP Racing for expert technical support and fast UK delivery.
