Description
Part Number: AF64-4050

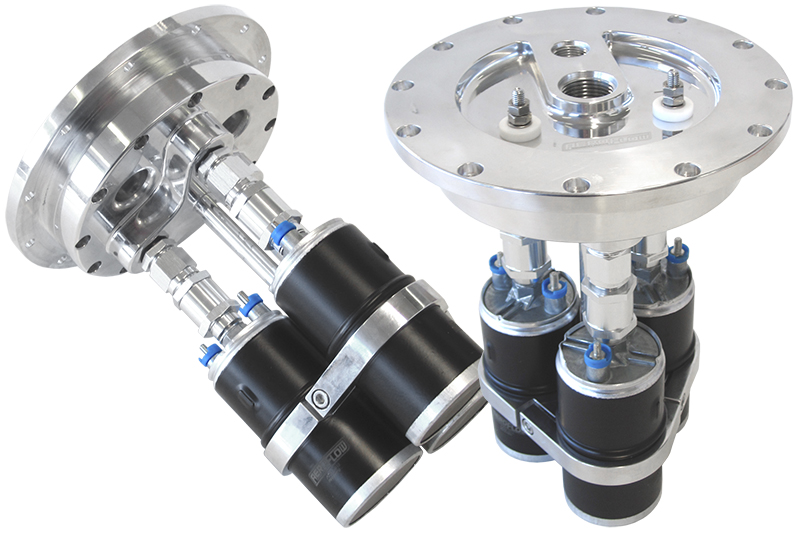

Aeroflow Billet Triple Fuel Pump Hanger
Engineered for extreme horsepower applications, the Aeroflow AF64-4050 billet triple fuel pump hanger delivers maximum high-flow fuel supply for custom fuel tanks and cells.
Key Features
- ☑ Precision CNC-machined from billet 6061-T6 aluminium with a polished finish for ultimate durability.
- ☑ Designed to house up to three in-tank fuel pumps (Aeroflow AF49-1013 or Bosch style).
- ☑ Built-in fuel manifold equalization chamber eliminating the need for external couplers.
- ☑ High-flow -12 AN / ORB main feed port and -8 AN / ORB return port for high-demand setups.
- ☑ Includes weld-on ring for mounting into custom fuel cells and tanks.
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Manufacturer Part Number | AF64-4050 |
| Material | 6061-T6 Billet Aluminium |
| Finish | Polished Aluminium |
| Cut-Out Diameter Required | 8″ (205mm) |
| Minimum Tank Depth | 10″ (250mm) |
| Feed Outlet Port | -12 ORB / AN |
| Return Outlet Port | -8 ORB / AN |
| Pump Compatibility | Aeroflow AF49-1013 / Bosch style in-tank pumps |
What’s Included in the Box
- 1 x Aeroflow Billet Triple Fuel Pump Hanger Assembly (Polished)
- 1 x Weld-On Ring Flange for Custom Tank Mounting
- 1 x O-Ring Mounting Gasket & Stainless Steel Fasteners

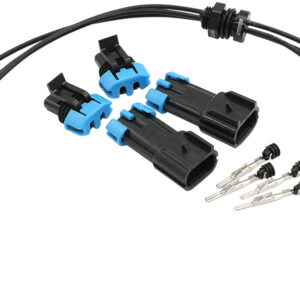

- Heavy-Duty Electrical Terminal Bulkhead Connectors
Aeroflow Performance products are manufactured to rigorous motorsport standards, offering race-proven fuel delivery and system reliability. Order your AF64-4050 triple fuel pump hanger from JP Racing today for expert technical advice and fast UK delivery.
