Description
Part Number: AF85-2150AS

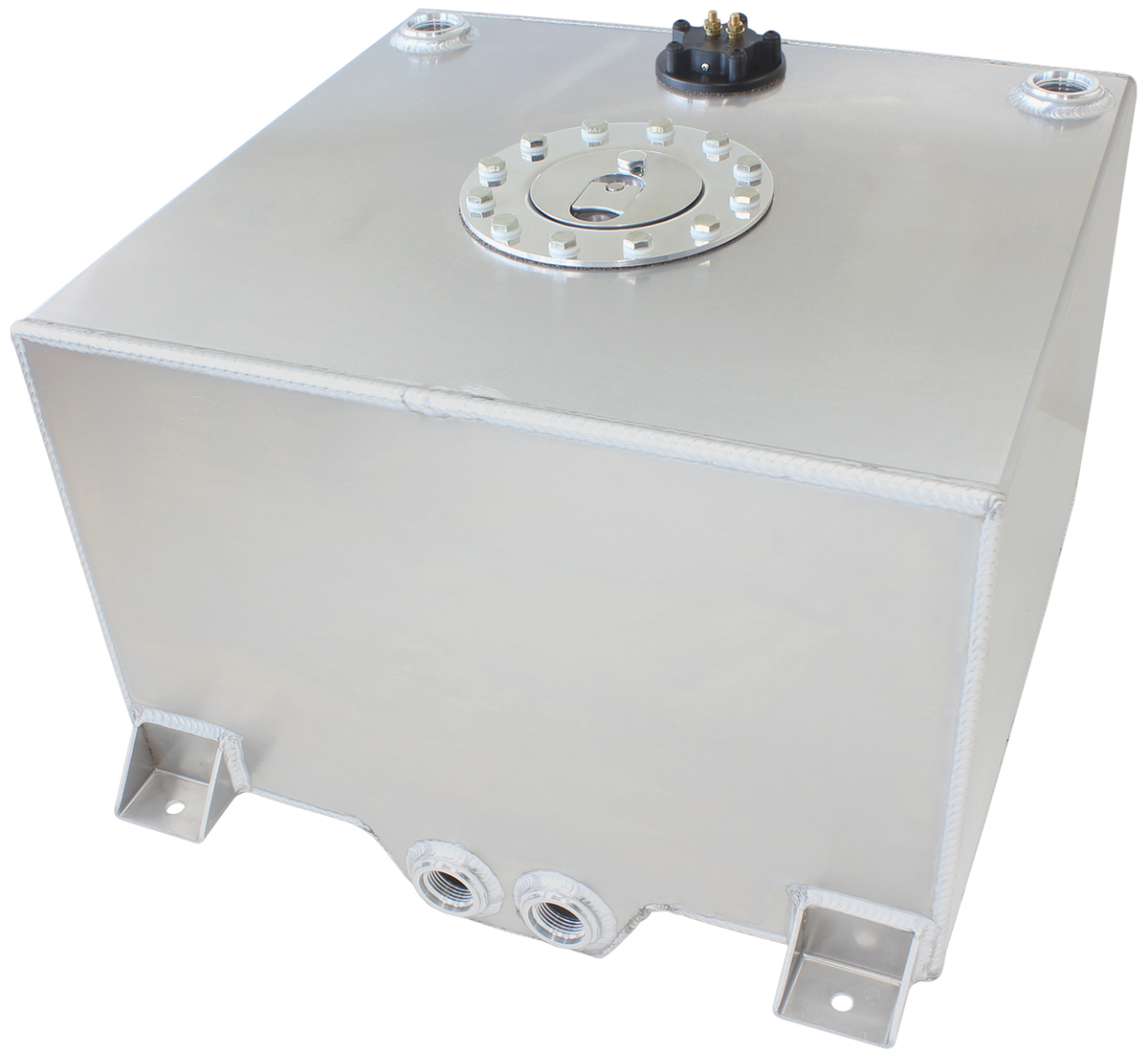

Aeroflow 57 Litre Aluminium Fuel Cell with Sump & Sender
Robotic-welded 5052 alloy fuel tank featuring integral baffling, aircraft billet cap, and integrated 0-90 Ohm sender.
Key Features
- ☑ Constructed from high-grade 3mm (1/8″) 5052 sheet aluminium for superior structural integrity
- ☑ Precision robotic TIG welding guarantees leak-free seams and high-end weld appearance
- ☑ Integrated base sump/cavity prevents fuel starvation under severe acceleration and cornering
- ☑ Internal baffling system minimizes fuel sloshing and aeration during competition
- ☑ Flush-mount aircraft-style CNC billet cap with integrated 1-way air breather valve
- ☑ Pre-installed 0-90 Ohm tube-style fuel sender unit for simple aftermarket gauge integration
- ☑ Industry-standard -12 ORB female ports for high-capacity motorsport plumbing
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Part Number | AF85-2150AS |
| Capacity | 57 Litres / 15 US Gallons |
| Material | 3.0mm (1/8″) 5052 Sheet Aluminium |
| Finish | Natural / Raw Aluminium |
| Dimensions | 18-1/8″ L x 20-1/16″ W x 10-1/4″ H (46cm x 51cm x 26cm) |
| Port Threads | -12 ORB Female Threads |
| Fuel Sender | 0-90 Ohm Tube-Style Sender Included |
| Cap Type | Flush Mount Aircraft CNC Billet Cap |
| Mounting | 4 Heavy-Duty Welded Mounting Brackets |
What’s Included in the Box
- 1 x Aeroflow 57L Aluminium Fuel Cell with Sump (AF85-2150AS)
- 1 x Flush-Mount CNC Billet Filler Cap with 1-Way Breather Valve
- 1 x 0-90 Ohm Tube-Style Fuel Sender Unit
- 4 x Integrated Heavy-Duty Mounting Brackets
Engineered to meet the most extreme demands of modern motorsport, Aeroflow Performance fuel cells provide unmatched safety and delivery reliability for track cars, drag racing, and custom high-performance builds. At JP Racing, we supply genuine Aeroflow products with fast UK shipping and expert technical assistance to help you configure your fuel system flawlessly.
