Description
Part Number: AF85-4050AS

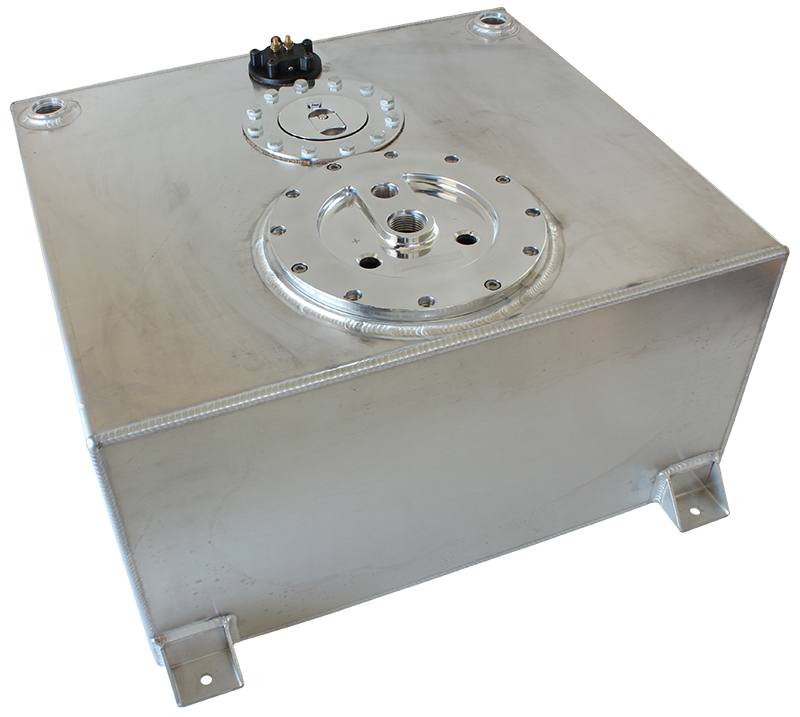

Aeroflow 57L Aluminium Fuel Cell with Triple Pump Hanger & Fuel Sender
High-capacity 15 US gallon 5052 aluminium cell with robotic TIG welds, internal anti-surge baffling, and integrated billet triple 60mm pump hanger.
Key Features
- ☑ Constructed from 3mm (1/8″) thick 5052 sheet aluminium for superior structural integrity.
- ☑ Precision robotically TIG-welded seams ensure leak-free performance under race conditions.
- ☑ Integrated CNC 6061-T6 billet triple pump hanger supporting 1, 2, or 3 x 60mm fuel pumps.
- ☑ Internal anti-surge baffling system and built-in fuel manifold log (-12AN feed, -8AN return).
- ☑ Pre-installed 0-90 Ohm tube-style fuel level sender for accurate fuel monitoring.
- ☑ Flush-mount aircraft-style billet fuel cap with integral 1-way rollover breather valve.
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Part Number | AF85-4050AS |
| Capacity | 57 Litres / 15 US Gallons |
| Material | 3mm (1/8″) 5052 Aluminium |
| Finish | Raw Aluminium / Silver |
| Pump Hanger | Billet Triple 60mm Hanger (Pumps Sold Separately) |
| Sender Unit | 0-90 Ohm Tube Style Included |
| Port Threads | -12 ORB female ports / -12AN Feed & -8AN Return |
| Dimensions | 18-1/8″ L x 20-1/16″ W x 10-1/4″ H (46cm x 51cm x 26cm) |
What’s Included in the Box
- 1 x Aeroflow 57L Raw Aluminium Fuel Cell (AF85-4050AS)
- 1 x Integrated CNC Billet Triple 60mm Fuel Pump Hanger Assembly
- 1 x Pre-Installed 0-90 Ohm Tube Style Fuel Level Sender
- 1 x Flush-Mount Aircraft-Style Billet Fuel Cap
Built to withstand extreme motorsport demands, the Aeroflow 57L alloy fuel cell ensures reliable fuel supply under intense acceleration and high G-force cornering. Available from JP Racing with fast UK delivery and full technical support.
