Description
Part Number: AF85-4050ASBLK

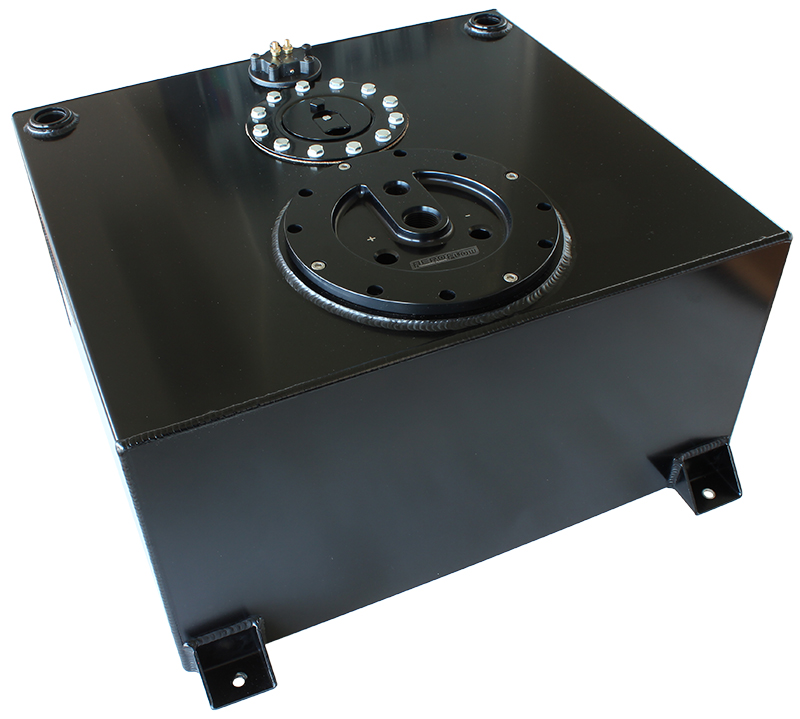

Aeroflow 57L Aluminium Fuel Cell with Triple 60mm Pump Hanger – Black
Engineered for extreme motorsport demands, the Aeroflow 57L (15 Gallon) black alloy fuel cell features a pre-installed CNC-machined billet triple 60mm fuel pump hanger and 0-90 ohm sender unit.
Key Features
- ☑ Robotically welded 3mm (1/8″) 5052 heavy-duty sheet aluminium construction
- ☑ Integrated CNC billet 6061-T6 triple 60mm fuel pump hanger for high-flow demands
- ☑ Internal baffling system prevents fuel slosh and fuel starvation under high G-forces
- ☑ Flush-mount aircraft-style billet cap with integrated 1-way safety air valve
- ☑ Includes standard 0-90 ohm fuel level sender unit for accurate dash reporting
- ☑ Durable black anodised finish for enhanced corrosion resistance
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Part Number | AF85-4050ASBLK |
| Capacity | 57 Litres / 15 US Gallons |
| Dimensions | 460mm L x 510mm W x 260mm H (18-1/8″ L x 20-1/16″ W x 10-1/4″ H) |
| Pump Compatibility | Triple 60mm Fuel Pumps (e.g. Bosch / Aeroflow) |
| Fuel Sender Unit | 0-90 Ohm Resistance Range |
| Main Outlet / Return Ports | -12 ORB Female Feed, -8 ORB Return |
| Material / Finish | 3mm 5052 Aluminium / Black Anodised |
What’s Included in the Box
- 1 x Aeroflow 57L Black Aluminium Fuel Cell
- 1 x Preinstalled Billet Triple 60mm Fuel Pump Hanger
- 1 x Preinstalled 0-90 Ohm Fuel Level Sender
- 1 x Flush-Mount Billet Fuel Cap Assembly
Aeroflow Performance products are built to the highest engineering standards to withstand demanding track conditions. JP Racing is proud to offer full UK technical support and fast delivery across the entire Aeroflow fuel systems range.
