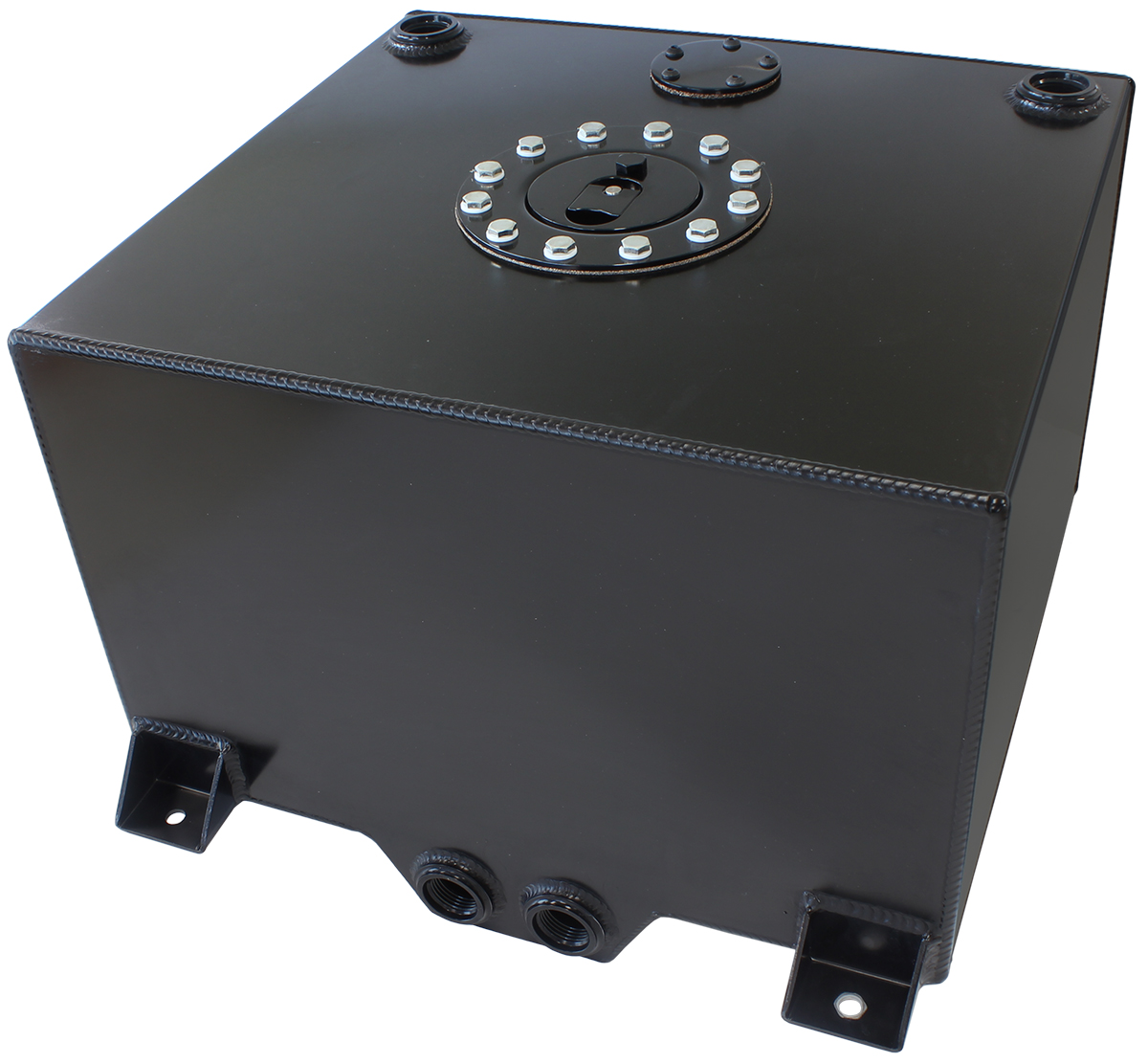

Aeroflow 38L (10 US Gal) Black Alloy Fuel Cell with Cavity Sump
Engineered for high-performance motorsport applications, delivering continuous, surge-free fuel supply under high G-forces.
Product Overview
The Aeroflow AF85-2100ABLK 38-litre (10 US Gallon) alloy fuel cell is precision robotically TIG-welded from 3mm (1/8″) 5052 sheet aluminium to meet extreme circuit and drag racing demands. Featuring an innovative base cavity/sump design paired with an internal baffling system, this fuel cell prevents fuel starvation at low levels during hard cornering and acceleration. Outfitted with female -12 ORB ports and a CNC billet flush-mount filler cap with an integral 1-way breather valve, it provides a safe, leak-free fuel setup compatible with pump fuel, E85, and methanol.
Key Features
- ☑ Heavy-duty 3.0mm (1/8″) 5052 aircraft-grade sheet metal aluminium construction
- ☑ Precision robotic TIG welding ensures superior weld consistency and clean seam joints
- ☑ Bottom cavity sump design protects pick-ups from fuel starvation under high G-loads
- ☑ Internal baffling system prevents fuel slosh and is ethanol & methanol safe
- ☑ Four female -12 ORB threaded ports for versatile pick-up, return, and rollover vent routing
- ☑ Flush aircraft-style CNC billet cap with flip-up twist action and integrated air breather valve
- ☑ Four robust welded mounting brackets for secure chassis fitment
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Manufacturer Part Number | AF85-2100ABLK |
| Capacity | 38 Litres / 10 US Gallons |
| Material | 3mm (1/8″) 5052 Sheet Aluminium |
| Finish | Black Anodised / Painted |
| Welding | Robotic TIG Welded |
| Dimensions (L x W x H) | 14-15/16″ x 16-1/8″ x 10-1/4″ (38cm x 41cm x 26cm) |
| Port Thread Size | -12 ORB Female (x4) |
| Cap Style | CNC Billet Alloy Flush Cap with 1-Way Breather Valve |
| Fuel Compatibility | Unleaded, Race Fuel, E85 Ethanol, Methanol |
What’s Included in the Box
- 1 x Aeroflow 38L Black Alloy Fuel Cell with Cavity Sump (AF85-2100ABLK)
- 1 x CNC Billet Flush-Mount Twist Cap with Breather Valve
- Welded Mounting Flanges (Attached)
As an authorized UK distributor for Aeroflow Performance products, JP Racing supplies championship-proven fuel system components with full technical support and fast UK delivery.
