Description
Part Number: AF42-1002

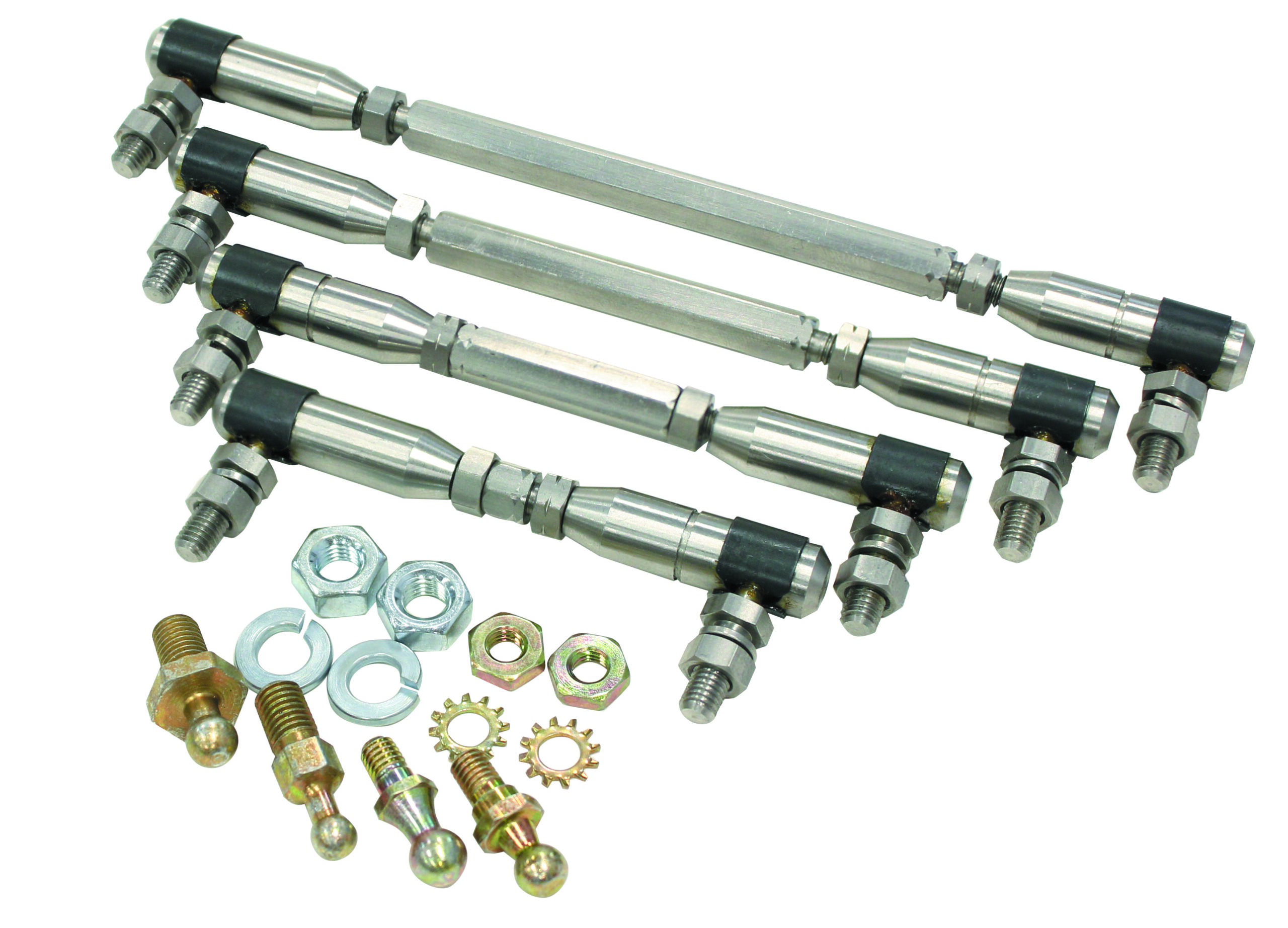

Aeroflow 316 Stainless Steel Carburettor Linkage Kit (70mm / 2-3/4″)
Connect your throttle pedal assembly to your carburettor quickly and reliably with the Aeroflow AF42-1002 adjustable linkage rod kit.
Key Features
- ☑ Premium 316 marine-grade stainless steel construction for high strength and ultimate corrosion resistance
- ☑ Adjustable ball-to-ball length from 70mm (2-3/4″) to 95mm (3-3/4″) providing 1″ (25mm) of fine adjustment
- ☑ Quick-release ball joint sockets for fast tool-free disconnection during service or tuning
- ☑ Standard 1/4″-28 linkage ball thread size for broad compatibility with throttle linkages and carburettor arms
- ☑ Delivers positive, slop-free throttle cable & linkage actuation under heavy motorsport use
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Manufacturer Part Number | AF42-1002 |
| Material | 316 Stainless Steel |
| Minimum Length (Ball to Ball) | 70mm (2-3/4″) |
| Maximum Length (Ball to Ball) | 95mm (3-3/4″) |
| Adjustment Range | 25mm (1″) |
| Linkage Ball Thread Size | 1/4″-28 |
| Disconnect Mechanism | Quick-Release Sockets |
What’s Included in the Box
- 1 x Aeroflow AF42-1002 316 Stainless Steel Carburettor Linkage Rod Assembly (70mm base)
- 2 x Quick-Release Ball Sockets with 1/4″-28 Thread Hardware
Engineered to meet demanding motorsport standards, Aeroflow Performance linkage kits ensure precise throttle pedal response for street, track, and drag applications. Available with fast UK shipping and full technical support from JP Racing.
