Description

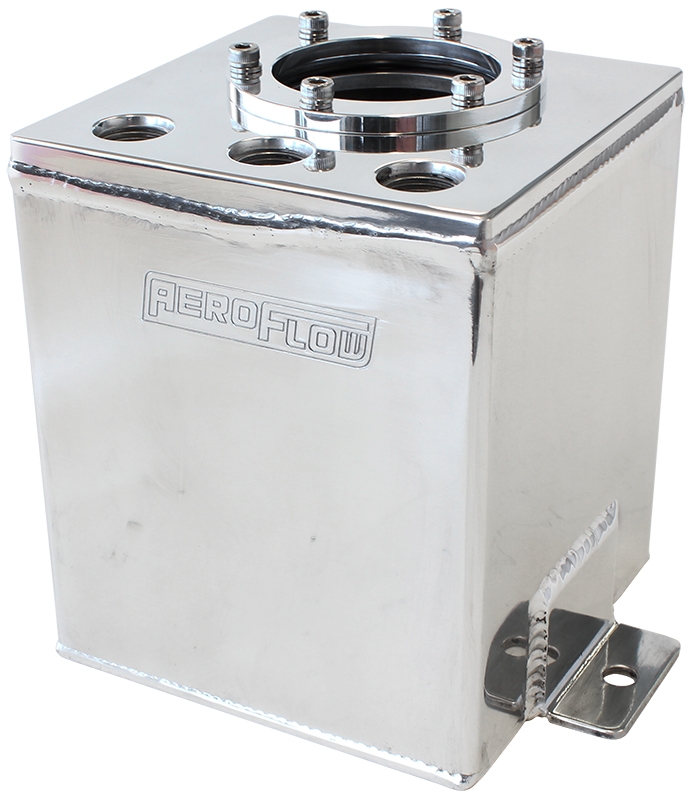

Aeroflow Single Compact EFI Fuel Pump Surge Tank – Polished
Engineered to eliminate fuel starvation under high G-force cornering and acceleration.
Product Overview
The Aeroflow Performance AF77-3144 Single Compact EFI Fuel Pump Surge Tank prevents fuel starvation caused by fuel sloshing in unbaffled main fuel tanks during aggressive track driving, drifting, drag racing, and off-road competition. Constructed from 2.5mm robotically TIG-welded aluminium with a bright polished finish, this compact unit keeps the internal fuel pump fully submerged in fuel for reduced noise and longer operating life.
Featuring three female -8 ORB (O-Ring Boss) ports for leak-free sealing, the AF77-3144 is specifically designed to be mounted horizontally under the vehicle. It accommodates a single 60mm diameter inline fuel pump, such as the Aeroflow AF49-1014 or standard Bosch 044 style pump.
Key Features
- ☑ Designed to house 1 x 60mm fuel pump (Aeroflow AF49-1014 or Bosch 044 style) submerged in fuel
- ☑ Precision robotically TIG-welded 2.5mm high-grade aluminium construction
- ☑ Polished aluminium finish for high durability and sleek appearance
- ☑ Three female -8 ORB ports for secure, leak-free plumbing options
- ☑ Horizontal mounting layout optimized for under-vehicle installation
- ☑ Submerged pump configuration ensures quieter operation and cooler fuel pump temperatures
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Manufacturer Part Number | AF77-3144 |
| Tank Type | Single EFI Fuel Pump Surge Tank |
| Compatible Fuel Pump | 1 x 60mm Body (AF49-1014 / Bosch 044 style) |
| Finish | Polished Aluminium |
| Material | 2.5mm Aluminium (Robotically TIG-welded) |
| Port Size | 3 x Female -8 ORB |
| Dimensions (L x W x H) | 5.00″ x 5.00″ x 6.30″ (127mm x 127mm x 160mm) |
| Mounting Orientation | Horizontal (Underbody Mount) |
What’s Included in the Box
- 1 x Aeroflow AF77-3144 Single Compact EFI Surge Tank (Polished)
- Internal pump mounting hardware and sealing components
At JP Racing, we supply top-tier motorsport fuel system components with fast UK delivery and dedicated technical support. Upgrade your vehicle’s fuel delivery with confidence using authentic Aeroflow Performance hardware.
