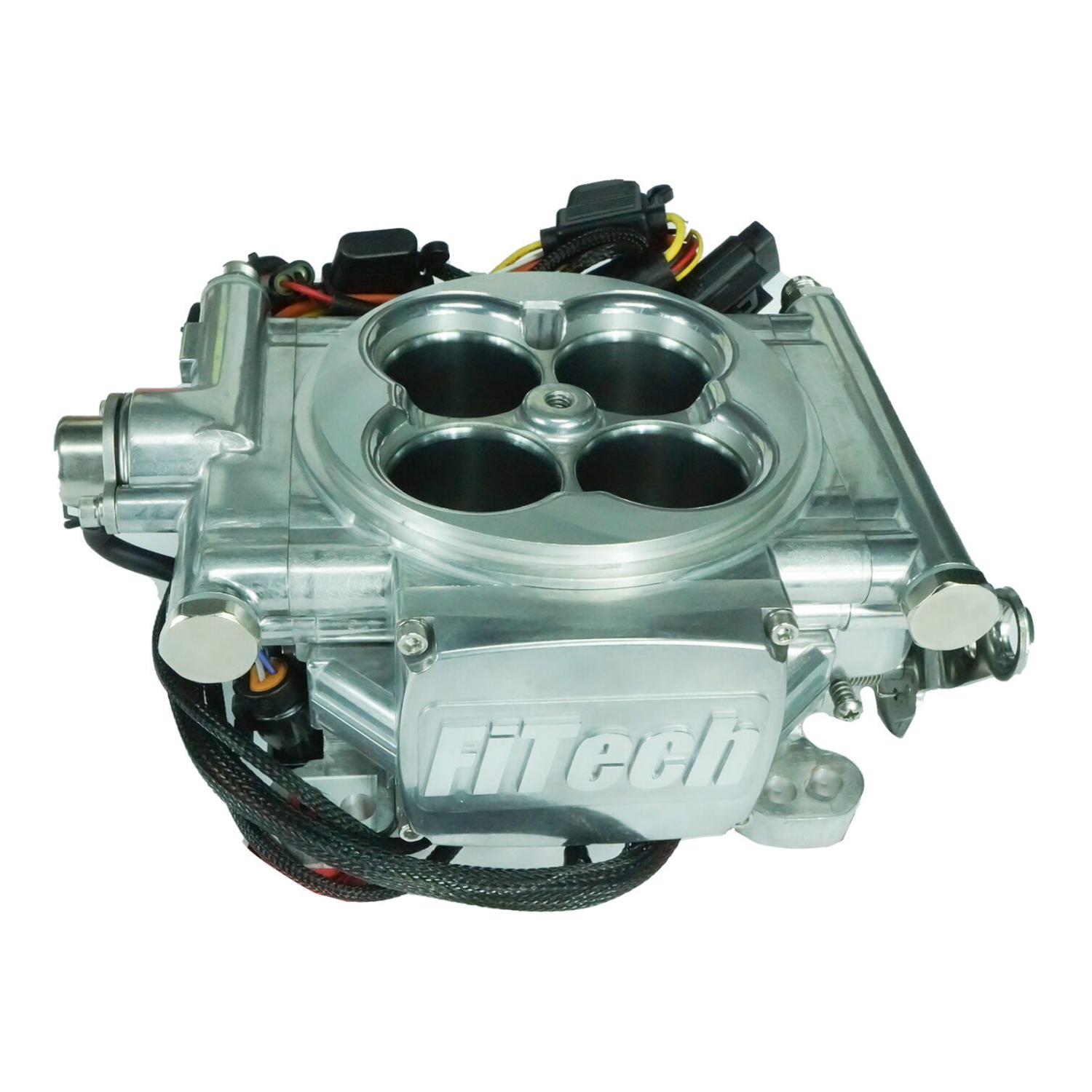

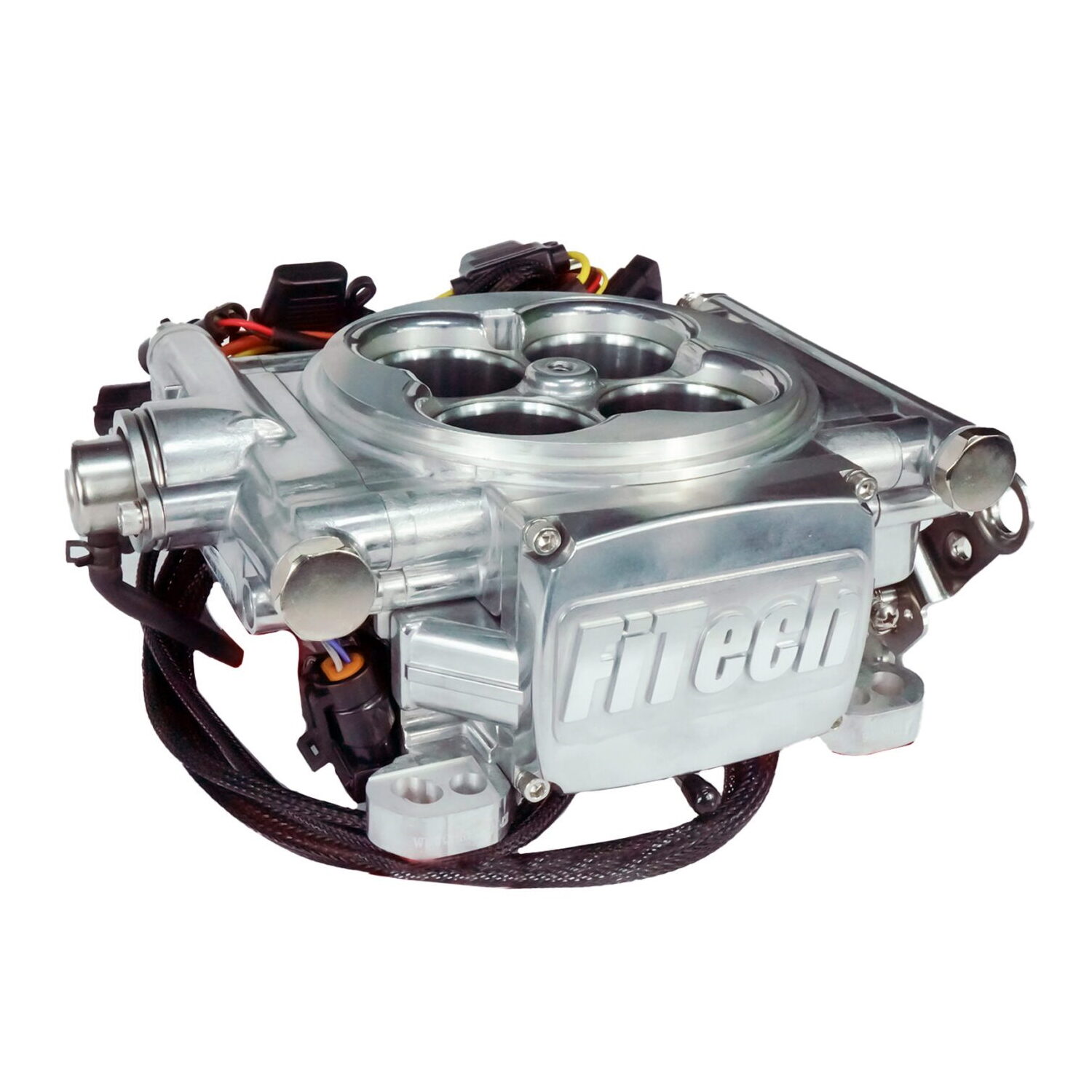

FITECH Go EFI 4 600 HP Power Adder Bright Aluminium EFI System
FITECH Go EFI 4 600 HP Power Adder Bright Aluminium EFI System - Image 2
FITECH Go EFI 4 600 HP Power Adder Bright Aluminium EFI System - Image 3

FITECH Go EFI 4 600 HP Power Adder Bright Aluminium EFI System

£1,394.48 Inc. VAT

SKU: FIT30006 Categories: , , Brand:

Description

Part Number: 30006

FiTech Go EFI 4 600 HP Power Adder System (Bright Aluminum)

Self-tuning 4-barrel throttle body fuel injection system engineered for forced induction, nitrous, and naturally aspirated engines up to 600 HP.

Key Features

  • ☑ Supports naturally aspirated, forced induction (up to 25 lbs boost), and nitrous applications up to 600 HP
  • ☑ Integrated 2.5 BAR MAP sensor and ignition spark timing control with boost/nitrous retard functions
  • ☑ Self-tuning technology continuously adjusts fuel mapping via adaptive ECU algorithms
  • ☑ Four high-flow, flow-matched injectors housed in a 4150-flange die-cast throttle body
  • ☑ Computer ECU mounted directly to the throttle body for simplified wiring and clean engine bay aesthetics
  • ☑ Bright aluminum polished finish provides classic high-performance style and durability

Technical Specifications


Brand FiTech Fuel Injection
Part Number 30006
System Series Go EFI 4 600 HP Power Adder
Throttle Body Finish Bright Aluminum / Polished
Flange Pattern 4150 Square Bore
Max Power Output 600 HP
Fuel Injectors 4 Flow-Matched Injectors
Internal MAP Sensor 2.5 BAR (Supports up to 25 psi Boost)
Timing Control Integrated Spark Control with Boost & Nitrous Retard

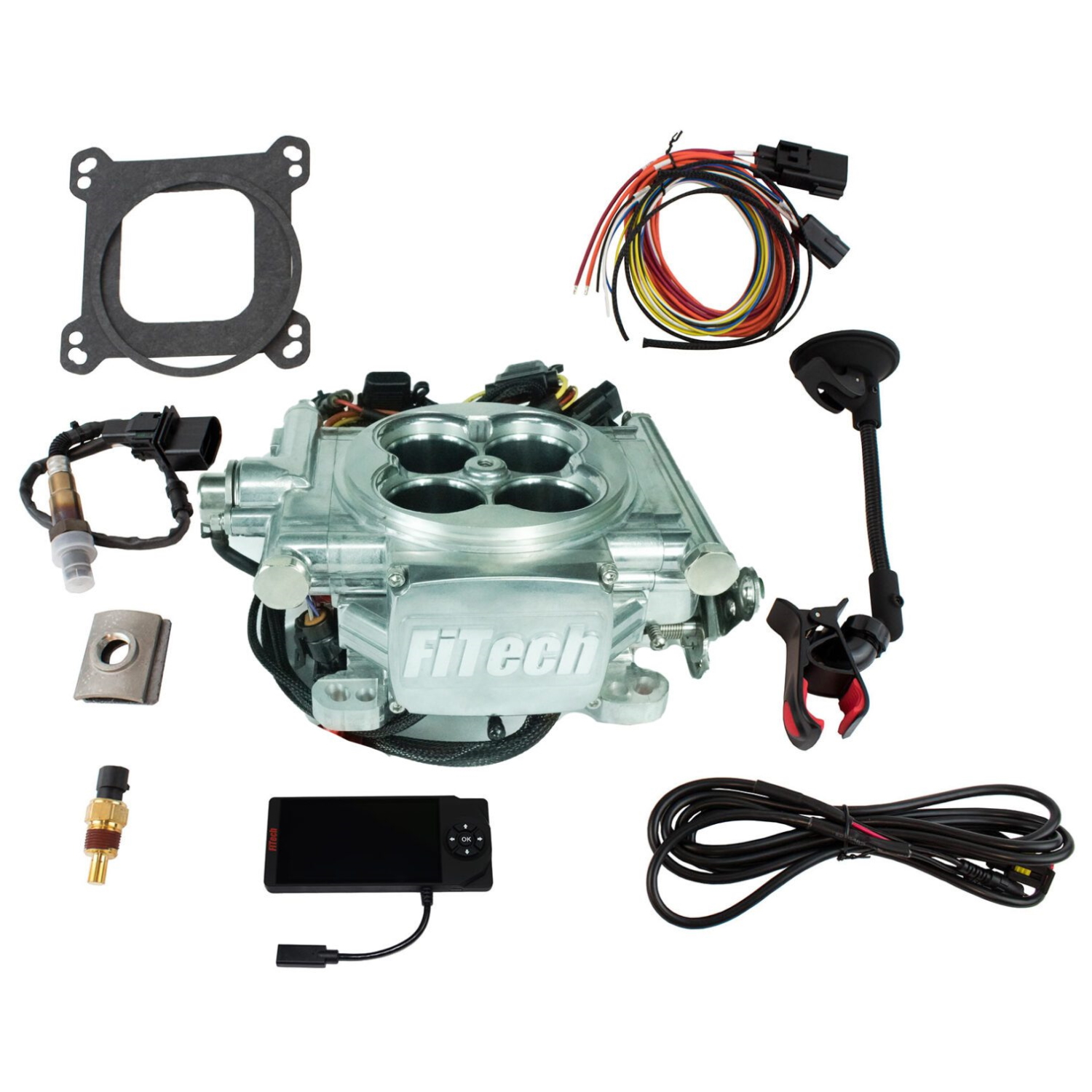

What’s Included in the Box

  • FiTech 4-Injector Throttle Body Assembly (Bright Aluminum)
  • Handheld Touchscreen Controller with Cable & Windshield Mount
  • Wideband Oxygen (O2) Sensor & Steel Weld-In Bung Kit
  • Coolant Temperature Sensor (CTS) & Adapter
  • Plug-in Wiring Harness (“A” User Harness)
  • 4150 Base Gasket Set & Mounting Hardware

FiTech Fuel Injection leads the automotive industry in self-learning throttle body EFI conversions, combining modern electronic fuel delivery with straightforward installation. At JP Racing, we supply full technical support and fast UK shipping to ensure your engine project achieves peak efficiency and power performance.

Additional information

Weight 11 kg
Dimensions 14 × 12 × 7 cm

Frequently Asked Questions

The FiTech 30006 Go EFI 4 Power Adder kit fits standard 4-barrel 4150 intake manifolds on engines producing between 200 HP and 600 HP. It is engineered to handle naturally aspirated applications, forced induction setups (turbochargers or superchargers up to 25 psi boost), and wet nitrous systems.

Yes, the 30006 features onboard ignition spark control capability. It allows full timing mapping, including programmable timing retard features under boost or when a nitrous signal is activated, protecting your engine against detonation under heavy load.

No, the engine control unit (ECU) is integrated directly onto the aluminum throttle body assembly. This self-contained design eliminates the need to cut holes in the firewall or mount an external computer box inside the car, making installation exceptionally clean and straightforward.
