FITECH Go EFI 4 600 HP Power Adder Bright Aluminum EFI System With Go Spark CDI Box

FITECH Go EFI 4 600 HP Power Adder Bright Aluminum EFI System With Go Spark CDI Box

£1,555.00 Inc. VAT

SKU: FIT93006 Categories: , , Brand:

Description

Part Number: 93006

FiTech Go EFI 4 600 HP Power Adder System with Go Spark CDI Box (Bright Aluminum)

Engineered for forced induction and high-output street or strip engines, the FiTech 93006 delivers self-tuning electronic fuel injection and precision ignition timing control for engines rated up to 600 HP.

Key Features

  • ☑ Supports naturally aspirated, forced induction (up to 25 lbs boost), and wet nitrous applications from 200 to 600 HP
  • ☑ Integrated 2.5 BAR internal MAP sensor for accurate boost reference in turbo or supercharged setups
  • ☑ Supplied with the high-output FiTech Go Spark CDI Ignition Box for maximum spark energy and multi-spark output
  • ☑ Self-tuning ECU mounted directly on throttle body eliminates complex external wiring looms
  • ☑ Wet flow annular swirl discharge design ensures total fuel atomization
  • ☑ Programmable boost and nitrous timing retard features for maximum engine safety
  • ☑ Fits standard 4-barrel intake manifolds for straightforward carburetor replacement
  • ☑ Includes handheld color touchscreen controller for easy initial setup and real-time monitoring

Technical Specifications


Manufacturer FiTech Fuel Injection
Part Number 93006
Horsepower Rating 200 HP to 600 HP
Throttle Body Finish Bright Aluminum
Flange Type 4-Barrel (4150 Style)
Injector Quantity & Rate 4 Flow-Matched Injectors (80 lbs/hr)
MAP Sensor 2.5 BAR Internal MAP Sensor (Up to 25 psi boost)
Ignition Control Integrated Timing Control + Go Spark CDI Box
Fuel Pressure Regulator Built-in Internal Regulator
Fan Control Dual Electric Fan Control Outputs

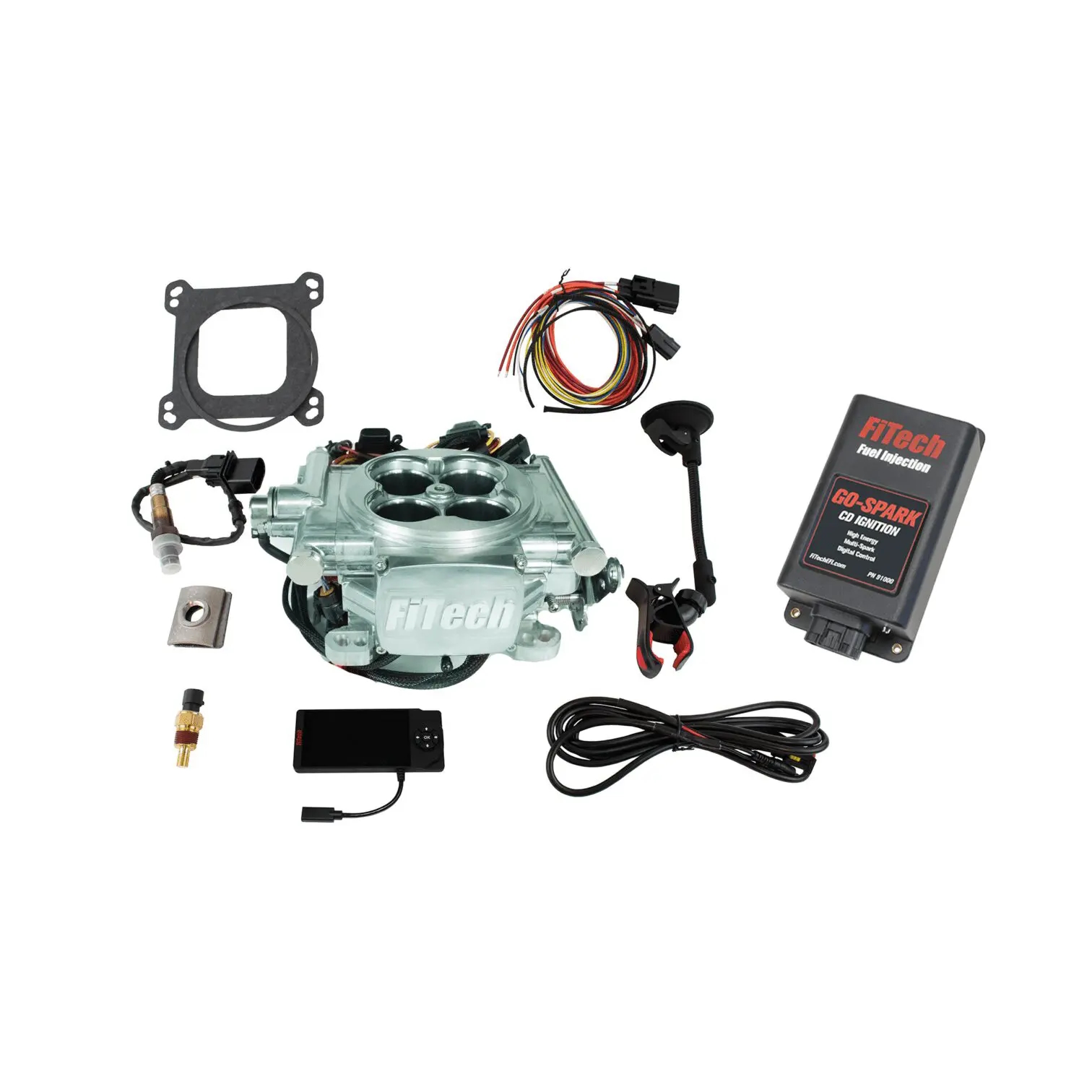

What’s Included in the Box

  • FiTech Go EFI 4-Barrel Throttle Body Unit (Bright Aluminum Finish)
  • FiTech Go Spark CDI Ignition Box with Harness
  • Handheld Touchscreen Controller with Cable & Windshield Mount
  • Bosch Wideband Oxygen (O2) Sensor and Weld-In Bung Kit
  • Coolant Temperature Sensor (CTS) & Adapter
  • 4+2 Pin Wiring Harness & Gasket Pack
  • Mini USB Interface Cable

FiTech Fuel Injection is world-renowned for bringing modern electronic fuel injection within reach of performance builders and classic vehicle enthusiasts. Designed for boost, nitrous, or high-performance naturally aspirated applications, the 93006 kit offers ultimate drivability and horsepower potential. Order your genuine FiTech kit from JP Racing for expert technical support and fast UK dispatch.

Additional information

Weight 14 kg
Dimensions 15 × 22 × 7 cm

Frequently Asked Questions

The FiTech 93006 Go EFI 4 Power Adder system is designed for 4, 6, or 8-cylinder engines producing between 200 HP and 600 HP with a standard 4-barrel intake manifold flange. It supports naturally aspirated setups, blow-through turbocharger and centrifugal blower applications, single roots-style superchargers, and single-stage wet nitrous systems.

The included FiTech Go Spark CDI Box works directly in tandem with the throttle body ECU to deliver high-output, multi-spark ignition up to 2,500 RPM and maximum energy sparks up to 10,000 RPM. This ensures complete combustion under high cylinder pressures associated with boost and nitrous, while allowing the FiTech ECU to maintain full ignition timing control.

Yes. Thanks to its onboard 2.5 BAR internal MAP sensor (capable of reading up to 25 psi of boost) and dedicated nitrous inputs, the system allows you to program specific timing retard rates based on boost pressure or nitrous activation. Air/fuel ratios and timing curve adjustments can easily be monitored or tuned via the included handheld touchscreen controller.
