Description
Part Number: 50005

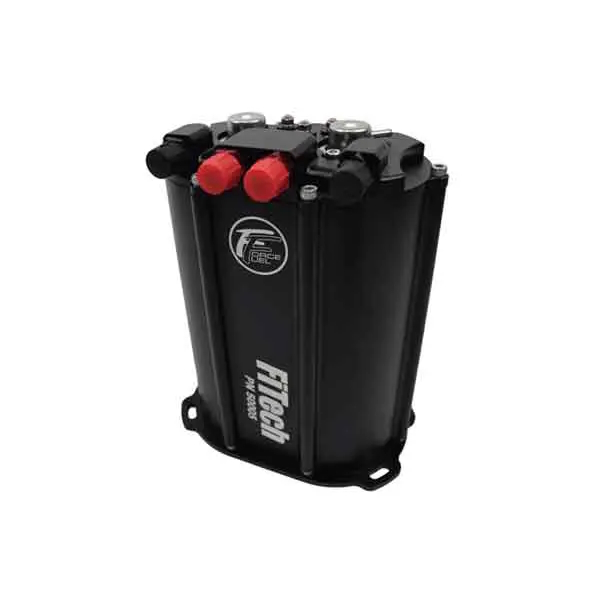

FiTech Go Fuel Dual Pump Force Fuel Surge Tank
Simplify high-horsepower EFI conversions with an under-hood surge tank delivering continuous high-pressure fuel delivery up to 1,600 HP.
Key Features
- ☑ Dual internal 340 LPH high-flow electric fuel pumps supporting up to 1,600 HP on gasoline
- ☑ Dual internal fuel pressure regulators maintain consistent 58 PSI output for reliable EFI operation
- ☑ 0.5-gallon (1.75 L) reservoir keeps pumps submerged to eliminate fuel starvation and cavitation
- ☑ Connects directly to existing low-pressure mechanical or electric fuel pumps without replacing main lines
- ☑ Robust versatile mounting bracket enables convenient side or bottom under-hood installation
- ☑ Compatible with standard gasoline, E85, ethanol, and methanol-based race fuels
Technical Specifications
| Brand | FiTech Fuel Injection |
|---|---|
| Manufacturer Part Number | 50005 |
| Product Line | Go Fuel Force Fuel Systems |
| Pump Flow Rate | Dual 340 LPH (680 LPH Total) |
| Horsepower Rating | Up to 1,600 HP (Gasoline) |
| Operating Pressure | 58 PSI (Internal Regulators) |
| Reservoir Capacity | 0.5 Gallons (1.75 Litres) |
| Fuel Compatibility | Gasoline, E85, Alcohol, Methanol |
| Mounting Location | Under-Hood (Side or Bottom Bracket Mount) |
What’s Included in the Box
- FiTech Force Fuel 0.5-Gallon Surge Tank Reservoir Assembly
- 2 x Pre-Installed 340 LPH Internal Electric Fuel Pumps
- Dual Pre-Set 58 PSI Internal Regulators
- Multi-Position Versatile Mounting Bracket
- Installation Hardware Kit
Designed to solve complex fuel delivery challenges when upgrading high-horsepower engines to electronic fuel injection, the FiTech 50005 Go Fuel Dual Pump Force Fuel System eliminates the need to drop or modify your vehicle’s factory fuel tank. JP Racing provides genuine FiTech motorsport components backed by expert UK technical support and fast dispatch.
