FiTech Go Fuel Dual 340 LPH In-Tank Fuel Pump Module with 2″ Fill
High-flow fuel delivery engineered for extreme performance fuel cell applications up to 1,600 HP.
Product Overview
The FiTech Go Fuel In-Tank Dual Pump Module (PN 50020) provides an all-in-one high-performance fuel delivery solution designed for fuel cells and custom tanks. Engineered to eliminate fuel starvation and keep high-output engines reliably fed, this module features twin 340 LPH electric fuel pumps capable of supporting up to 1,600 horsepower. Constructed with a precision CNC-machined billet aluminum mounting assembly, it features parallel supply and return ports alongside an integrated 2″ filler neck complete with a sealed billet fuel cap.
Built for maximum durability and versatility, the 50020 module utilizes premium Viton seals and internal nylon fuel lines for complete E85 ethanol compatibility. Its adjustable shaft assembly fits tank depths ranging from 6″ to 15″ (150mm to 380mm), while the standard 12-bolt fuel cell mounting pattern allows for seamless drop-in installation. Supplied complete with filter socks and dual -6 AN O-ring boss outlets, JP Racing delivers this race-ready fuel module straight from UK stock with full technical support.
Key Features
- ☑ Twin 340 LPH high-pressure electric fuel pumps supporting up to 1,600 HP
- ☑ Integrated 2″ fuel cell fill neck with sealed billet cap
- ☑ Precision CNC-machined billet aluminum top module plate
- ☑ Full E85 ethanol fuel compatibility with Viton seals
- ☑ Adjustable mounting shaft fits tank depths from 6″ to 15″
- ☑ Standard 12-bolt fuel cell mounting flange pattern
- ☑ Dual -6 AN ORB outlet ports for parallel fuel feed
Technical Specifications
| Manufacturer | FiTech EFI |
|---|---|
| Part Number | 50020 |
| Pump Flow Rate | Dual 340 LPH (680 LPH combined total) |
| Horsepower Rating | Up to 1,600 HP (Naturally Aspirated / Forced Induction) |
| Fuel Compatibility | Petrol, E85, Race Fuel |
| Filler Diameter | 2″ (50.8 mm) with threaded billet cap |
| Tank Depth Range | 6″ to 15″ (Adjustable cut-to-length shaft) |
| Mounting Flange | Standard 12-Bolt Fuel Cell Flange |
| Outlet Fitting Size | Dual -6 AN O-Ring Boss (ORB) |

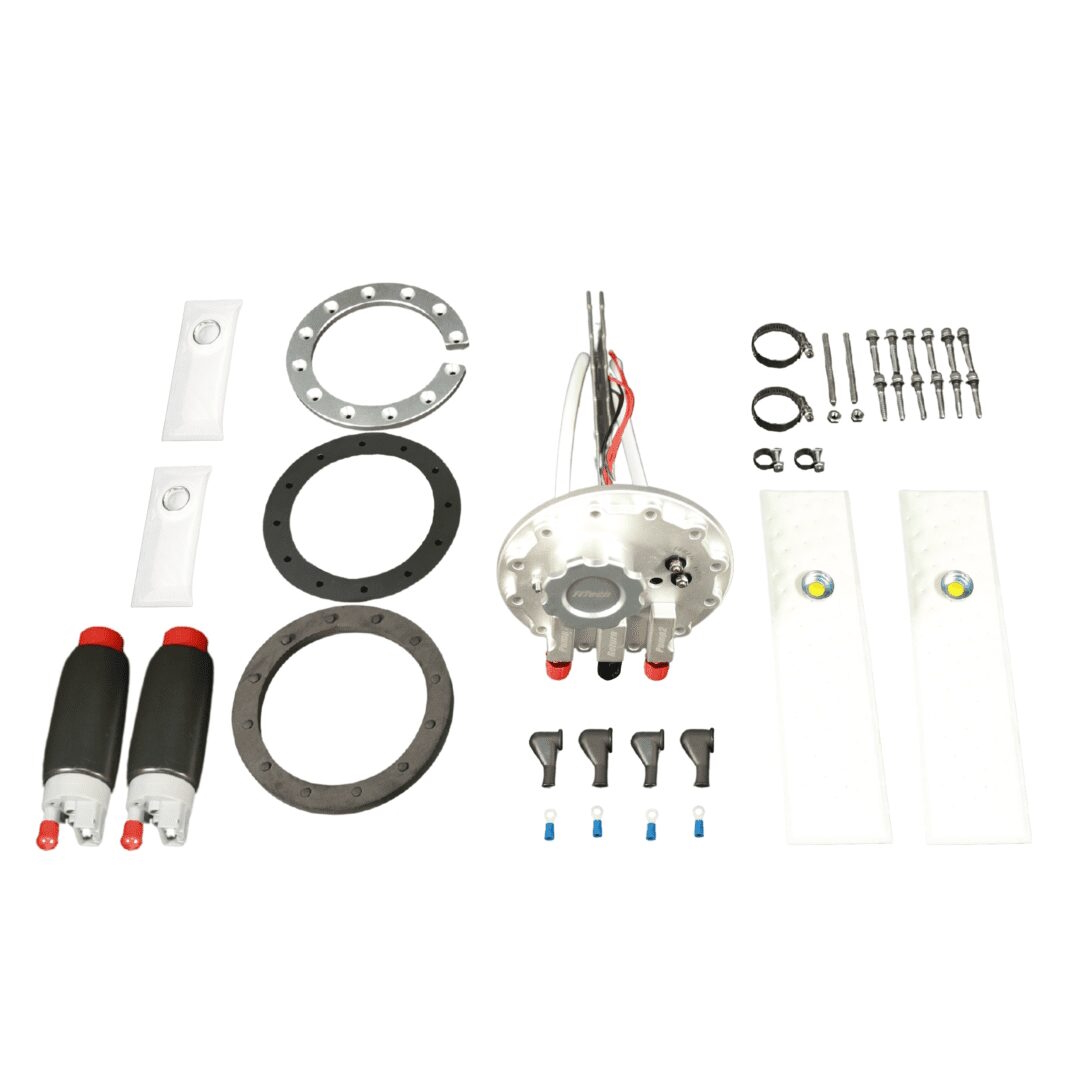

What’s Included in the Box
- FiTech CNC-machined billet aluminum dual-pump top module with integrated 2″ filler
- 2x 340 LPH in-tank high-flow fuel pumps
- Threaded billet filler cap with Viton seal
- Mounting gasket and 12-bolt fuel cell hardware
- Standard and large-capacity pre-filter socks
- Internal wiring harnesses and fuel lines
Designed and manufactured to the exacting standards of FiTech EFI, the 50020 Go Fuel dual pump module guarantees race-proven reliability and stable fuel delivery under extreme acceleration and cornering. As an authorized UK distributor, JP Racing provides genuine FiTech components with fast dispatch and expert technical advice for your build.
