Description
Part Number: 76215
FiTech Ultimate LS 500 HP EFI Master Kit with LS7 Short Intake
Complete standalone electronic fuel injection system engineered for GM LS engines up to 500 HP, featuring a short LS7 intake manifold, self-learning ECU, and Go-Fuel 340 LPH in-tank fuel pump module.
Key Features & Performance Benefits
- ☑ Complete master fuel injection kit supporting GM LS engine builds up to 500 HP
- ☑ Fabricated black anodized aluminum short LS7 intake manifold for compact hood clearance
- ☑ Billet 92mm throttle body providing high velocity 1250 CFM airflow
- ☑ Self-learning ECU with handheld color touch screen for easy plug-and-play setup
- ☑ Includes Go-Fuel 340 LPH in-tank fuel pump module (PN 50015) and 54001 fuel pressure regulator
- ☑ Sequential fuel injection with 36 lbs/hr injectors for precise fuel metering
Technical Specifications
| Brand | FiTech Fuel Injection |
|---|---|
| MPN | 76215 |
| Max Horsepower | 500 HP |
| Intake Port Style | GM LS7 Short Port Intake |
| Intake Material & Finish | Black Anodized Billet Aluminum |
| Throttle Body | 92mm Aluminum (1250 CFM) |
| Injector Size | 36 lbs/hr |
| Fuel Pump Module | Go-Fuel 340 LPH In-Tank Module (50015) |
| Fuel Pressure Regulator | FiTech 54001 External Regulator |
| Timing Control | Yes (Sequential Spark & Fuel) |

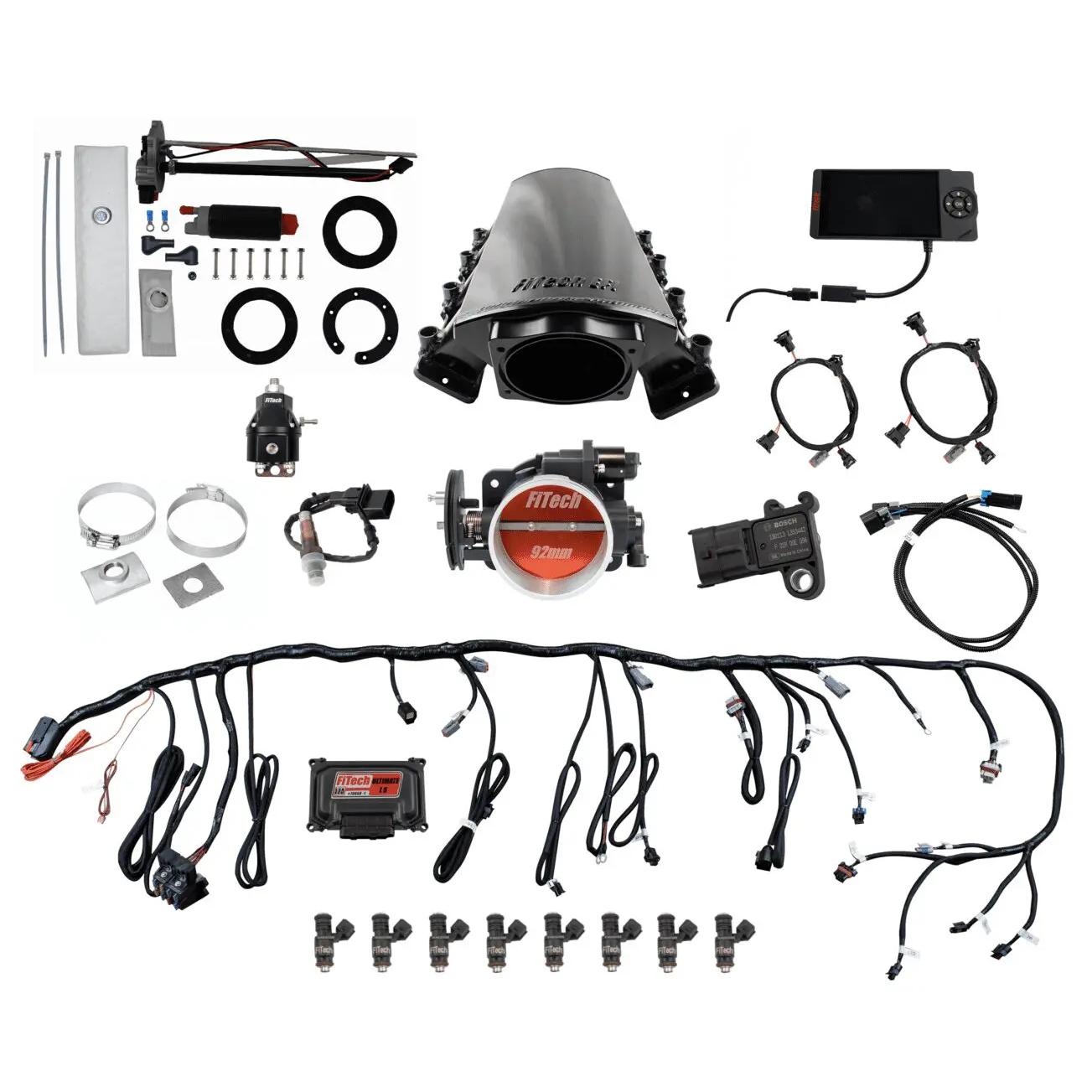

What’s Included in the Box
- FiTech Black Anodized LS7 Short Intake Manifold & High-Volume Fuel Rails
- 92mm Billet Aluminum Throttle Body
- Set of 36 lbs/hr High-Impedance Fuel Injectors
- Self-Learning ECU & Color Touch Screen Handheld Controller
- Complete Plug-and-Play Wiring Harness & Engine Sensors (O2, MAP, IAT, TPS)
- Go-Fuel 340 LPH In-Tank Pump Module (PN 50015) & Mounting Hardware
- FiTech 54001 Fuel Pressure Regulator
Engineered to eliminate the hassle of factory GM wiring and complex tuning, the FiTech 76215 Ultimate LS Master Kit delivers modern drivability and raw performance in one complete package. Backed by official UK stockist JP Racing, every kit includes expert technical guidance and fast UK mainland delivery.
