Description
Part Number: 70034
FiTech Ultimate LS 1000 HP EFI Induction System (LS3 / L92)
Self-tuning multi-port EFI system engineered for GM LS3/L92 engines delivering up to 1,000 HP with short aluminum intake and 102mm throttle body.
Key Features
- ☑ Complete self-tuning multi-port EFI system rated up to 1,000 horsepower
- ☑ High-flow black anodized short aluminum intake manifold for LS3/L92 rectangular ports
- ☑ 102mm 4-bolt cast aluminum throttle body for maximum airflow velocity
- ☑ High-capacity 80 lbs/hr fuel injectors for precise fuel atomisation under high output
- ☑ Handheld color touchscreen controller for intuitive, self-learning setup
- ☑ Sequential fuel and spark timing control fully compatible with boost or nitrous
Technical Specifications
| Brand | FiTech Fuel Injection |
|---|---|
| Manufacturer Part Number | 70034 |
| Max Horsepower Rating | 1,000 HP |
| Injection Style | Multi-Port EFI |
| Intake Port Type | GM LS3 / L92 Rectangular Port |
| Intake Height | 6.5″ (Top of Block) |
| Intake Finish | Black Anodized Aluminum |
| Throttle Body Diameter | 102mm (4-Bolt GM LS2 Flange) |
| Injector Size | 80 lbs/hr |
| Metering Style | Speed Density (MAP-N) |
| Transmission Control | No (Standalone Engine Control) |

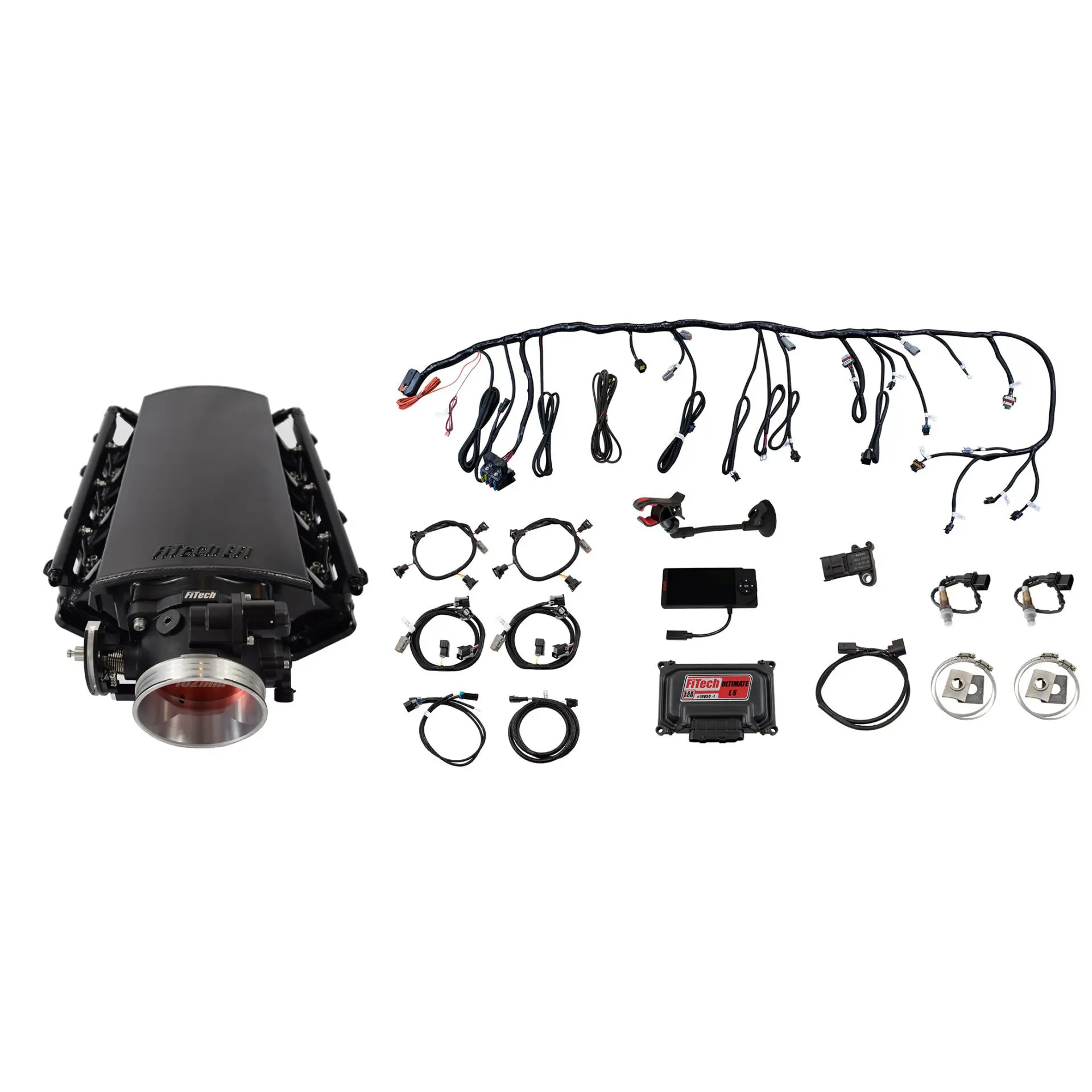

What’s Included in the Box
- FiTech Short Cast Aluminum LS3/L92 Intake Manifold (Black Finish)
- 102mm Cast Aluminum Throttle Body
- High-Volume Billet Aluminum Fuel Rails
- 80 lbs/hr Fuel Injectors (Set of 8)
- Self-Tuning Engine Control Unit (ECU)
- Color Touchscreen Handheld Calibration Controller
- Plug-and-Play Engine Wiring Harness
- Wideband Oxygen Sensor (O2), MAP, IAT, and TPS Sensors
FiTech Fuel Injection systems set the standard for high-performance LS engine swaps and race setups. At JP Racing, we supply genuine FiTech performance components supported by dedicated UK motorsport expertise and rapid nationwide dispatch.
