Description
Part Number: 70002

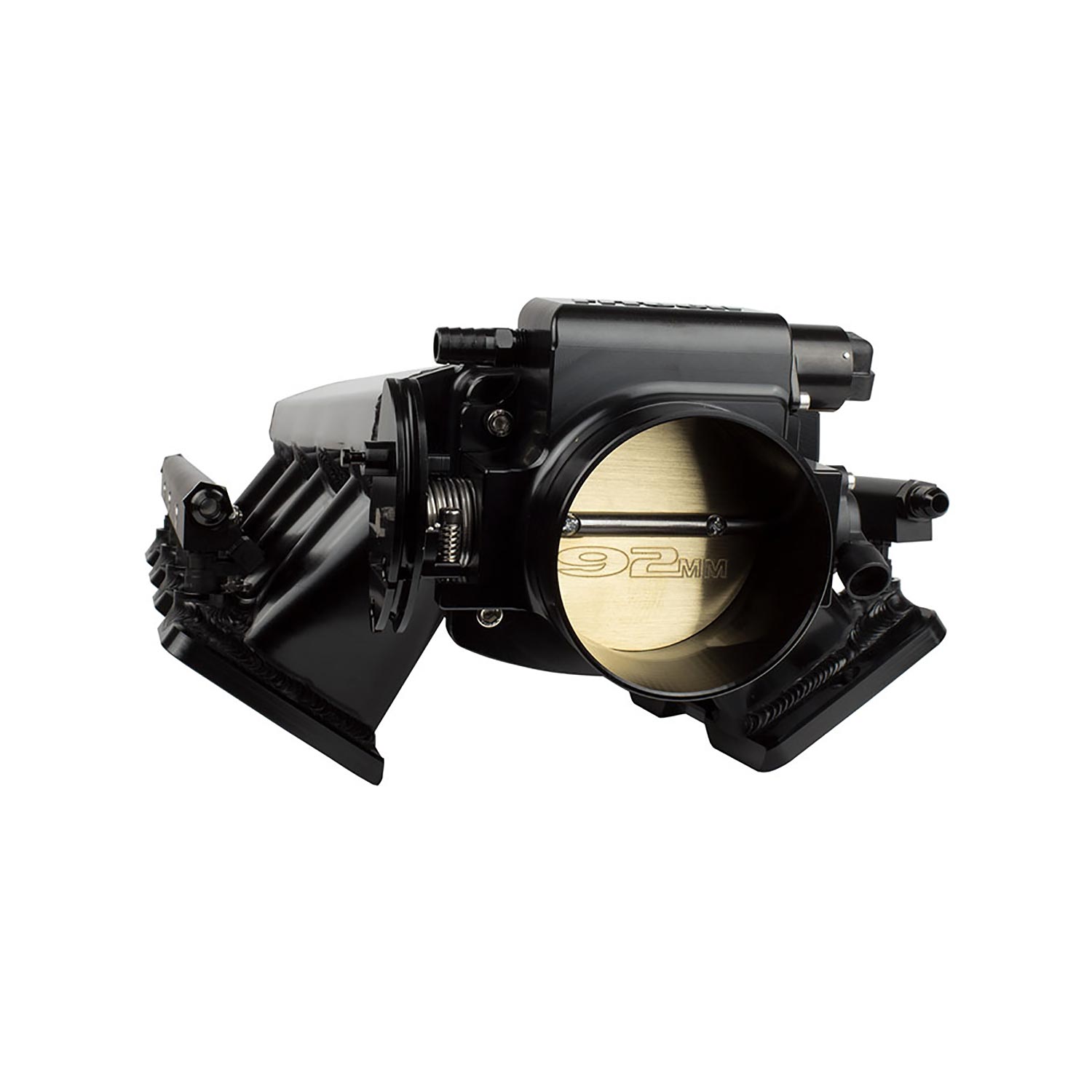

FiTech Ultimate LS 500HP EFI Induction Kit with Transmission Control
Engineered for GM cathedral port LS1, LS2, and LS6 engines, the FiTech Ultimate LS 500HP Kit delivers a complete self-tuning fuel injection solution paired with integrated electronic transmission control.
Key Features & Technical Highlights
- ☑ Self-tuning EFI induction system rated for cathedral port LS engines up to 500 HP.
- ☑ Integrated electronic transmission control for GM 4L60E, 4L65E, 4L70E, and 4L80E automatic gearboxes.
- ☑ Low-profile 6.5″ tall 3mm TIG-welded fabricated aluminum intake manifold in black anodized finish.
- ☑ High-flow cable-operated 92mm billet aluminum throttle body with parabolic inlet machining.
- ☑ Color touchscreen handheld controller with windshield mount for real-time tuning and data logging.
- ☑ High-volume billet fuel rails with AN fittings, fuel crossover line, and 36 lb/hr flow-matched fuel injectors.
- ☑ Bosch wideband O2 sensor control with self-learning ECU and individual cylinder trim capability.
Technical Specifications
| Brand | FiTech Fuel Injection |
|---|---|
| Part Number | 70002 |
| Engine Compatibility | GM Gen III / IV LS V8 (LS1, LS2, LS6 Cathedral Port) |
| Power Rating | Up to 500 HP |
| Throttle Body | 92mm Cable-Operated Billet Aluminum |
| Intake Manifold Height | 6.5″ (Block surface to top) |
| Transmission Control | GM 4L60E / 4L65E / 4L70E / 4L80E / 4L85E |
| Fuel Injector Rating | 36 lb/hr Flow-Matched |
| Crank & Cam Sensor Support | 24X / 58X Crank, LS1-LS3 Cam Sensors |
What’s Included in the Box
- Fabricated 92mm Black Anodized Aluminum Intake Manifold
- 92mm Cable-Operated Billet Throttle Body with TPS & IAC Sensors
- High-Volume Billet Fuel Rails with AN Crossover & Hardware
- 8x 36 lb/hr Flow-Matched Fuel Injectors
- Self-Learning LS ECU & Main Wiring Harness (includes coil pack sub-harness)
- Color Touchscreen Handheld Controller with Cable & Windshield Mount
- GM Electronic Transmission Control Harness
- Bosch Wideband O2 Sensor & Stainless Bung Kit
- Coolant Temperature, Intake Air Temperature, and 3 BAR MAP Sensors
- Intake Manifold O-Ring Gaskets & Fasteners
FiTech Fuel Injection components are designed to deliver modern, hassle-free performance for custom engine swaps and street machines. As a premier UK stockist, JP Racing provides fast domestic delivery and dedicated technical support to help you complete your LS build with confidence.
