Description
Part Number: 150-08-555

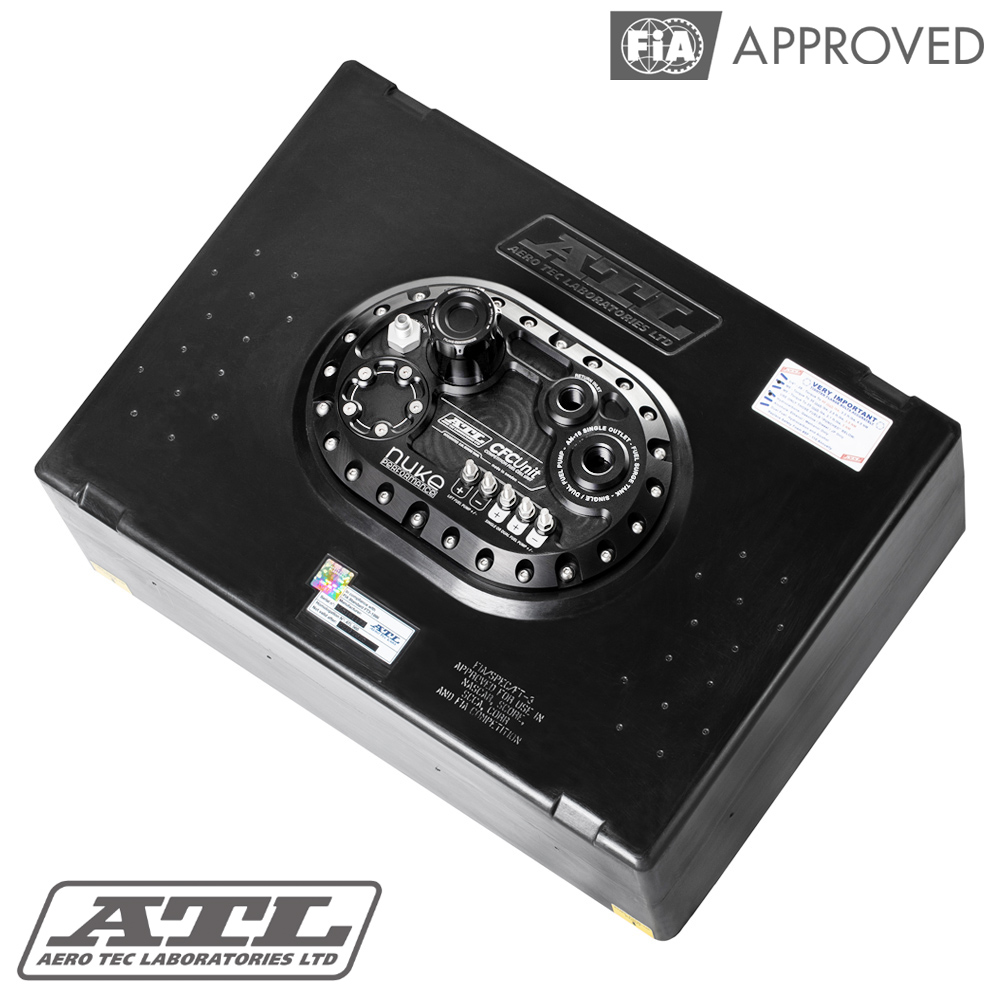

ATL 45L Saver Cell with Nuke Performance Brushless CFC Unit
An all-in-one motorsport fuel delivery solution combining a 45-liter FIA FT3-1999 certified ATL Saver Cell with Nuke Performance’s high-profile brushless Competition Fuel Cell (CFC) Unit and integrated 2-liter surge tank.
Key Features
- ☑ FIA FT3-1999 certified 45-liter (11.9 US gal) tough plastic alloy ATL Saver Cell with yellow baffle foam.
- ☑ High-profile Brushless CFC Unit with integrated 2.0-liter surge tank to eliminate fuel starvation under extreme lateral G-forces.
- ☑ Oversized AN-10 ORB fuel outlet combining internal pumps into a single main supply line.
- ☑ Integrated AN-8 ORB fuel return port and AN-6 (3/4 UNF) anti-rollover safety ventilation valve.
- ☑ Heavy-duty electrical pass-through connectors optimized for brushless and high-draw fuel pump electronics.
- ☑ Standardized 6×10″ 24-bolt pattern flange for drop-in fuel cell installation.
Technical Specifications
| Brand | Nuke Performance |
|---|---|
| Part Number (MPN) | 150-08-555 |
| Fuel Cell Type | ATL Saver Cell (Wellcell) |
| Capacity | 45 Litres / 11.9 Gallons |
| Homologation | FIA FT3-1999 Approved |
| CFC Unit Specification | High-Profile Brushless Competition Fuel Cell Unit |
| Integrated Surge Tank | 2.0 Litres Volume |
| Fuel Outlet Fitting | AN-10 ORB |
| Fuel Return Fitting | AN-8 ORB |
| Vent Valve Fitting | AN-6 (3/4 UNF) with Rollover Valve |
| Fuel Compatibility | Petrol / Gasoline, E85 / Ethanol, Methanol |
| Mounting Flange | 6×10″ Standard 24-Bolt Pattern |
What’s Included in the Box
- • 1x 45L FIA FT3 ATL Saver Cell Wellcell with Yellow Baffle Foam
- • 1x Nuke Performance High-Profile Brushless CFC Unit with Integrated 2L Surge Tank
- • 1x AN-10 ORB Fuel Outlet Fitting
- • 1x AN-8 ORB Fuel Return Fitting
- • 1x AN-6 Anti-Rollover Vent Valve Assembly
- • Viton Seal Gasket & Stainless Steel 24-Bolt Mounting Hardware Kit
Designed and precision-engineered in Sweden, Nuke Performance fuel systems are trusted worldwide in high-horsepower motorsport applications. JP Racing is proud to support UK builders with expert advice, official Nuke Performance components, and fast UK delivery.
