Description
Part Number: 50-1005

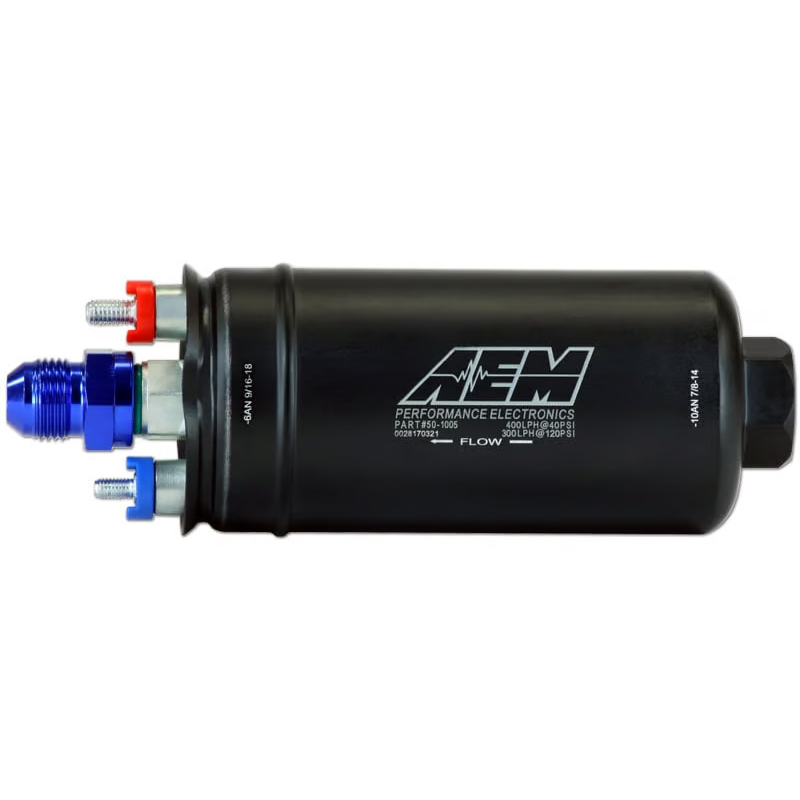

AEM 400LPH High Flow Inline Fuel Pump (044 Style)
Delivering up to 400 LPH flow rate and supporting up to 1,200 BHP, the AEM 50-1005 high-pressure inline fuel pump combines proven Bosch 044-style mounting dimensions with high-performance female AN O-ring port connections.
Key Features
- ☑ High-volume flow rating of 400 LPH at 40 PSI fuel pressure

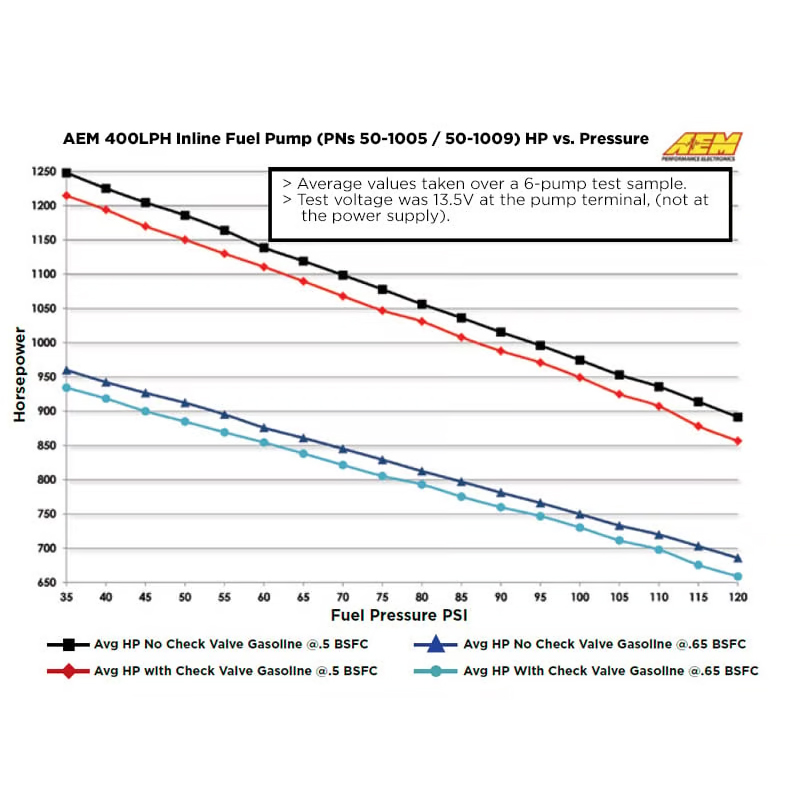

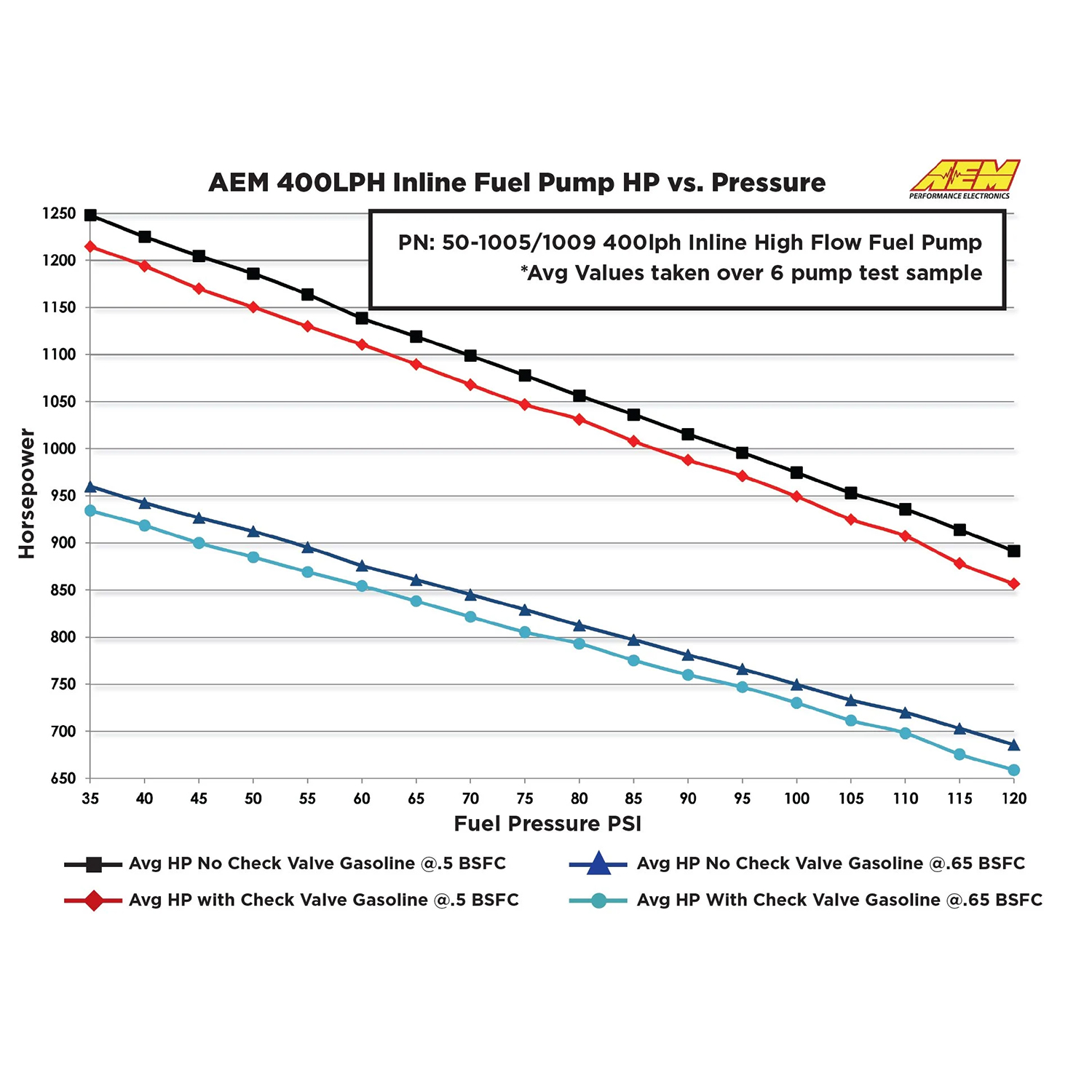

- ☑ Supports up to 1,200 HP naturally aspirated and 860 HP at 30 PSI boost

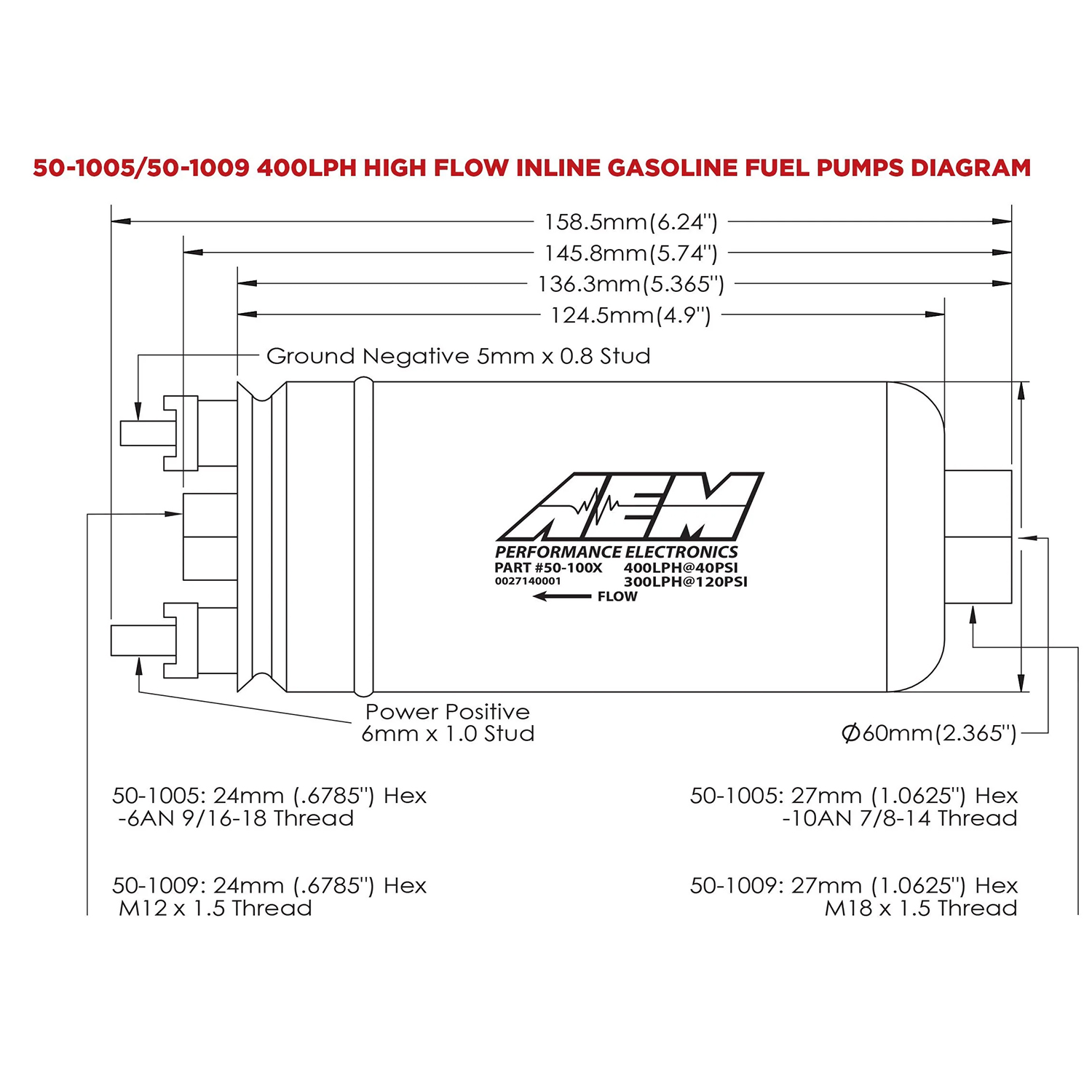

- ☑ Standard 044 style external physical body size for easy retrofit and mounting

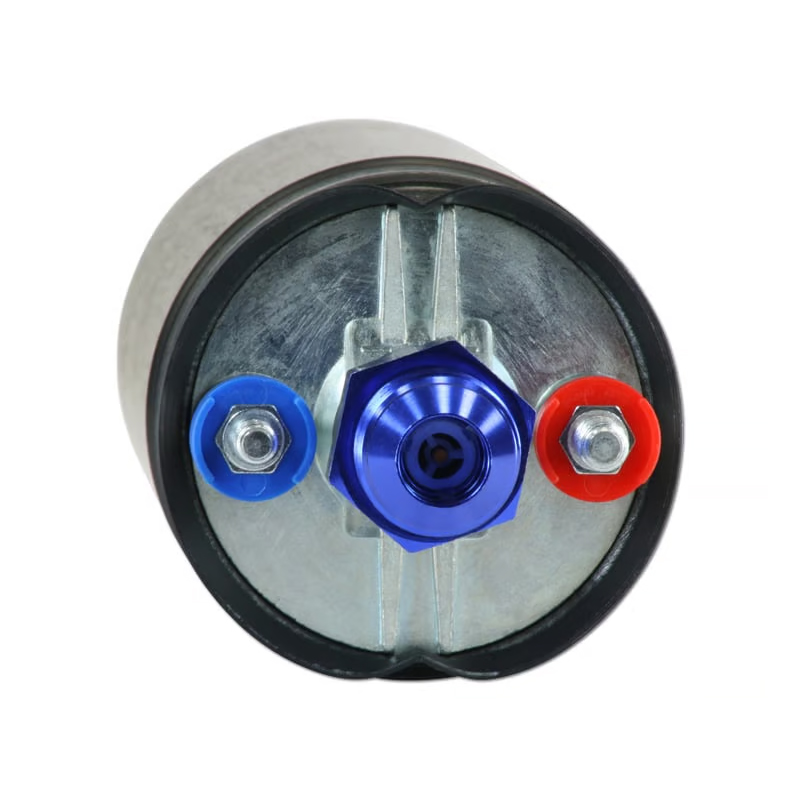

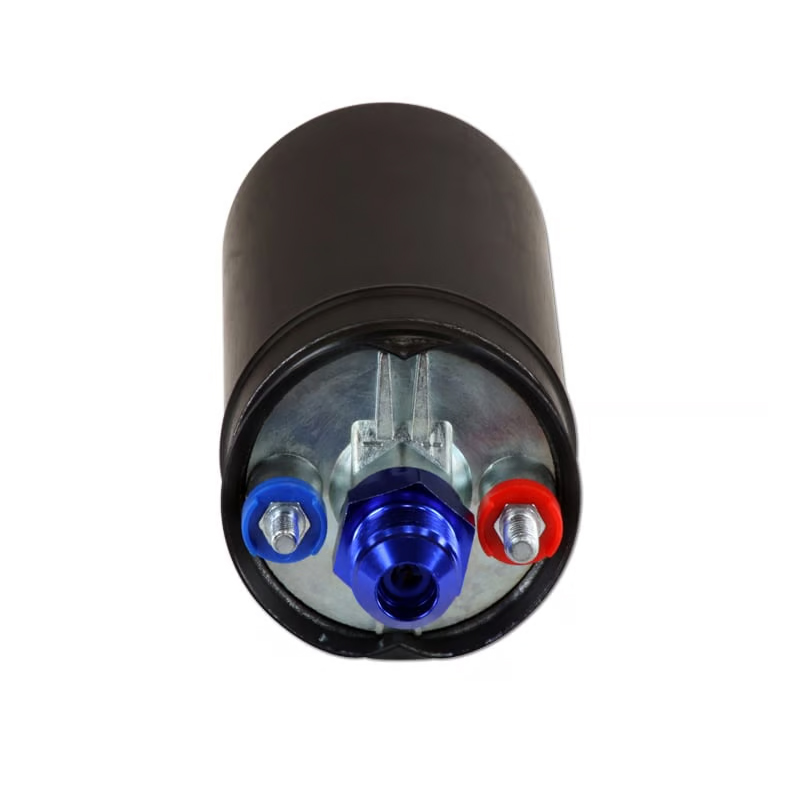

- ☑ Female -10 AN ORB inlet and -6 AN ORB outlet ports for secure leak-free sealing
- ☑ Compatible with standard unleaded gasoline and ethanol blends up to E85/E90
- ☑ Includes male -6 to -8 AN adapter fitting with integrated high-pressure check valve
Technical Specifications
| Brand | AEM Performance Electronics |
|---|---|
| MPN | 50-1005 |

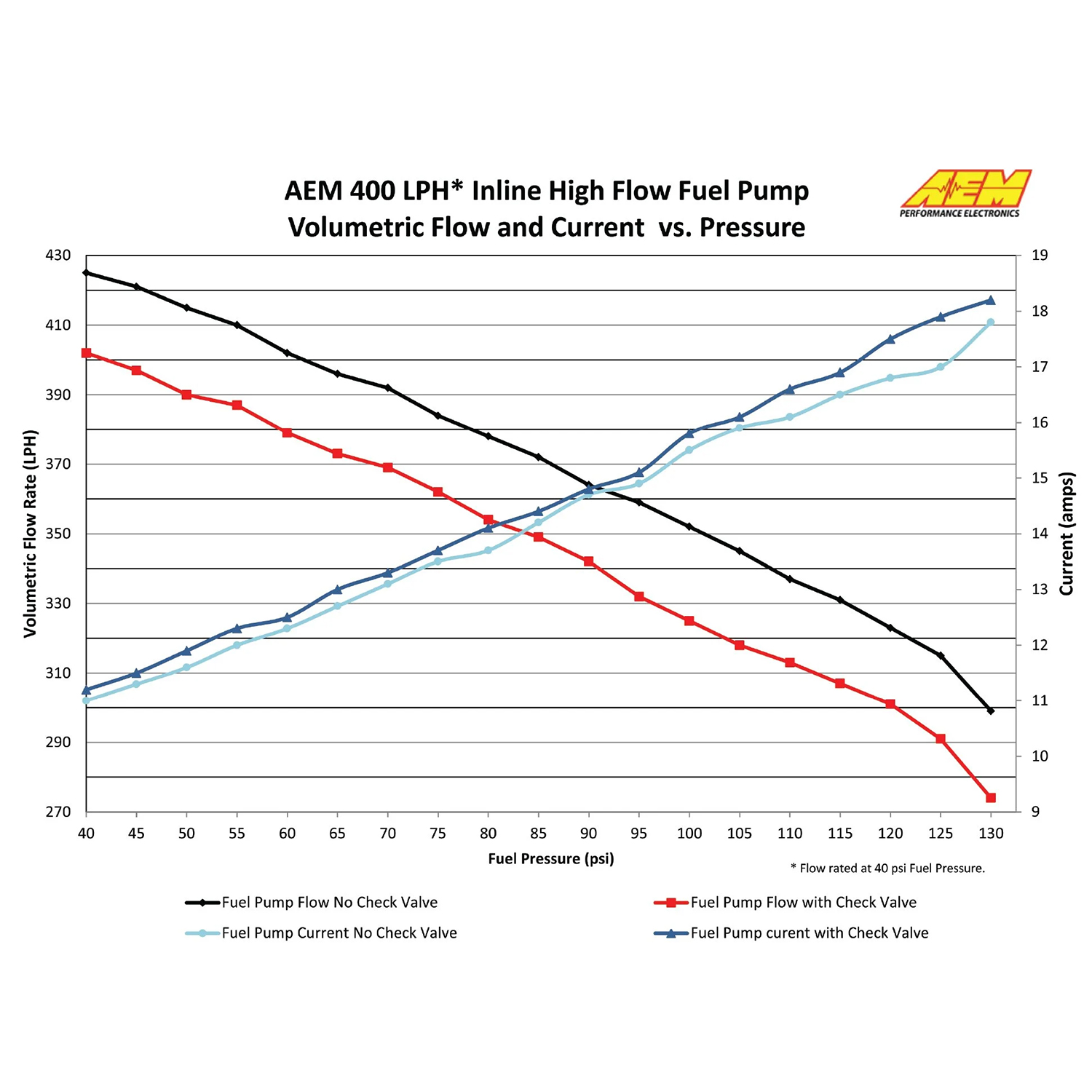

| Pump Flow Rate | 400 LPH @ 40 PSI / 340 LPH @ 73 PSI / 270 LPH @ 120 PSI |
| Inlet Fitting Size | -10 AN Female ORB (O-Ring Port) |
| Outlet Fitting Size | -6 AN Female ORB (O-Ring Port) |
| Max Operating Pressure | 120 PSI |
| Operating Voltage | 10V – 18V DC (13.5V Nominal) |
| Current Draw | 10.68A @ 40 PSI / 17.13A @ 120 PSI (with check valve) |
| Fuel Compatibility | Gasoline, E85, E90 Ethanol Blends |

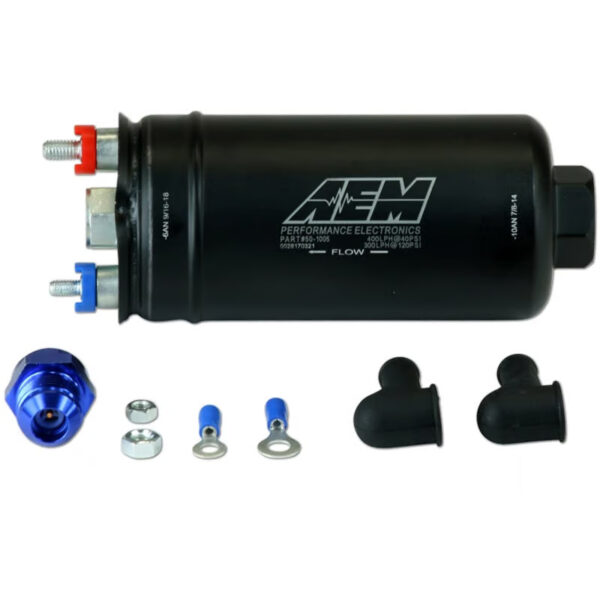

What’s Included in the Box
- 1 x AEM 50-1005 400LPH High Flow Inline Fuel Pump
- 1 x Male -6 AN to -8 AN Discharge Adapter Fitting with Check Valve
- 2 x Electrical Stud Nuts & Washers
- 2 x Protective Rubber Terminal Boots
Engineered to meet the relentless demands of competitive motorsport, AEM fuel systems are built for consistency and extreme duty cycles. When you purchase your AEM 50-1005 fuel pump through JP Racing, you benefit from genuine manufacturer stock, expert UK technical guidance, and rapid delivery across the UK.
