Description
Part Number: AF49-1041

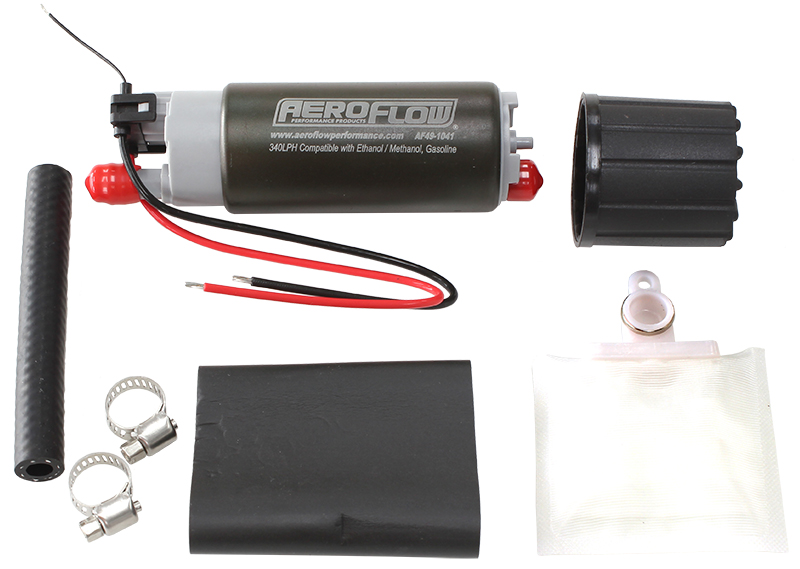

Aeroflow 340LPH E85 High-Flow In-Tank Fuel Pump
High-performance 340 LPH electric fuel pump engineered for high-horsepower forced induction and naturally aspirated applications operating on unleaded, E85, or methanol fuels.
Key Features
- ☑ High flow output of 340 LPH (89.8 GPH) at 43.5 PSI pressure
- ☑ Fully ethanol and E85 compatible for modern high-output motorsport builds
- ☑ Compact 130mm body length and 40mm diameter for direct in-tank fitment
- ☑ Supports high-power applications rated up to 800 horsepower
- ☑ Durable turbine impeller design ensures quiet operation and consistent delivery
- ☑ Integrated internal check valve prevents fuel backflow and maintains line pressure
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Part Number | AF49-1041 |
| Flow Rate | 340 LPH (89.8 GPH) @ 43.5 PSI (3.0 Bar) |
| Power Rating | Up to 800 HP |
| Body Dimensions | 130mm Length, 40mm Diameter |
| Outlet Size | 3/8″ (9.6mm) Barb with Internal Check Valve |
| Inlet Size | 7/16″ (11mm) Screen Inlet |
| Fuel Compatibility | Unleaded Petrol, E85, Ethanol, and Methanol |
| Pump Design | In-Tank Electric Turbine Impeller |
What’s Included in the Box
- 1x Aeroflow 340LPH E85 In-Tank Fuel Pump (AF49-1041)
- 1x Universal Nylon Filter Sock / Inlet Strainer
- 1x Plug-and-Play Wiring Harness Pigtail Connector
Engineered by Aeroflow Performance for demanding motorsport and street performance applications, the AF49-1041 in-tank fuel pump offers exceptional reliability and high-flow capability under extreme load. Order with complete confidence from JP Racing, your trusted UK stockist, providing full technical guidance and fast UK nationwide delivery.
