Description
FiTech Go Fuel 255 LPH In-Tank Regulated Fuel Pump Module
Streamline your EFI conversion with this single-line 255 LPH in-tank fuel pump assembly featuring an integrated 58 PSI (4 bar) fuel pressure regulator.
Overview & Engineering
The FiTech 50017 Go Fuel In-Tank Regulated Pump Module simplifies fuel delivery for fuel-injected engine builds by eliminating the need for a separate external return line. Featuring a high-efficiency 255 LPH submerged fuel pump and an internal 4 bar (58 PSI) regulator, this unit provides smooth, consistent fuel pressure directly from inside the tank—keeping the pump cool, quiet, and protected against fuel starvation during hard cornering or acceleration.

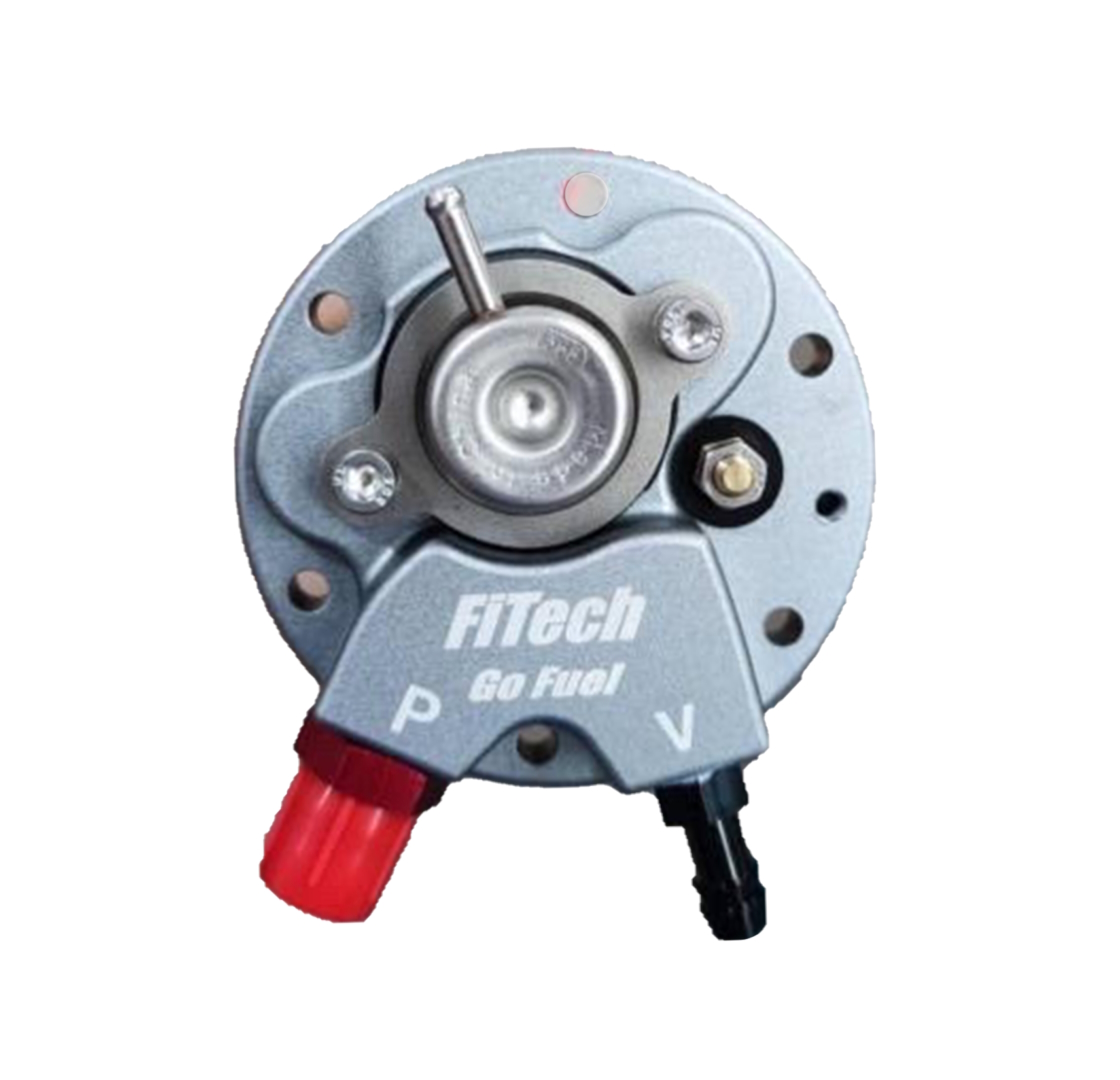

Designed with a low-profile billet top flange and adjustable mounting bracket, the 50017 assembly fits most EFI-ready fuel tanks with depth dimensions from 6.5″ to 15″. It features an AN-6 outlet port to easily connect to your high-pressure fuel line setup.
Key Features
- ☑ High-flow 255 LPH fuel pump supports up to ~600 HP EFI engines
- ☑ Integrated 4 bar (58 PSI) internal fuel pressure regulator
- ☑ Single-line returnless fuel system design simplifies routing
- ☑ Adjustable mounting depth fits tanks from 6.5″ to 15″ deep
- ☑ Low-profile billet aluminum mounting flange with AN-6 pressure port
- ☑ Submerged pump operation reduces noise and running temperatures
Technical Specifications
| Brand | FiTech Fuel Injection |
|---|---|
| Manufacturer Part Number (MPN) | 50017 |
| Flow Rate | 255 LPH (Liters Per Hour) |
| Operating Pressure | 58 PSI (4 bar) regulated |
| Fuel System Style | Single-Line / Returnless In-Tank Assembly |
| Tank Depth Range | 6.5″ to 15″ (165 mm to 381 mm) |
| Outlet Fitting | AN-6 (-6 AN O-Ring Boss) |
| Engine Power Rating | Up to 600 HP (Naturally Aspirated EFI) |

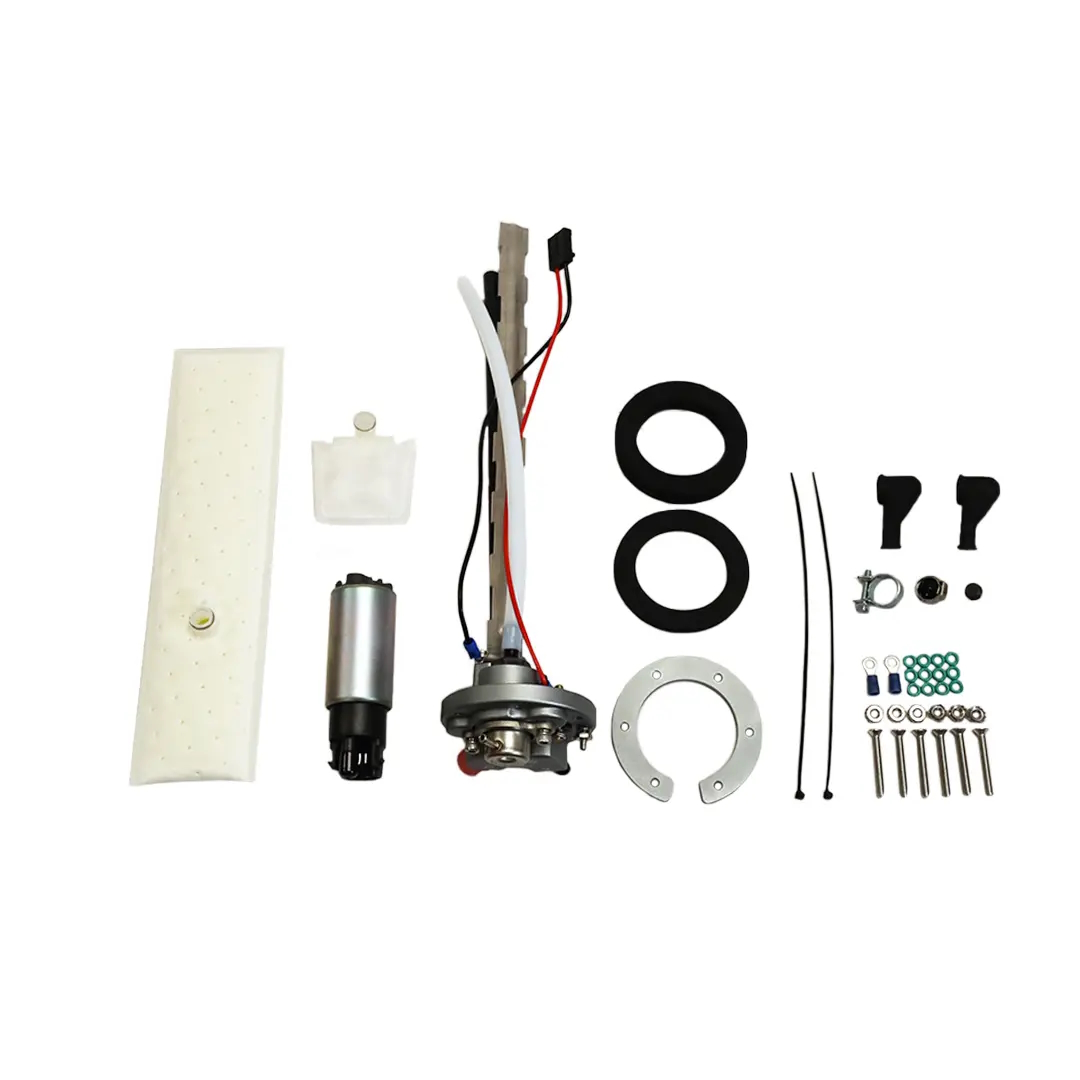

What’s Included in the Box
- FiTech 50017 255 LPH In-Tank Fuel Pump Assembly
- Integrated 58 PSI (4 bar) Fuel Pressure Regulator
- Low-Profile Billet Mounting Flange & Cut-to-Fit Shaft Bracket
- High-Flow Suction Strainer Sock Filter
- Tank Gasket & Mounting Hardware
Engineered to meet the stringent demands of modern classic conversions and track-focused machinery, FiTech fuel components offer uncompromising performance. Order your FiTech 50017 module today from JP Racing for expert UK motorsport support and fast UK shipping.
