Description
Part Number: 12-815-1

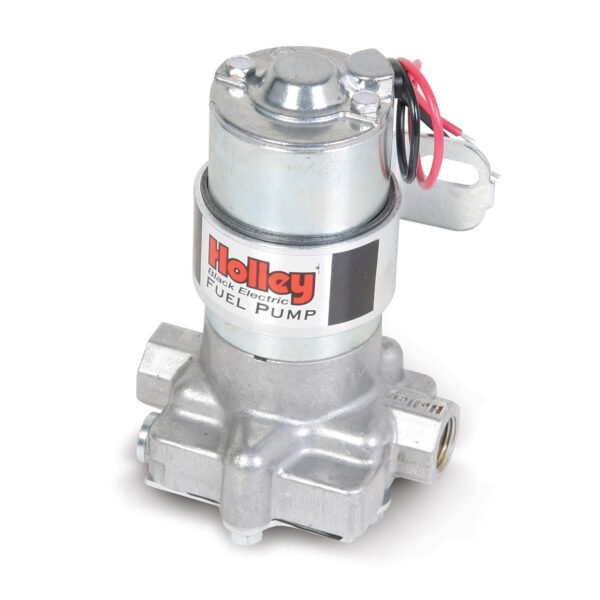

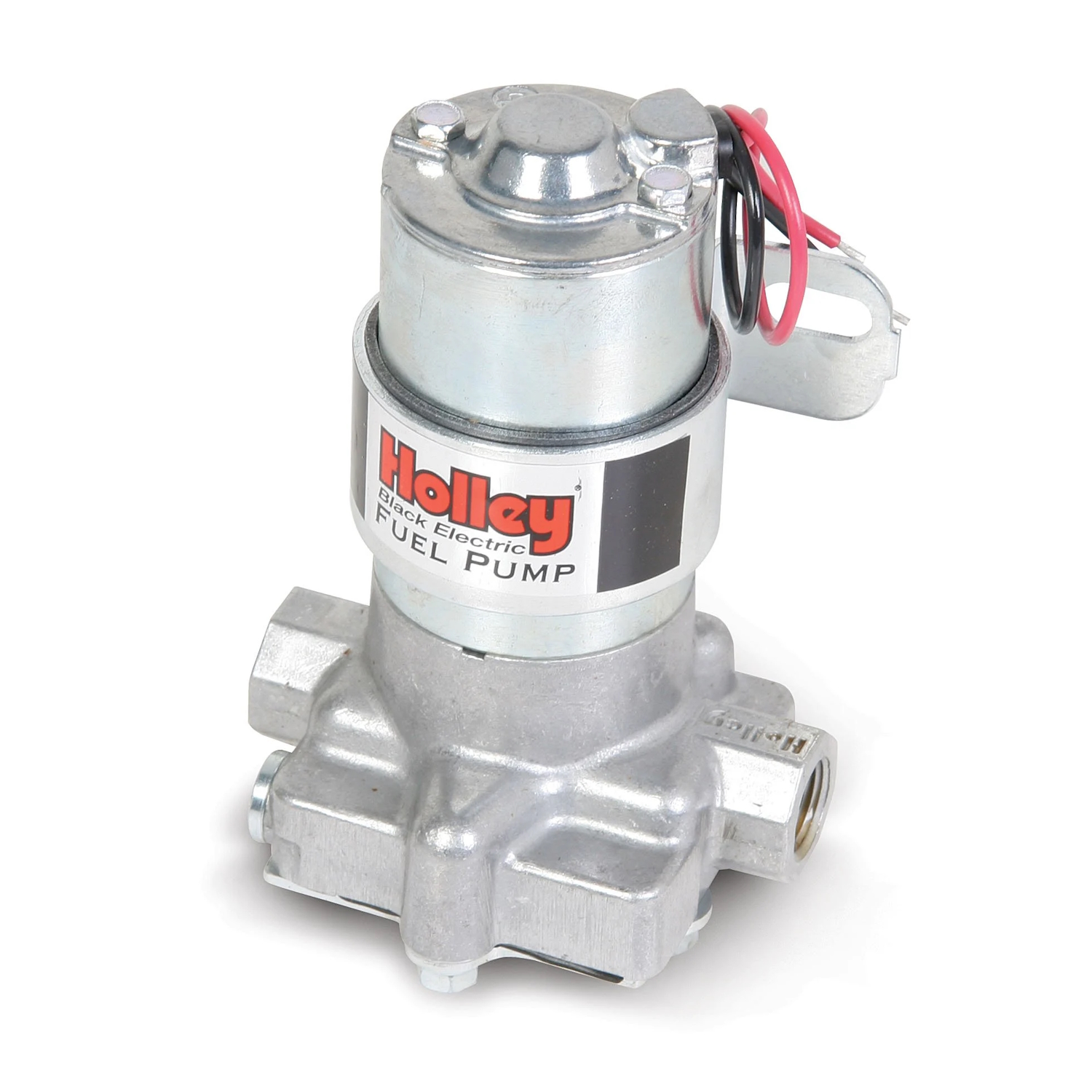

Holley Black® 140 GPH High-Output Electric Fuel Pump
Engineered for high-horsepower street and strip carbureted applications requiring consistent, high-volume fuel delivery without pulsation.
Key Features
- ☑ High free-flow capacity of 140 GPH (530 LPH) and 120 GPH (454 LPH) at 9 PSI.
- ☑ Time-proven rotor/vane design tolerant of contaminated fuels with zero pulsation.
- ☑ Tumble-polished billet look with lightweight aluminum construction weighing only 3 lbs.
- ☑ 3/8″ NPT female inlet and outlet ports for high-flow plumbing integration.
- ☑ Compatible with gasoline, alcohol, and methanol fuels for street and competition engines.
- ☑ Externally accessible pressure relief valve preset up to 14 PSI max pressure.
Technical Specifications
| Brand | Holley |
|---|---|
| Part Number | 12-815-1 |

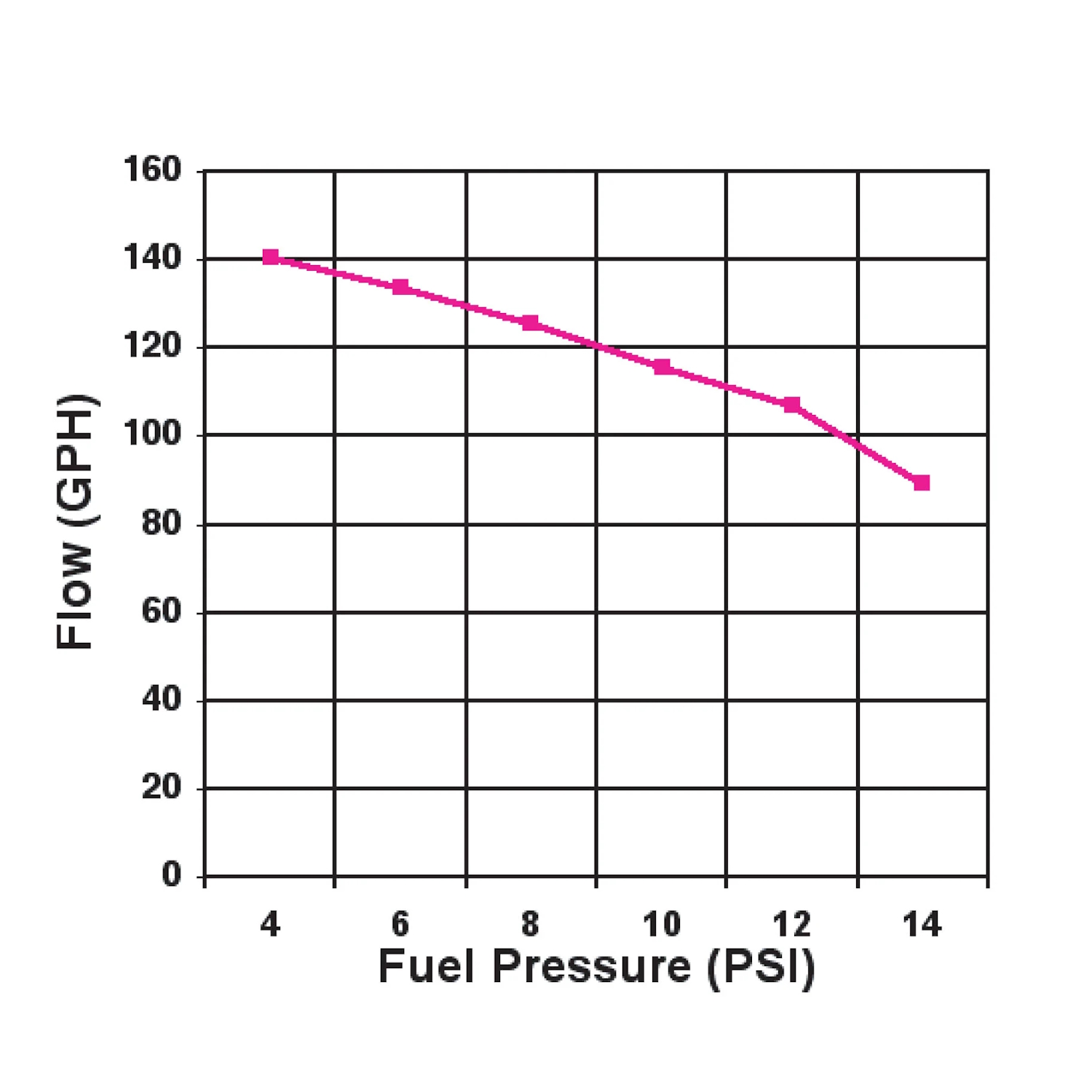

| Free Flow Rate | 140 GPH (530 LPH) |
| Flow Rate @ 9 PSI | 120 GPH (454 LPH) |
| Maximum Pressure | 14 PSI |
| Inlet / Outlet Size | 3/8″ NPT Female |
| Fuel Compatibility | Gasoline / Alcohol / Methanol |
| Fuel System Type | Carbureted Only (Requires Fuel Pressure Regulator) |
| Power Rating | Up to 750 HP (Naturally Aspirated) |
| Current Draw | 4 Amps (12V) |
| Material & Finish | Aluminum / Tumble Polished Billet Look |
What’s Included in the Box
- • 1x Holley Black® 140 GPH Electric Fuel Pump (PN 12-815-1)
- • 1x Heavy-Duty Mounting Bracket and Hardware
Built on Holley’s legendary fuel system heritage, the Black® 140 GPH electric fuel pump provides unmatched performance and durability for high-demand carbureted engines. As an authorized supplier, JP Racing offers full UK technical advice, genuine product support, and fast dispatch on all Holley motorsport components.
