RADIUM Fuel Pressure Regulator with Bosch Regulator, 3 BAR / 43.5 PSI

Description

RADIUM Fuel Pressure Regulator with Bosch Regulator, 3 BAR / 43.5 PSI

RADIUM Fuel Pressure Regulator with Bosch Regulator, 3 BAR / 43.5 PSI

Overview

Description: Fuel Pressure Regulator with 3 BAR Bosch Regulator
Part Number: 20-0010-00
Supplier: Radium Engineering

This universal Radium Fuel Pressure Regulator (FPR) is built around the common OEM Bosch regulator inserts. These Bosch units are found in many applications, including:

Audi 1.8L Turbo
Ford Falcon BA, BF, FG XR6 Turbo
Ford Territory Turbo
FPV F6 Typhoon Turbo
Volkswagen 1.8L Turbo
Etc.

Alternatively, Radium offers two GENUINE Bosch regulator tops: 3.0 Bar (43.5 psi) static and 4.0 Bar (58.2 psi) static. These Bosch regulator tops are vacuum referenced with a 1:1 ratio and are NOT adjustable.
The compact Radium Engineering billet aluminium FPR housing provides a convenient package for plumbing and mounting. The regulator top is secured with a stainless steel snap ring and can easily be removed using snap-ring pliers. The two main high pressure ports are threaded for 6AN ORB. The 6AN male return port is integrated into the housing. There is also a 1/8 NPT female port for a gauge, pressure transducer, etc. Each FPR housing is laser etched and anodized for a superior finish.
NOTE: The exact min, static, and max pressures are influenced by the flow rate of the fuel pump being used. These FPRs are tested using a common Walbro 255lph pump. If a higher flowing pump is used, the minimum pressure ratings may be higher than advertised. For applications with more pump flow, consider a high flow fuel pressure regulator.

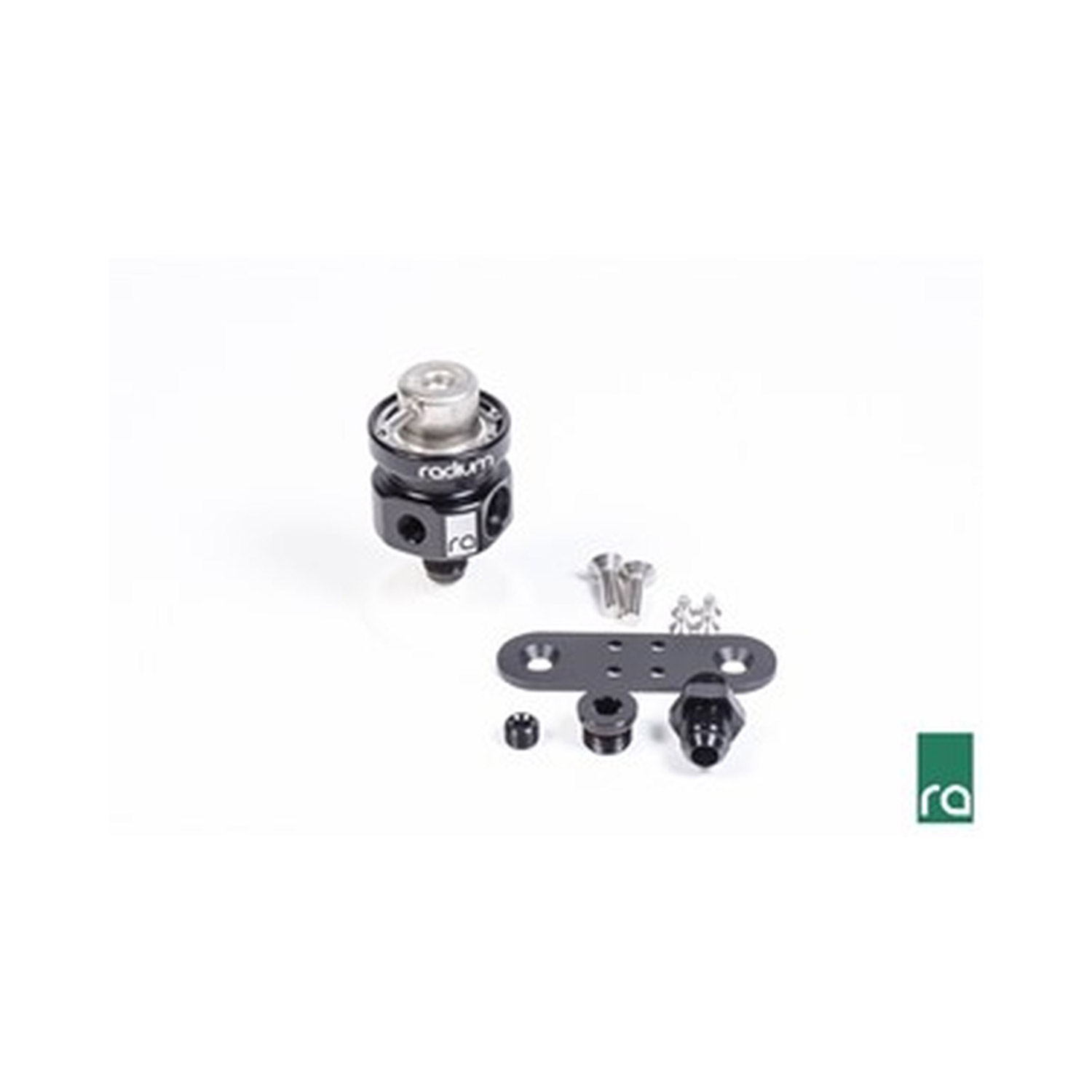

Included

Billet 6061 Aluminium Housing
-6AN Male Adapter Fitting
-6AN ORB Plug Fitting
-1/8-27 NPT Port Plug
Integrated -6AN Male Return Port
Stainless Steel Mounting Hardware
Stainless Steel Snap Retaining Ring
Anodised Aluminium Mounting Bracket

Options

If a regulator top is not needed (already have one from another source), see Radium RAD20-0014. This option includes everything needed with the exception of the regulator top
RAD20-0010-00 and RAD20-0010-01: These come assembled with the Bosch regulator unit installed in the housing
Fuel Pressure Gauge: Radium also offers an optional fuel pressure gauge. This secures to the front 1/8″-27 NPT port of the fuel pressure regulator housing.

All Radium products are carefully planned with thorough R&D and designed in-house using the latest computer simulation and modeling techniques. Extensive testing and evaluation ensures the performance of Radium products exceed consumers expectations. For these reasons, top motorsports competitors and enthusiasts worldwide rely on Radium Engineering products.
