Description
Part Number: 200-10-101

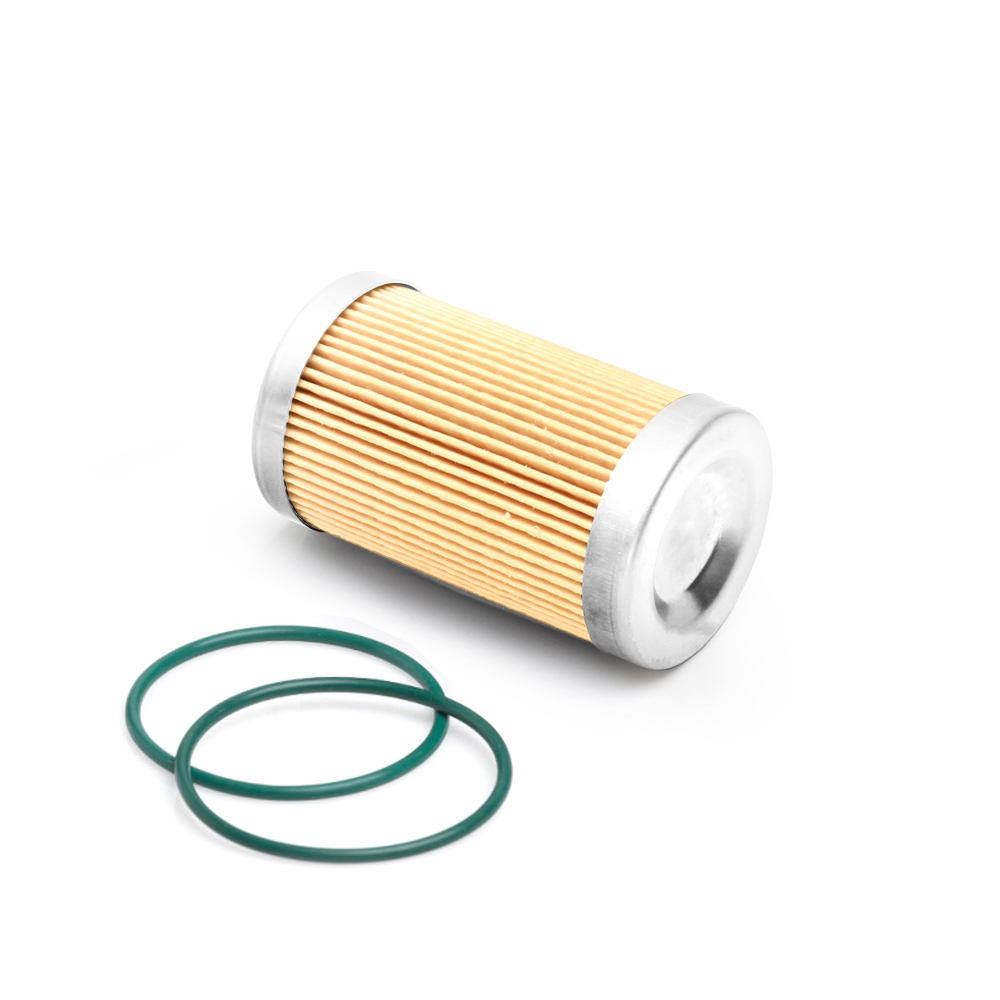

Nuke Performance 10 Micron Cellulose Fuel Filter Element Insert
High-flow 10-micron replacement cellulose insert designed for Nuke Performance fuel filters, delivering superior filtration for high-performance petrol applications.
Key Features
- ☑ High-density 10-micron cellulose filtering element offering exceptional particle protection
- ☑ Over 60 sq. inches (387 cm²) of filtering surface area for high dirt-holding capacity
- ☑ Premium stainless steel end caps for optimal structural stability under pressure
- ☑ Exceptional flow capacity supporting up to 750 LPH with minimal pressure drop (≈0.15 BAR)
- ☑ Includes 2x replacement Viton O-rings to ensure a complete, leak-free seal upon installation
Technical Specifications
| Brand | Nuke Performance |
|---|---|
| MPN | 200-10-101 |
| Filter Media | Cellulose (10 Micron) |
| End Cap Material | Stainless Steel |
| Fuel Compatibility | Gasoline / Petrol (Not suitable for E85 / Ethanol / Methanol) |
| Flow Capacity | 750 LPH |
| Filtering Area | 60 sq. in (387 cm²) |
| Length | 75 mm (2.95″) |
| Diameter | 42 mm (1.65″) |
| Weight | 47 g (0.1 lb) |
| Working / Max Pressure | 8 BAR (116 PSI) / 21 BAR (305 PSI) |
| Pressure Drop | ≈0.15 BAR (≈2.17 PSI) |
What’s Included in the Box
- 1x Nuke Performance 10-Micron Cellulose Fuel Filter Element Insert (200-10-101)
- 2x Replacement Viton O-rings
Nuke Performance designs and manufactures world-class motorsport fuel components engineered for extreme motorsport demands. As an authorized UK stockist, JP Racing provides technical support, genuine Nuke Performance products, and fast UK dispatch to keep your race or performance car fuel system running flawlessly.
