FITECH Ultimate LS Standalone ECU & Wiring Harness Kit

Description

FITECH Ultimate LS Standalone ECU & Wiring Harness Kit

FITECH Ultimate LS Standalone ECU & Wiring Harness Kit

If you’re considering utilizing a factory intake, injectors, and cable operated throttle body, FiTech’s Ultimate LS standalone self-learning ECUs will get your engine ready for optimal performance. This self-learning Ultimate LS ECU is the best solution for a standalone LS swap and replaces the OEM computer and harness. This kit is dedicated to LS or similar engines with crank and cam sensors. The Ultimate LS standalone kit will self-learn to most cam swaps. Usually only very large cam grinds will require additional tuning in the system. Easily tuned for even the most novice tuner, this kit includes a touch-screen controller for easy setup and configuration.

Application: LS or similar engines with crank and cam sensors.
Small Block V8 GEN. III/IV LS-based Chevrolet street and performance engines. Contains a 3 BAR MAP sensor for power adder applications that supports up to 30 PSI of boost.
Note: This kit does not work with drive by wire throttle bodies and variable valve timing. These engines can be modified to remove these components.

Overview

Description: Ultimate LS Standalone ECU & Wiring Harness Kit
Supplier: FiTech
Part Number: 70050
Weight: 11.5 lbs
Dimensions: 14 × 7.5 × 10.5 inches

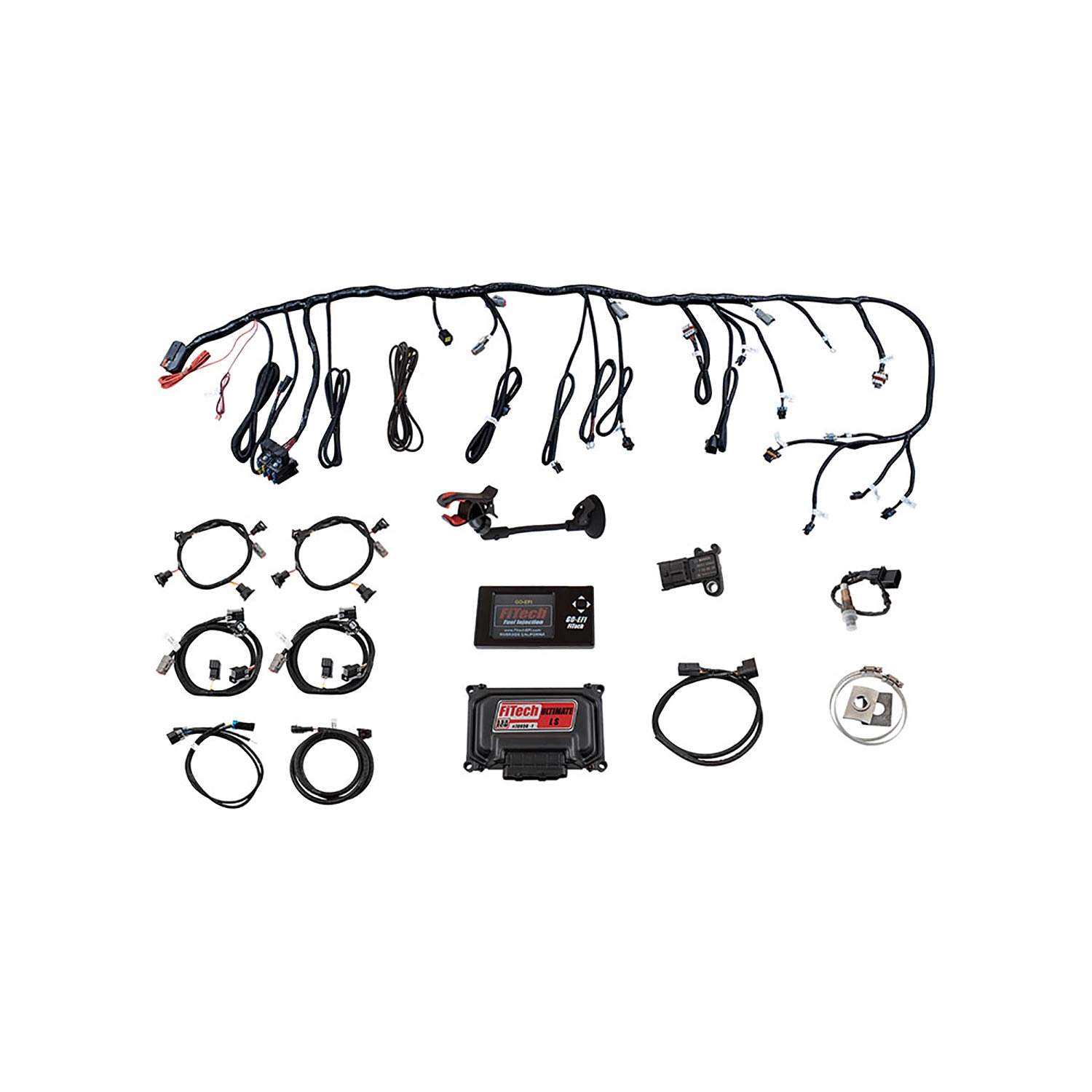

Contents

LS ECU
Plug and play primary wiring harness
Hand-held controller with colour touch screen and cable
Windshield mount for touch screen controller
3 BAR MAP Sensor
O2 Sensor
Stainless Oxygen Sensor bung kit (Clamp or weld on)
Two programmable fan control outputs

Features

Self-learning ECU with touch screen controller for easy setup and configuration
Sequential fuel and spark control with individual cylinder trim
3 BAR MAP sensor automatically detects up to 30 psi boost
Stainless O2 Sensor bung (clamp or weld on)
24X and 58X crank and cam compatible
Two programmable fan control outputs
Tach output driver for most tachometers (5V)
Output driver for most speedometers
Compatible with car and truck coils
On the fly programmable target AFR and timing (if desired)
Fuel pump relay output
Custom wire harness (uses factory coil pack sub harness)
Knock sensor control

Not legal for use on pollution controlled vehicles: FiTech’s Ultimate LS System is not approved for use on emission controlled vehicles. This system is designed to control the EFI and ignition on LS based engines being retrofit into older vehicles that do not require emission controls.
FiTech have been manufacturing fuel injection and fuel delivery solutions since 2013 and have established themselves in the market as a serious performance contender, especially on big block racing and drag applications over 1000 horsepower. Their extensive range can cater for most custom fuelling applications, which is backed by their new technical support department.
