Description
Part Number: 93102
FiTech Go EFI 4 600 HP Matte Black Master Kit with Inline Fuel Pump & CDI Box
Complete 4-barrel throttle body electronic fuel injection conversion system with integrated ECU, external fuel delivery, and Go Spark CDI ignition control for engines up to 600 HP.
Key Features & Performance Highlights
- ☑ Complete All-In-One Conversion: Converts carbureted 4-barrel square-bore engines up to 600 HP to self-tuning electronic fuel injection.
- ☑ Matte Black Cast Finish: Sleek 4-barrel 850 CFM throttle body featuring an integrated ECU, eliminating messy firewall wiring.
- ☑ Included Inline Fuel Delivery: Supplied with an external 255 LPH fuel pump, 40 ft of 3/8″ AN-6 hose, billet fuel filters, and mounting fittings.
- ☑ Go Spark CDI Box: Includes FiTech Go Spark capacitive discharge ignition box for maximum spark energy and timing control capabilities.
- ☑ Self-Learning EFI Technology: Speed-density ECU automatically learns and optimizes fuel maps using wet annular discharge and four 80 lb/hr injectors.
- ☑ Handheld Touchscreen Display: Color touchscreen controller with windshield suction mount for quick initial setup and real-time engine monitoring.
Technical Specifications
| Brand | FiTech Fuel Injection |
|---|---|
| Manufacturer Part Number | 93102 |
| Maximum Horsepower Rating | 600 HP (Naturally Aspirated) |
| Throttle Body Mounting Flange | 4-Barrel Square Bore (4150 Pattern) |
| Throttle Body Finish | Satin / Matte Black Cast Aluminum |
| Airflow Rating | 850 CFM |
| Injector Quantity & Size | 4 x 80 lbs/hr Injectors |
| Metering Style & MAP Sensor | Speed Density (2.5 BAR Internal MAP) |
| Fuel Pump Flow Rate | 255 LPH External Inline Pump |
| Ignition Control | Timing Control Capable with Included Go Spark CDI Box |
| Wideband O2 Sensor | Bosch 4.2 LSU Wideband Sensor with Weld-In Bung |

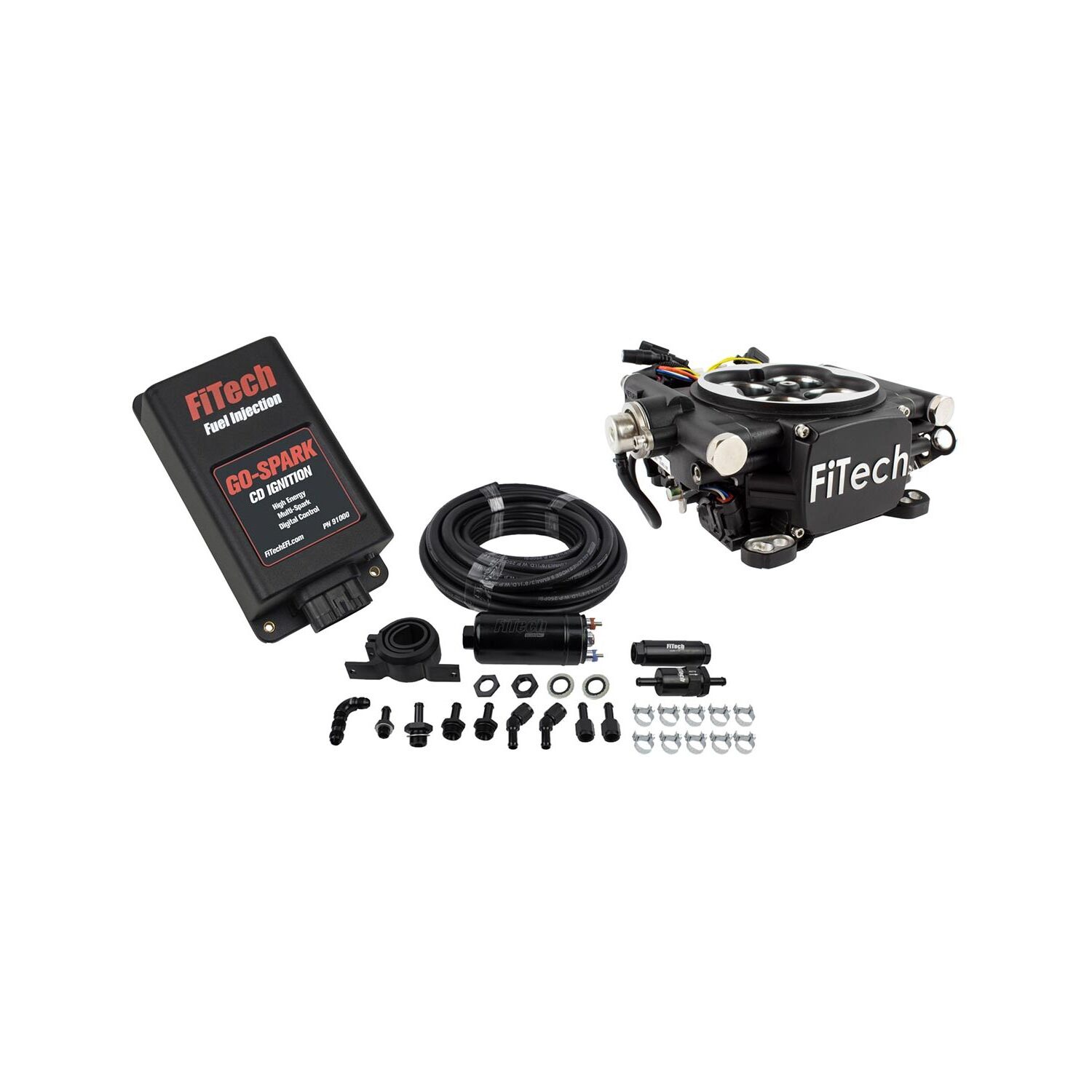

What’s Included in the Box
- FiTech 4-Barrel 850 CFM Throttle Body Assembly in Matte Black Finish
- Integrated Self-Tuning Throttle-Body Mounted ECU
- Handheld Touchscreen Controller with Windshield Suction Mount & Harness
- FiTech Go Spark CDI Capacitive Discharge Ignition Box & Wiring Kit
- 255 LPH External High-Pressure Inline Electric Fuel Pump
- 40 Feet of AN-6 / 3/8″ High-Pressure Fuel Line with Hose End Fittings
- 100-Micron Billet Pre-Filter & 10-Micron Billet Post-Filter
- Bosch 4.2 Wideband Oxygen Sensor & Weld-In Stainless Steel Bung
- Coolant Temperature Sensor (CTS), TPS, IAC, & Main Engine Harness
- Intake Flange Gaskets, Mounting Hardware, & AN Fuel Fittings
Engineered for outstanding street and track reliability, the FiTech 93102 Go EFI 4 Master Kit offers everything needed to convert your carbureted setup to smooth, reliable fuel injection. Order directly from JP Racing for expert UK technical support, full manufacturer backing, and fast UK dispatch.
