Description
Part Number: 50019
FiTech Go Fuel In-Tank Returnless Fuel Pump Module (2″ Fill)
Engineered for high-performance EFI conversions and fuel cell installations, the FiTech Go Fuel Returnless In-Tank Fuel Pump Module supports up to 800 HP with clean, quiet, and reliable fuel delivery.
Key Features & Highlights
- ☑ High Output Flow: High-performance 340 LPH electric fuel pump supports naturally aspirated and forced induction engines up to 800 HP.
- ☑ Returnless Design: Integrated 58 PSI internal fuel pressure regulator simplifies line routing by eliminating the need for a return line from the engine bay.
- ☑ Integrated 2″ Filler Assembly: Features a CNC-machined billet aluminum 2-inch diameter fuel fill neck with a sealed cap for direct filling into fuel cells or custom tanks.
- ☑ Universal Tank Fitment: Adjustable cut-to-fit mounting bracket accommodates tank depths from 7″ to 16″ (178 mm to 406 mm).
- ☑ Billet Aluminum Flange: Precision CNC-machined top plate bolts directly to standard 12-bolt fuel cell flanges or custom tank cutouts.
- ☑ E85 & Race Fuel Compatible: Built with chemical-resistant fuel hose and Viton seals for ethanol and pump gasoline compatibility.
- ☑ Leak-Free Ports: Machined parallel -6AN ORB (O-Ring Boss) outlet and vent ports ensure effortless line routing and secure sealing.
Technical Specifications
| Brand | FiTech Fuel Injection |
|---|---|
| Manufacturer Part Number (MPN) | 50019 |
| Product Line | Go Fuel In-Tank Modules |
| Pump Flow Rate | 340 LPH (approx. 90 GPH) |
| Maximum Engine Power | Up to 800 HP |
| Pressure Regulator | Internal 58 PSI (Returnless Setup) |
| Filler Neck Diameter | 2 Inches (with billet cap) |
| Port Fitting Specs | -6AN ORB (O-Ring Boss) |
| Tank Depth Range | 7″ to 16″ (178 mm to 406 mm) |
| Mounting Pattern | Standard 12-Bolt Fuel Cell Flange / Custom Tank |
| Fuel Compatibility | Gasoline, E85, Flex Fuel |

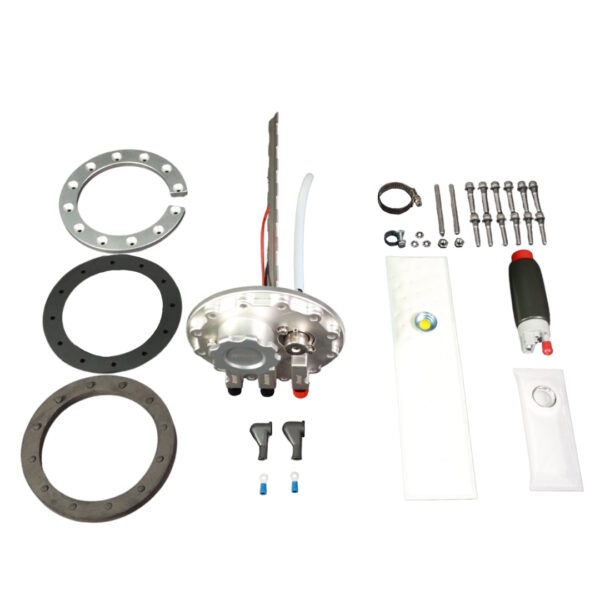

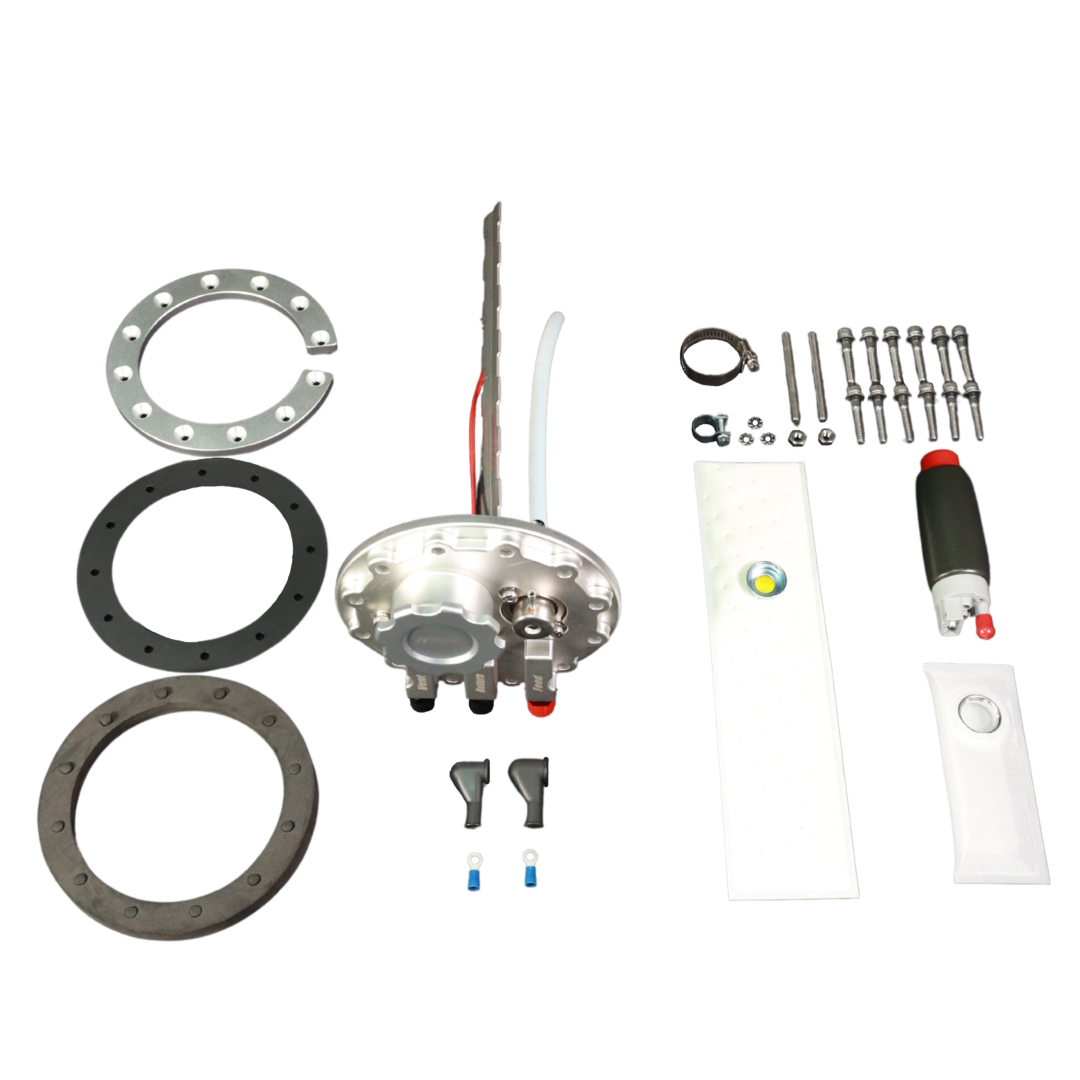

What’s Included in the Box
- FiTech CNC Billet Aluminum Top Module Plate with 2″ Filler Neck & Cap
- High-Flow 340 LPH Electric In-Tank Fuel Pump
- Internal 58 PSI Fuel Pressure Regulator
- Adjustable Cut-to-Fit Pump Mounting Bracket Assembly
- -6AN ORB Adapter Fittings & Sealed Electrical Terminals
- Standard (11 sq. in.) and Large Capacity (35 sq. in.) Filter Socks
- Fuel Cell Mounting Gasket & Hardware
Built to rigorous motorsport standards, FiTech Go Fuel components offer exceptional reliability and ease of installation for road, track, and drag applications. Order your FiTech 50019 module from JP Racing for dedicated UK technical support and fast UK nationwide dispatch.
