Description
Part Number: 1050.48.14.14.4

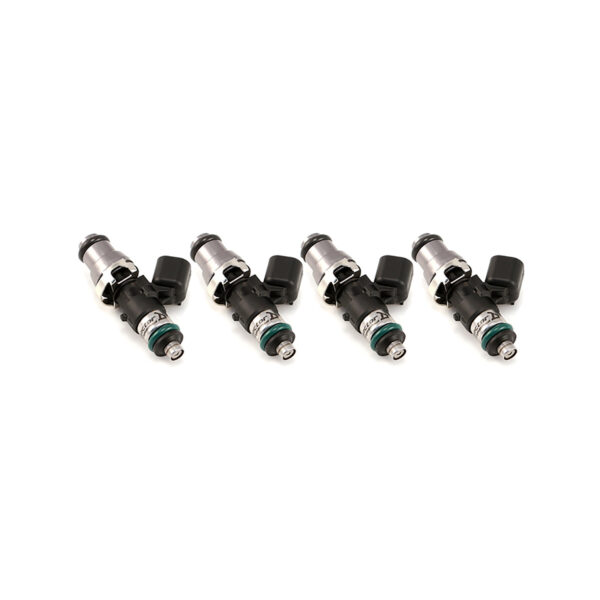

Injector Dynamics ID1050x Fuel Injector Set (1065cc – Set of 4)
Motorsport-grade high-impedance fuel injectors with 14mm top adaptors and 48mm body length for precision tuning.
Key Features
- ☑ Nominal flow rate of 1065cc/min @ 3.0 Bar (43.5 psi) using gasoline
- ☑ Built-to-spec motorsport injector developed in partnership with Bosch Motorsport
- ☑ Full compatibility with all known fuels including E85, ethanol, and methanol
- ☑ Corrosion-resistant stainless steel internal construction for extended service life
- ☑ Compact 48mm body with 14mm grey top adaptors and 14mm lower O-rings
- ☑ Exceptional linear flow delivery down to low pulse widths with stable operation up to 10.0 Bar
Technical Specifications
| Manufacturer | Injector Dynamics |
|---|---|
| Part Number | 1050.48.14.14.4 |
| Injector Series | ID1050x / ID1050-XDS |
| Nominal Flow Rate | 1065 cc/min @ 3.0 Bar (43.5 PSI) |
| Max Differential Fuel Pressure | 10.0 Bar (145.0 PSI) |
| Injector Body Length | 48mm (Compact) |
| Fuel Rail O-Ring Diameter | 14mm (0.551″) |
| Manifold O-Ring Diameter | 14mm (0.551″) |
| Electrical Connector | USCAR |
| Quantity | Set of 4 Injectors |
What’s Included in the Box
- 4 x Injector Dynamics ID1050x 1065cc Fuel Injectors (PN 1050.48.14.14.4)
- 4 x Grey 14mm Upper Adaptor Tops (Pre-installed)
- 4 x Upper and Lower Viton O-Rings
- Injector Characterization Data & Calibration Parameters
Engineered for high-performance motorsport and modified road applications, Injector Dynamics injectors set the benchmark for cylinder-to-cylinder consistency, low pulse-width linearity, and tuning reliability. At JP Racing, we supply genuine Injector Dynamics hardware backed by expert advice and fast UK despatch.
