Part Number: AF77-1025BLK

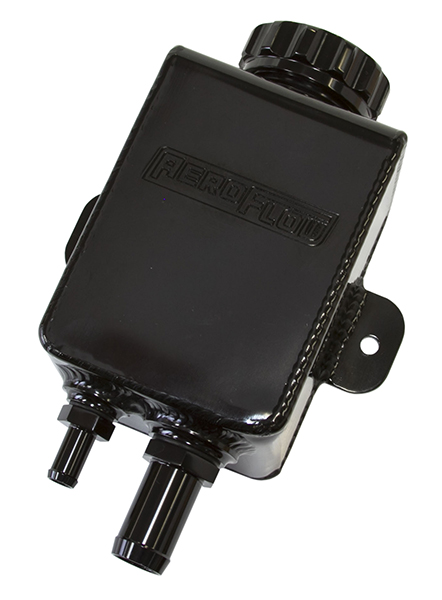

Aeroflow Fabricated Square Power Steering Reservoir – Black Anodised
Upgrade your engine bay or vehicle conversion with Aeroflow’s premium 810ml 5051 aluminium power steering fluid reservoir, engineered to eliminate aeration and fluid foaming in high-performance applications.
Key Features & Performance Benefits
- ☑ High-grade 5051 fabricated aluminium construction with durable black anodised finish
- ☑ Integrated internal baffles act as an air separator to eliminate fluid aeration and prevent overflow
- ☑ Return-side restrictor mechanism designed to eliminate foaming during high-RPM operation
- ☑ Includes 38mm (1-1/2″) CNC-machined billet aluminium filler cap with secure O-ring seal
- ☑ Dual female ORB bottom ports (-10 ORB supply & -6 ORB return) for flexible AN hose integration
- ☑ Supplied with hose barb adapters (3/8″ and 3/4″) for traditional rubber hose plumbing
Technical Specifications
| Manufacturer | Aeroflow Performance |
|---|---|
| Part Number | AF77-1025BLK |
| Material | 5051 Fabricated Aluminium |
| Finish | Black Anodised |
| Fluid Capacity | 810ml (27 fl oz) |
| Dimensions (H x W x L) | 120mm x 85mm x 85mm |
| Filler Cap Size | 38mm (1-1/2″) Billet Cap |
| Port Threads | -10 ORB (Bottom Outlet) & -6 ORB (Bottom Inlet) |
| Included Barb Sizes | 9.52mm (3/8″) & 19mm (3/4″) Hose Barbs |
What’s Included in the Box
- 1x Aeroflow Fabricated Square Power Steering Reservoir (Black Anodised)
- 1x 38mm (1-1/2″) Billet Aluminium Screw Cap
- 1x -10 ORB to 19mm (3/4″) Hose Barb Fitting
- 1x -6 ORB to 9.52mm (3/8″) Hose Barb Fitting
Engineered to meet the stringent demands of track, drift, and street performance builds, Aeroflow Performance components deliver uncompromised quality. When you buy from JP Racing, you benefit from our official UK distributor stock, technical support, and fast nationwide shipping to keep your project moving forward.
