Description
Part Number: 1700

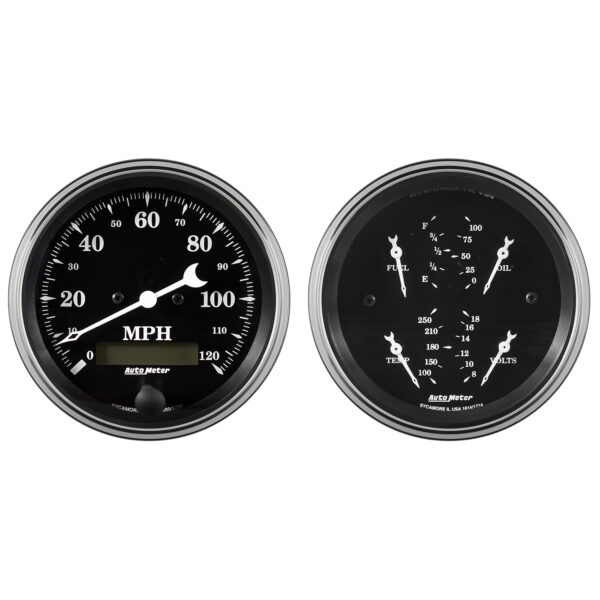

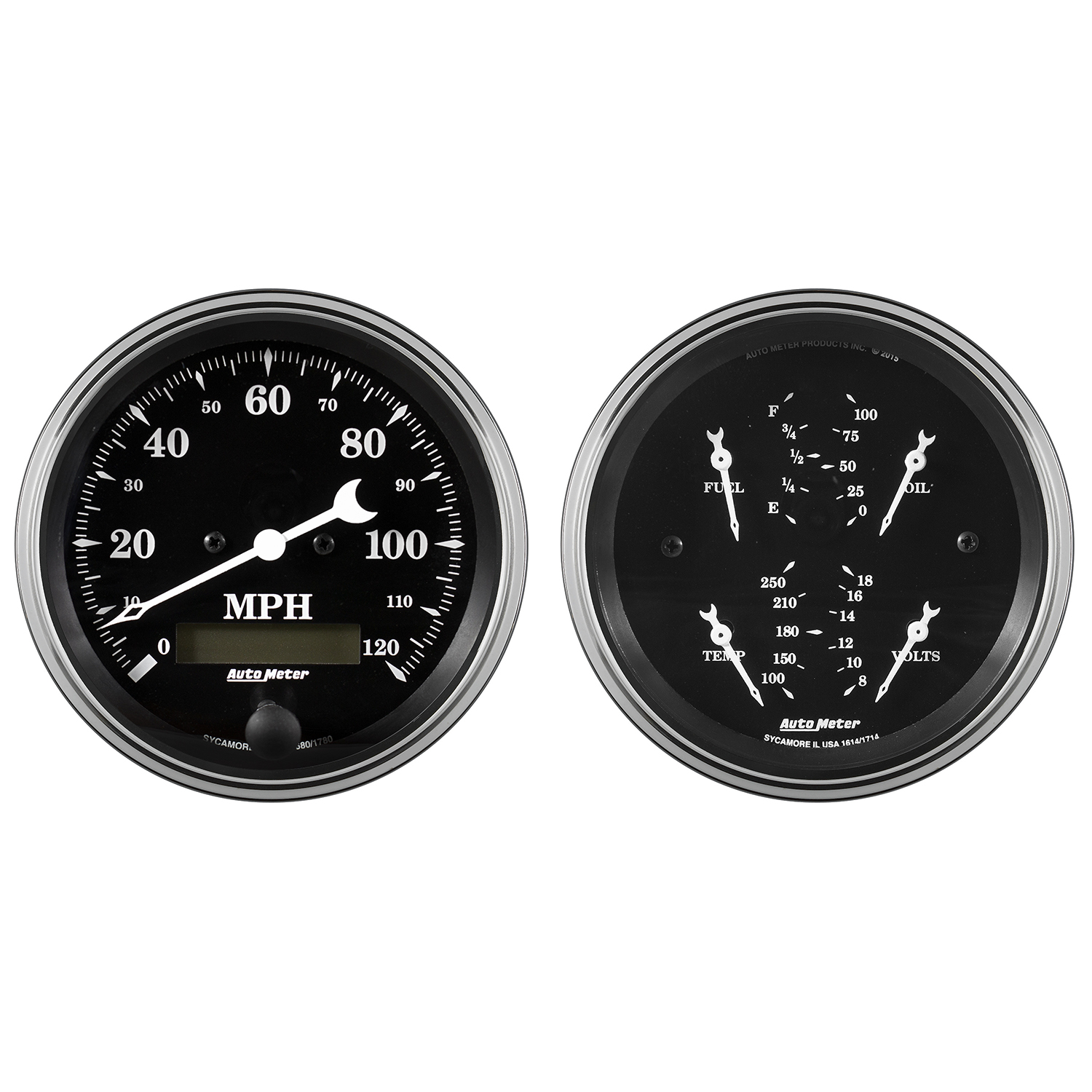

AutoMeter Old Tyme Black 2-Piece Gauge Kit (3-3/8″)
Consolidate your dashboard instrumentation with traditional hot rod styling and modern electronic precision. The AutoMeter 1700 kit pairs a 3-3/8″ electronic speedometer with a 4-in-1 quad gauge, providing complete vehicle monitoring in just two cutout openings.
Key Features
- ☑ Dual 3-3/8″ Gauge Layout: Space-saving solution providing complete 5-function instrumentation in two standard openings.
- ☑ Old Tyme Black Aesthetics: Vintage-inspired black dials, period-correct white pointers, and polished chrome bezels.
- ☑ Advanced Air-Core Movements: Race-proven electric air-core instruments provide fast, accurate readings while keeping hazardous fluids outside the cockpit.
- ☑ Push-Button Calibration Speedometer: Simple 2-mile drive calibration with digital LCD odometer—no dip switches required.
- ☑ 4-in-1 Quad Instrumentation: Integrates Fuel Level (240E/33F), Oil Pressure (0-100 PSI), Water Temperature (100-250°F), and Voltmeter (8-18V).
- ☑ Complete Sensor Suite Included: Comes fully equipped with temperature, oil pressure, fuel level, and Hall-effect speed senders.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 1700 |
| Gauge Series | Old Tyme Black |
| Kit Type | 2-Piece (Quad Gauge & Speedometer) |
| Gauge Diameter | 3-3/8″ (85.7mm) |
| Bezel Finish | Polished Chrome (Street Rod Style) |
| Face / Pointer Color | Black Dial / White Pointer |
| Lighting | White Perimeter Incandescent (Red & Green Covers Included) |
| Voltage Compatibility | 12V and 16V Negative Ground Systems |
| Fuel Level Range | 240 Ohms Empty / 33 Ohms Full |
What’s Included in the Box
- 3-3/8″ Electronic Speedometer
- 3-3/8″ 4-in-1 Quad Gauge
- Fuel Level Sender (240E / 33F range)
- Electric Oil Pressure Sending Unit (1/8″ NPT)
- Water Temperature Sending Unit (1/8″ NPT)
- 2-Wire Hall-Effect Speed Sender (7/8″-18 THD for GM/Chrysler)
- NPT Brass Adapters (1/4″, 3/8″, 1/2″ NPT)
- Bulb & Socket Assemblies with Red/Green Covers
- Mounting Hardware & Gauge Retainers
Engineered in the USA to demanding quality standards, AutoMeter instrumentation is trusted across motorsport and custom rod builds worldwide. At JP Racing, we supply genuine AutoMeter components with fast UK dispatch and expert technical guidance to support your build from start to finish.
