Description
Part Number: 1409

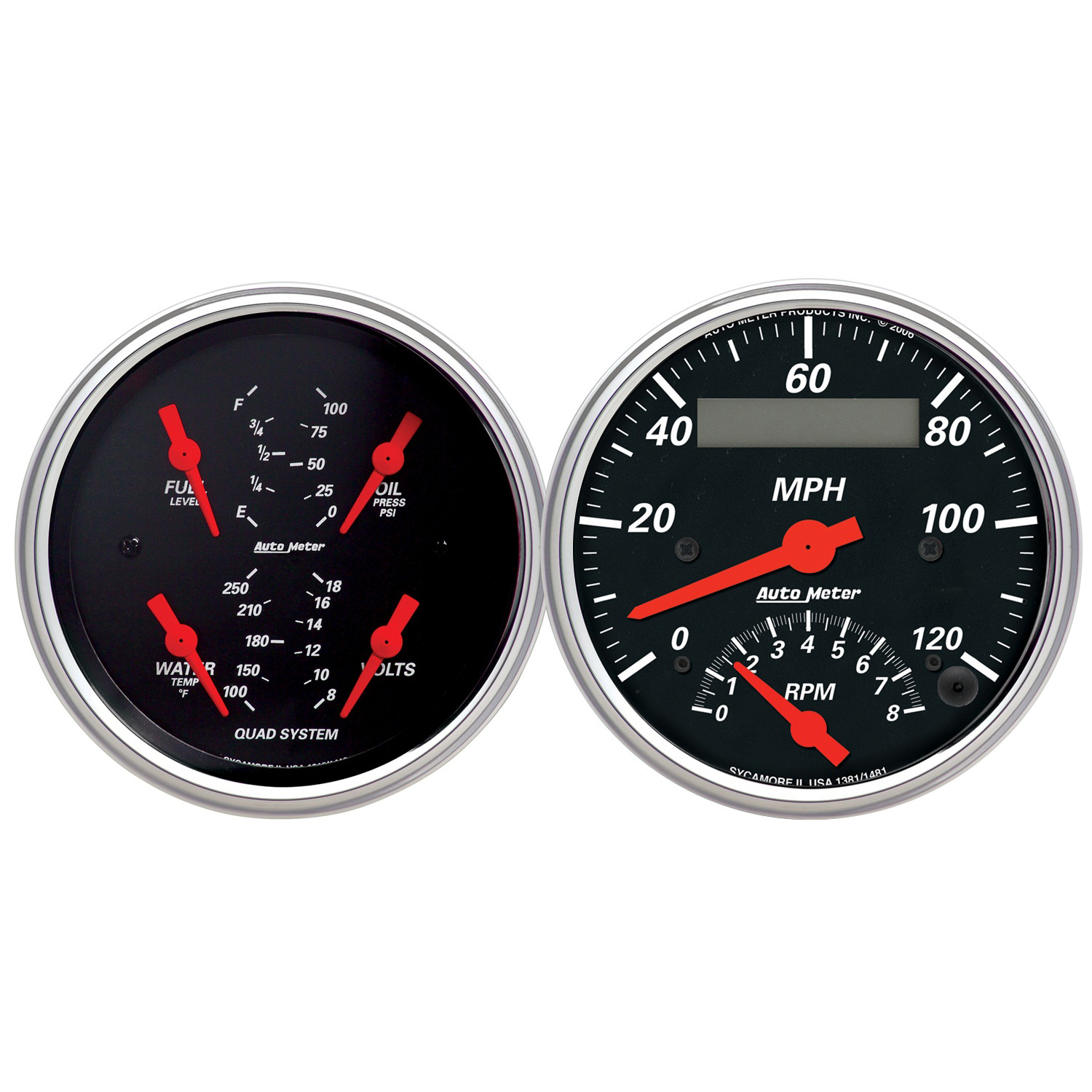

AutoMeter Designer Black 3-3/8″ 2-Piece Gauge Kit
Complete dashboard instrumentation solution combining a 4-in-1 Quad Gauge with a Speedometer and Tachometer combo in classic Designer Black styling.
Key Features
- ☑ Compact 2-gauge kit saves dashboard real estate while delivering 6 complete engine & vehicle metrics.
- ☑ Air-core electric gauge movements deliver instant accuracy and reliable performance under high vibration.
- ☑ Designer Black dials featuring clear domed lenses, chrome bezels, and white perimeter incandescent lighting.
- ☑ Push-button programmable electronic speedometer with integrated high-mileage LCD odometer.
- ☑ Full mounting kit supplied including oil pressure, water temp, fuel level, and Hall-Effect speed senders.
Technical Specifications
| Manufacturer | AutoMeter |
|---|---|
| Part Number | 1409 |
| Gauge Series | Designer Black |
| Gauge Diameter | 3-3/8″ (85.7mm) |
| Kit Type | 2-Piece In-Dash Gauge Kit (Quad Gauge + Speedo/Tach Combo) |
| Movement Type | Air-Core Electric |
| Dial & Bezel | Black Dial / Chrome Street Rod Bezel / Fluorescent Red Pointers |
| Lighting | Traditional White Incandescent (Red & Green Filter Covers Included) |
| Speedometer Range | 0 – 120 MPH (Push-button calibration) |
| Tachometer Range | 0 – 8000 RPM |
| Quad Functions | Fuel Level (240E/33F Ohm), Oil Pressure (0-100 PSI), Water Temp (100-250 °F), Voltmeter (8-18V) |
What’s Included in the Box
- 3-3/8″ Designer Black Quad Gauge (Fuel, Oil Pressure, Water Temp, Volts)
- 3-3/8″ Designer Black Electronic Speedometer / Tachometer Combo Gauge
- Electric Oil Pressure Sender (1/8″ NPT)
- Electric Water Temperature Sender (1/8″ NPT)
- Fuel Level Sender (240E / 33F Ohm Range)
- 2-Wire Hall-Effect Vehicle Speed Sensor (7/8″-18 THD VSS)
- NPT Adapter Fittings (1/4″, 3/8″, and 1/2″ NPT) & Compression Bushings
- Bulb & Socket Assemblies with Red and Green Light Covers
- Dashboard Mounting Brackets and Hardware Kit
Designed for custom builds, hot rods, and classic restorations where dash space is at a premium, the AutoMeter 1409 Designer Black kit combines race-proven instrumentation with timeless style. Every unit sold by JP Racing is backed by dedicated UK customer support, full manufacturer warranty coverage, and fast UK dispatch.
