Description
Part Number: 1205

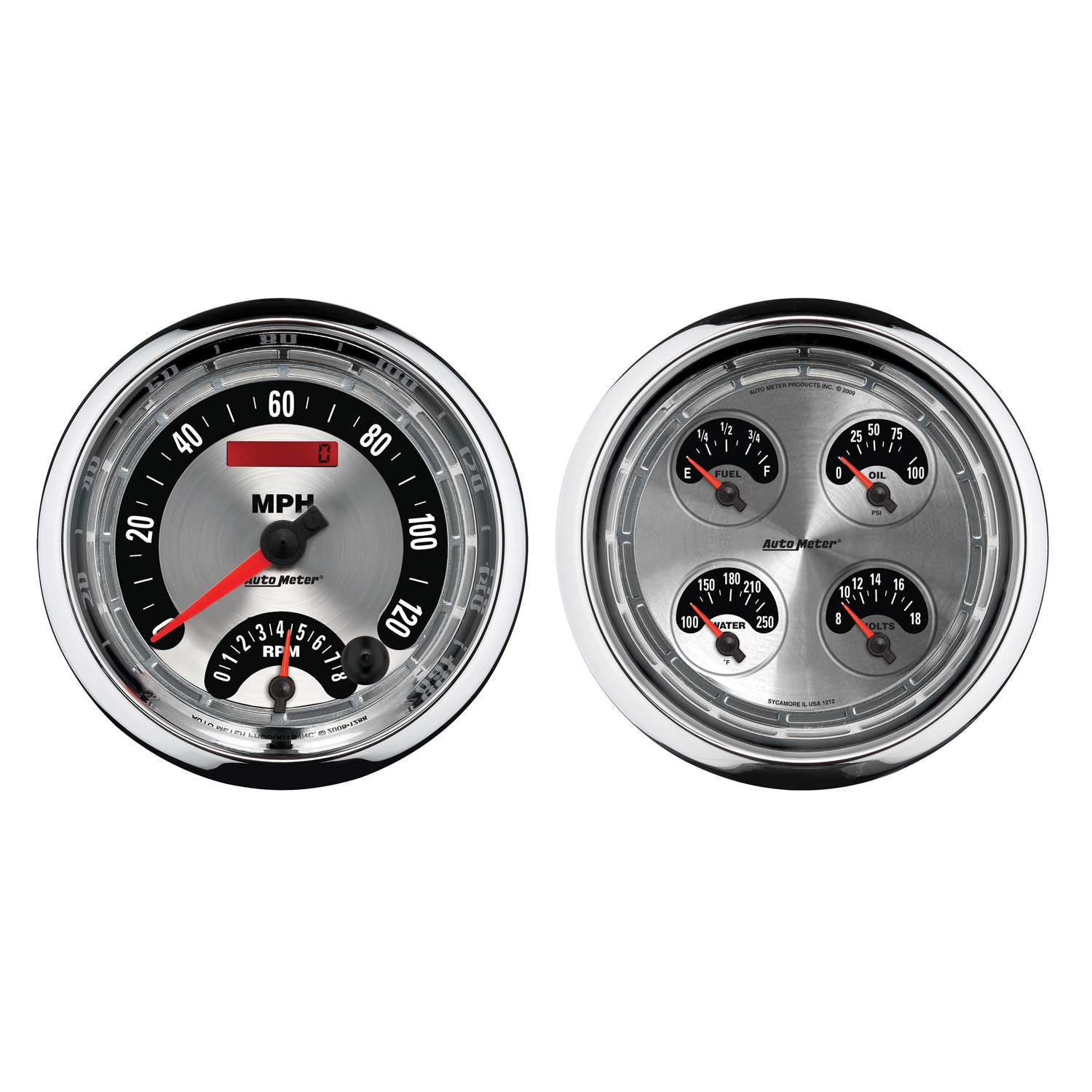

AutoMeter American Muscle 5″ Quad & Speedo/Tach Combo Kit
Consolidate your vehicle dashboard telemetry with the AutoMeter 1205 American Muscle 2-piece gauge kit, engineered specifically for setups with limited dash space without sacrificing vital engine monitoring capabilities.
Key Features
- ☑ Comprehensive 2-piece gauge cluster combining Speedometer, Tachometer, Fuel Level, Oil Pressure, Water Temperature, and Voltmeter.
- ☑ Advanced electric air-core meter movements keep hazardous vehicle fluids outside the cockpit.
- ☑ High-Definition white LED through-the-dial illumination with fluorescent red pointers for optimum night readability.
- ☑ Simple push-button 2-mile drive speedometer calibration without dip switches, accommodating tire and gear ratio changes.
- ☑ Iconic American Muscle series aesthetics featuring spun aluminum silver dials, chrome super bezels, and domed lenses.
- ☑ Fully compatible with 12V and 16V electrical systems across street, hot rod, and track-focused applications.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Part Number | 1205 |
| Series | American Muscle |
| Gauge Diameter | 5″ (127mm) |
| Hole Cutout Size | 4-5/8″ (117.5mm) |
| Gauge Type | Electric Air-Core 2-Piece Combo Kit |
| Speedometer Range | 0-120 MPH |
| Tachometer Range | 0-8000 RPM (Compatible with 0.5-6 pulse ignition signals) |
| Oil Pressure Range | 0-100 PSI |
| Water Temperature Range | 100-250 °F |
| Voltmeter Range | 8-18 Volts |
| Fuel Level Resistance | 240 Ohms Empty / 33 Ohms Full |
| Lighting Style | High-Definition White LED Through-the-Dial |
What’s Included in the Box

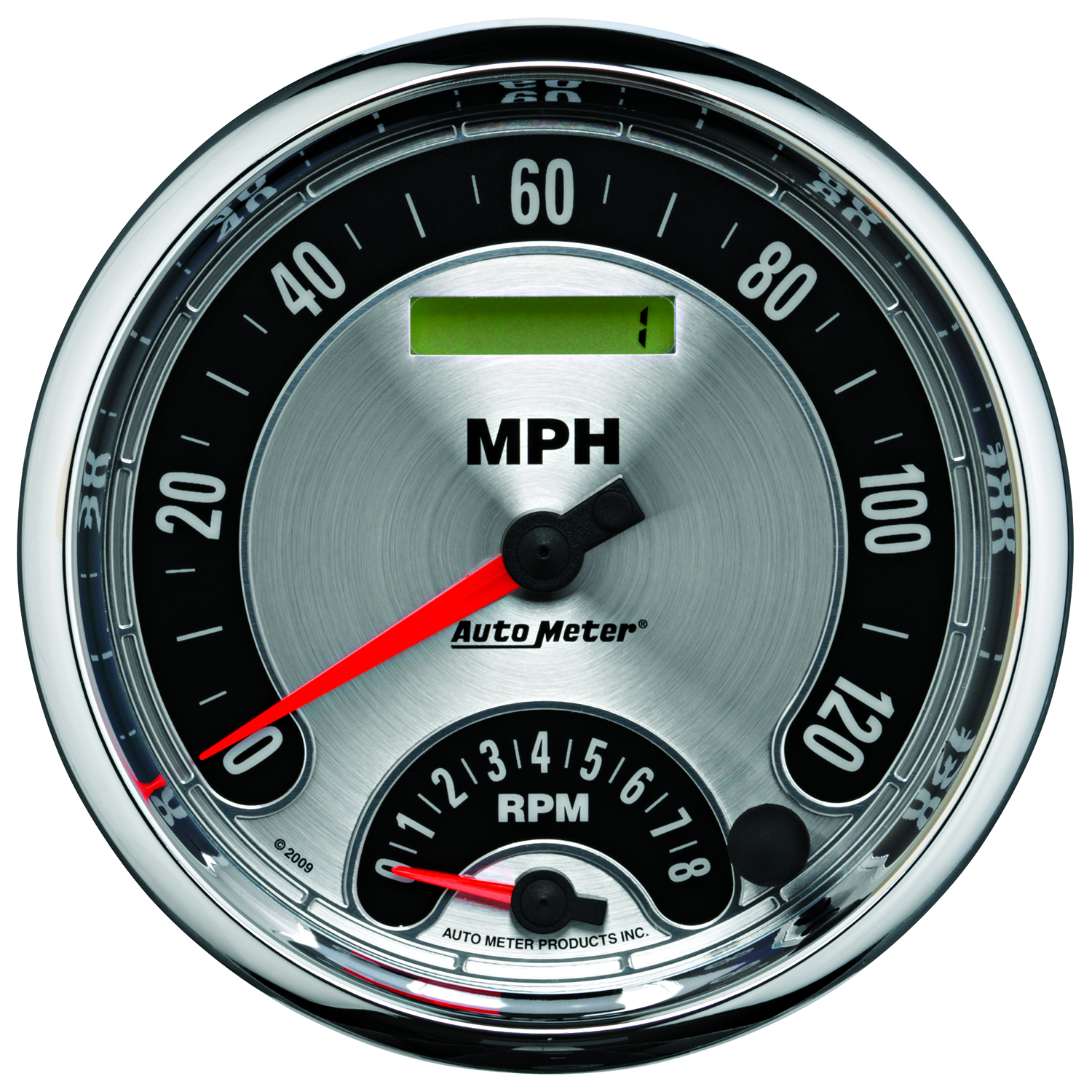

- AutoMeter 5″ Combination Speedometer & Tachometer Gauge

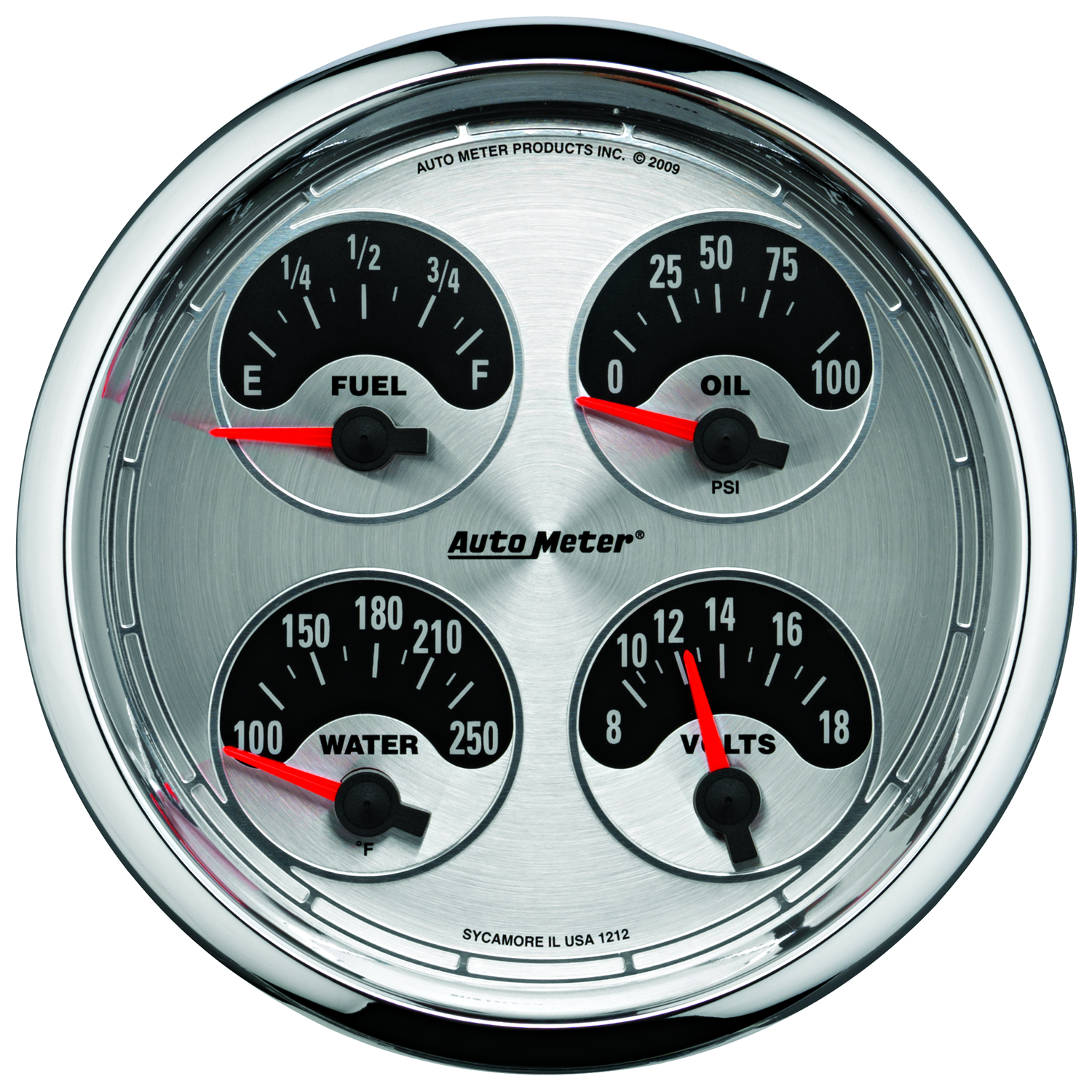

- AutoMeter 5″ 4-in-1 Quad Gauge (Fuel Level, Oil Pressure, Water Temp, Volts)
- 1/8″ NPT Water Temperature Sender (PN 2258)
- 1/8″ NPT Oil Pressure Sender (PN 2242)
- Fuel Level Sender (PN 3262 / 240-33 Ohms)
- Vehicle Speed Sensor (VSS) and Adapter Bushings (3/8″ & 1/2″ NPT)
- Mounting Brackets & Installation Hardware
Engineered to AutoMeter’s exact performance standards, the 1205 American Muscle Quad Kit delivers dependable accuracy and long-term reliability for your vehicle. Order today from JP Racing for quick UK dispatch and dedicated technical customer support.
