AUTOMETER 5pc Gauge Kit 3 3/8" & 2 1/16", Elec. Speedo W/ Wheel Odo, Prestige Pearl
AUTOMETER 5pc Gauge Kit 3 3/8" & 2 1/16", Elec. Speedo W/ Wheel Odo, Prestige Pearl - Image 2

AUTOMETER 5pc Gauge Kit 3 3/8″ & 2 1/16″, Elec. Speedo W/ Wheel Odo, Prestige Pearl

Original price was: £899.05.Current price is: £809.15. Inc. VAT

SKU: ATM2007 Categories: , Tags: , , Brand:

Description

Part Number: 2007

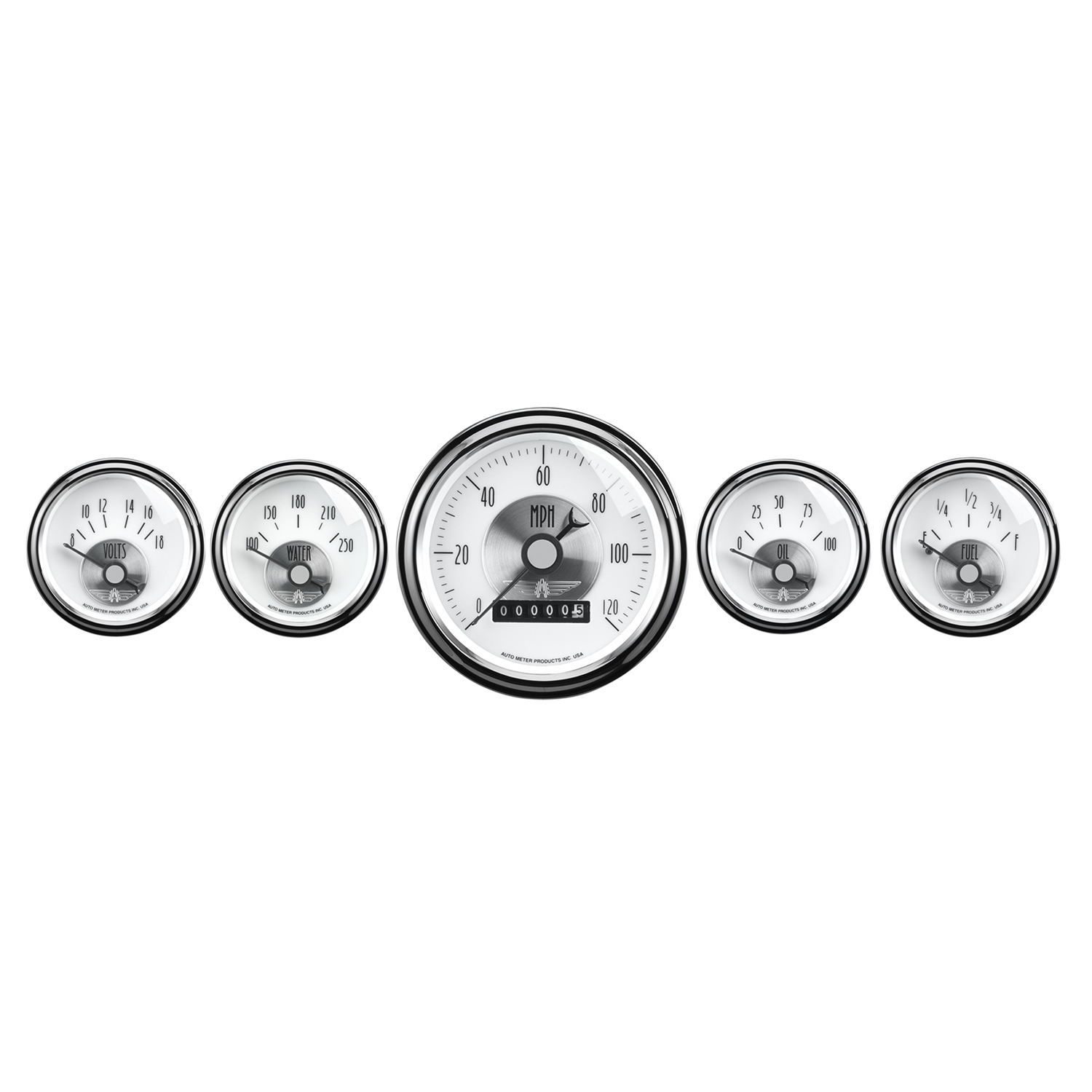

AutoMeter 5-Piece Complete Electric Gauge Set

Engineered for precision dashboard instrumentation, the AutoMeter 2007 gauge kit combines classic aesthetics with race-proven air-core movements and modern white LED illumination.

Key Features

  • ☑ Complete 5-gauge instrumentation kit featuring 3-3/8″ speedometer and four 2-1/16″ auxiliary instruments
  • ☑ Crisp white dial faces with chrome bezels and high-contrast black pointer needles
  • ☑ Modern white LED through-the-dial illumination for optimum clarity during night driving
  • ☑ Simple push-button 2-mile drive speedometer calibration compatible with sine wave and hall-effect sensors
  • ☑ 12V and 16V electrical compatibility engineered for street performance and motorsport applications
  • ☑ Supplied with a full suite of matched sending units and NPT mounting adapters

Technical Specifications


Manufacturer AutoMeter
Part Number 2007
Gauge Diameters 3-3/8″ (Speedometer) & 2-1/16″ (Auxiliary Gauges)
Movement Type Electric Air-Core
Speedometer Range 0-120 MPH (Includes Digital LCD Odometer)
Oil Pressure Range 0-100 PSI
Water Temperature Range 100-250°F
Voltmeter Range 8-18 Volts
Fuel Level Resistance 240 Ohms Empty / 33 Ohms Full
Lighting White LED Through-The-Dial

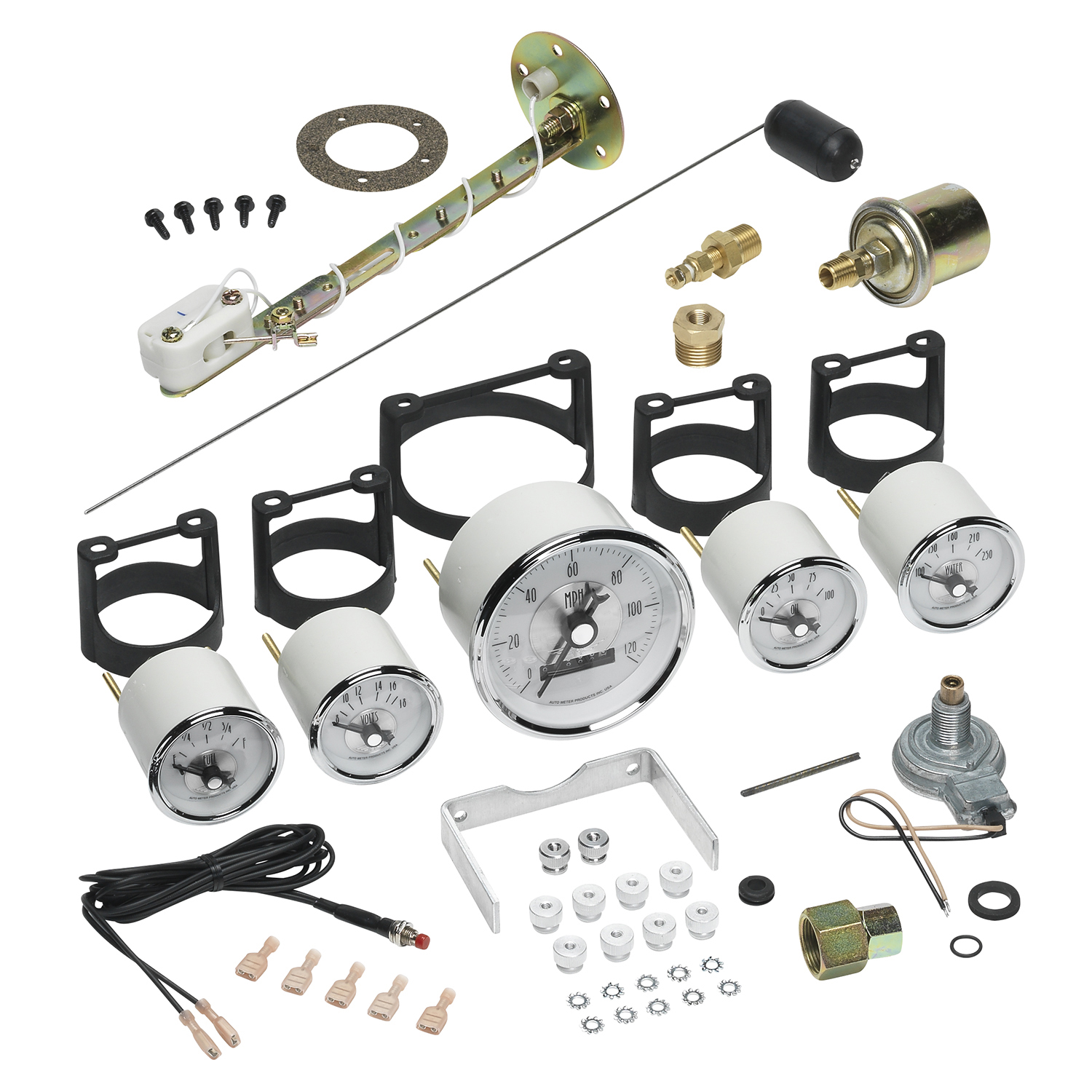

What’s Included in the Box

  • 1x 3-3/8″ Electronic Speedometer (0-120 MPH)
  • 1x 2-1/16″ Electric Oil Pressure Gauge (0-100 PSI)
  • 1x 2-1/16″ Electric Water Temperature Gauge (100-250°F)
  • 1x 2-1/16″ Electric Voltmeter (8-18V)
  • 1x 2-1/16″ Electric Fuel Level Gauge (240E/33F)
  • 1x 2-Wire Hall-Effect Speed Sender (7/8″-18 THD)
  • 1x Electric Oil Pressure Sender
  • 1x Electric Water Temperature Sender with 1/4″, 3/8″, and 1/2″ NPT Adapters
  • 1x Fuel Level Sender (240-33 Ohm)
  • Gauge Mounting Brackets & Installation Hardware

AutoMeter performance instruments are built for high accuracy and extreme durability under demanding track conditions. As an official UK distributor, JP Racing provides genuine AutoMeter products backed by fast UK dispatch and dedicated technical support.

Additional information

Weight 2.2 kg
Dimensions 11.43 × 45.09 × 22.23 cm

Frequently Asked Questions

The AutoMeter 2007 5-piece set includes a 3-3/8" electronic speedometer (0-120 MPH) alongside 2-1/16" oil pressure (0-100 PSI), water temperature (100-250°F), voltmeter (8-18V), and fuel level (240E/33F) gauges. Complete matching sending units for speed, pressure, temperature (with NPT adapters), and fuel level are included in the box.

The electronic speedometer uses AutoMeter's simple push-button 2-mile drive calibration. No dip switches are required; simply press the calibration button, drive a measured 2-mile distance, and press the button again. It can be recalibrated at any time to match changes in tire dimensions or axle gear ratios.

Yes, all instruments in the AutoMeter 2007 kit feature electric air-core movements designed to operate seamlessly on standard 12V road vehicle electrical systems as well as high-voltage 16V race battery setups.
