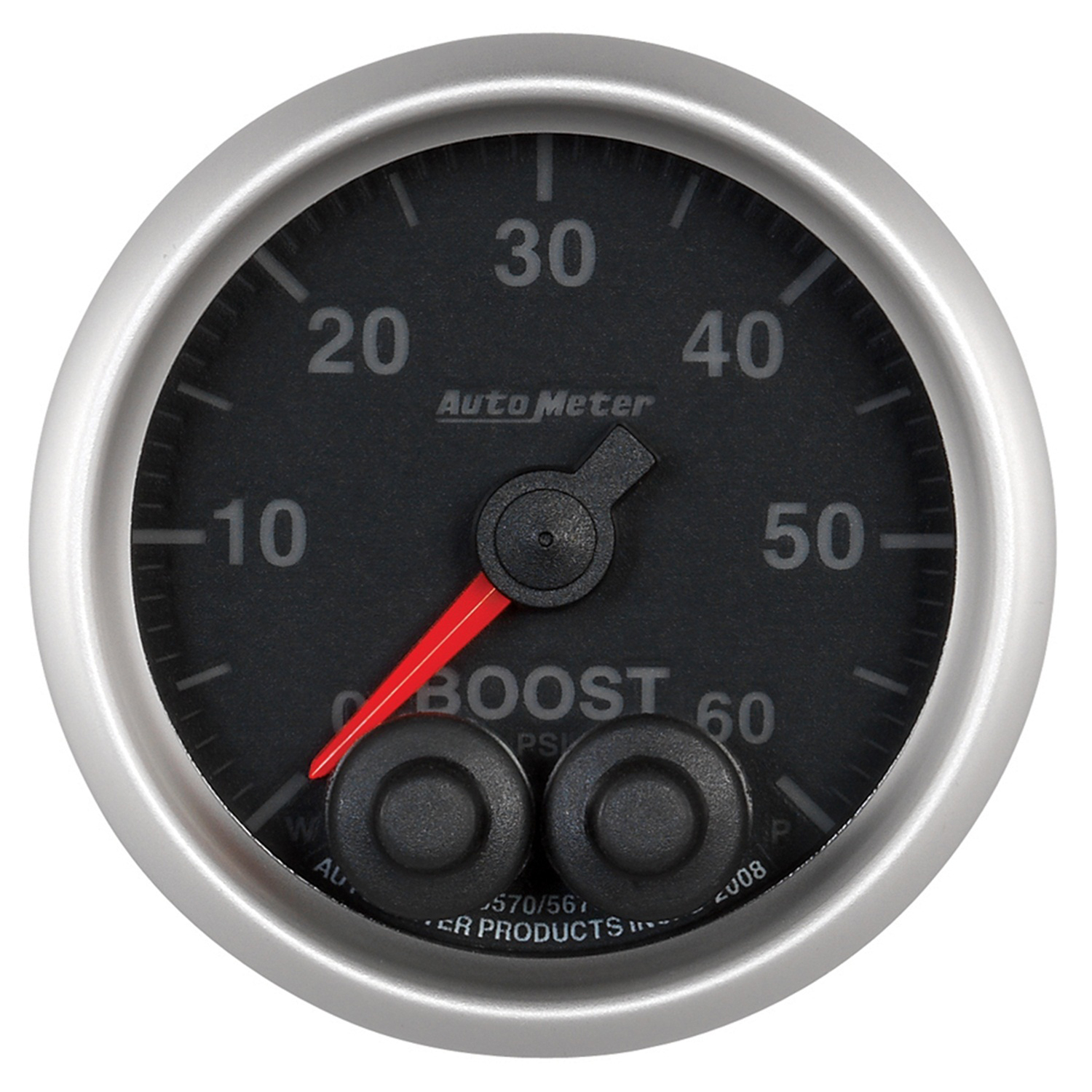

AutoMeter Elite Series 2-1/16″ 0-60 PSI Boost Gauge
Precision-engineered for high-boost turbo and supercharged powertrains, delivering laboratory-grade pressure monitoring with programmable warnings and telemetry control.
Product Overview
Engineered for high-performance petrol and diesel forced-induction applications, the AutoMeter Elite Series Boost Gauge (PN 5670) combines precision full-sweep digital stepper motor accuracy with advanced motorsport functionality. Operating across a 0 to 60 PSI range, this gauge utilizes a solid-state 1/8″ NPT electronic pressure transducer to keep hazardous fluids outside the cockpit while providing instant needle movement and extreme reliability.
The Elite Series features 7 user-selectable backlight colors, peak recall functionality, and custom programmable high/low warning points. Additionally, an integrated user-programmable control circuit allows the gauge to trigger external vehicle systems such as water-meth injection, cooling fans, or warning lights directly from preset boost thresholds.
Key Features
- ☑ High-precision 0-60 PSI readout powered by a digital microprocessor-controlled stepper motor.

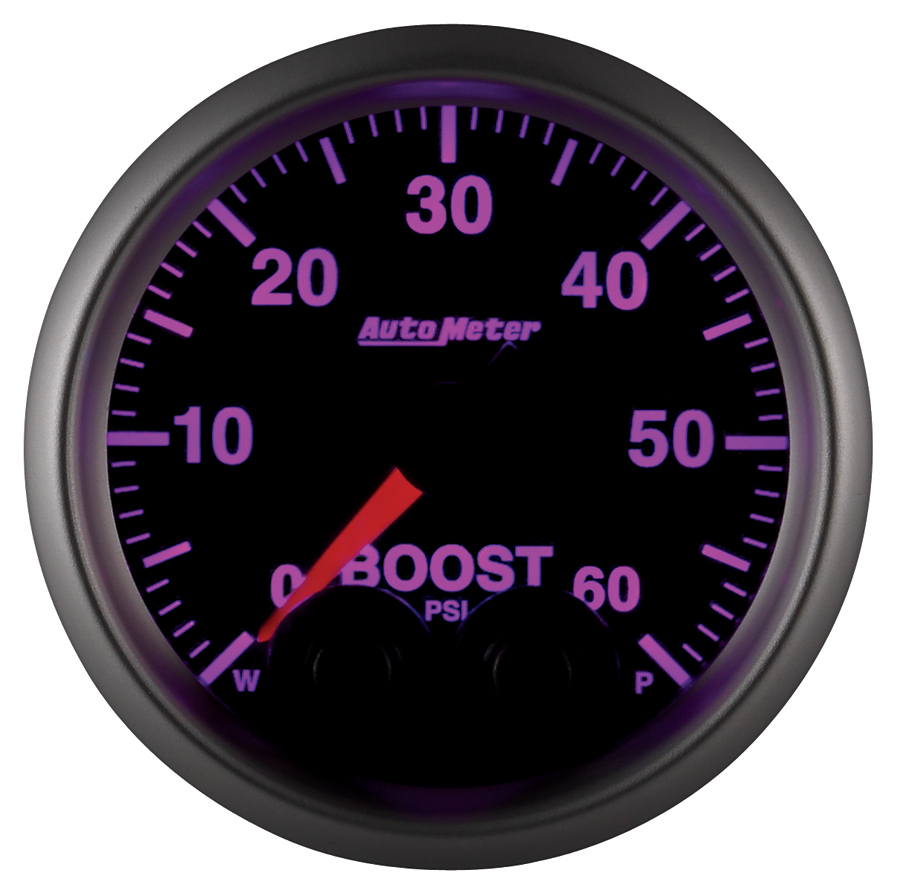

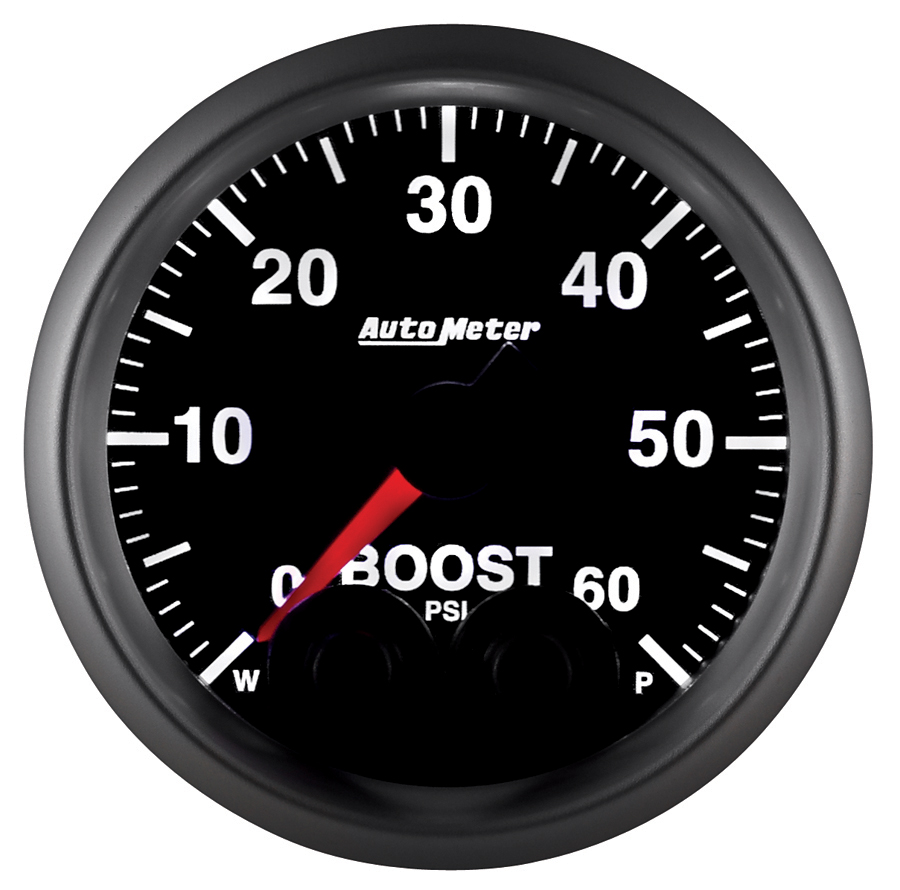

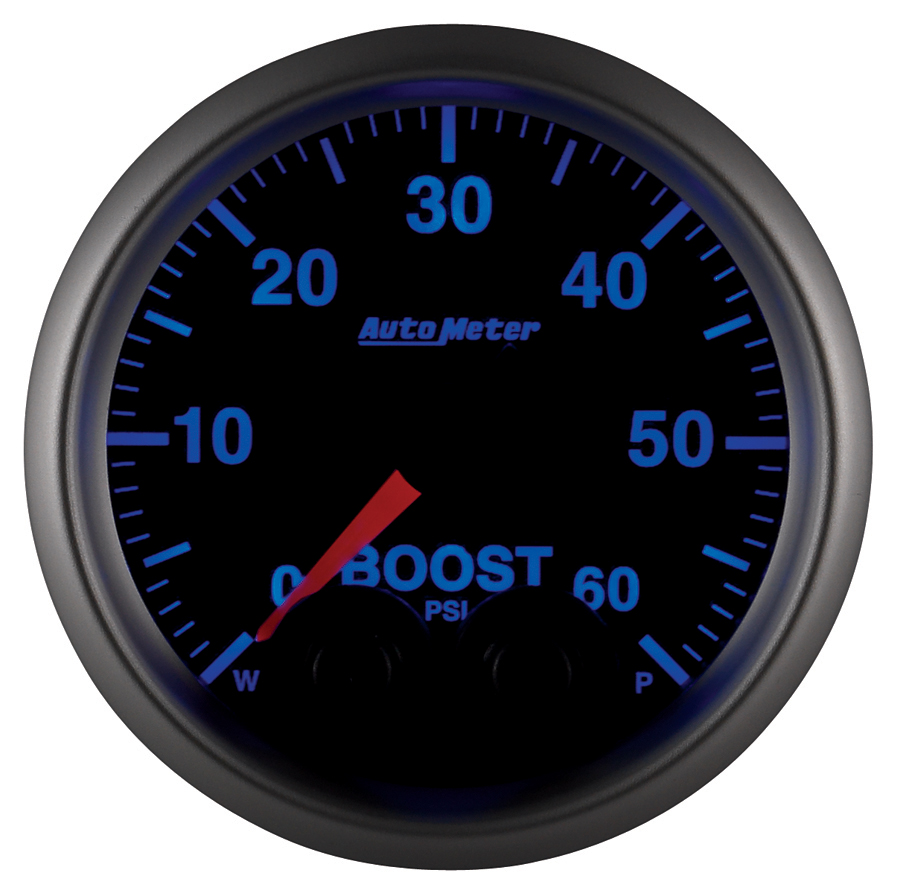

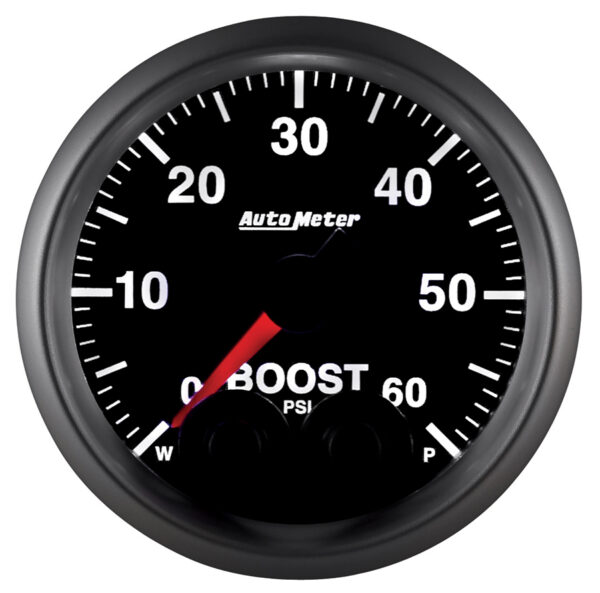

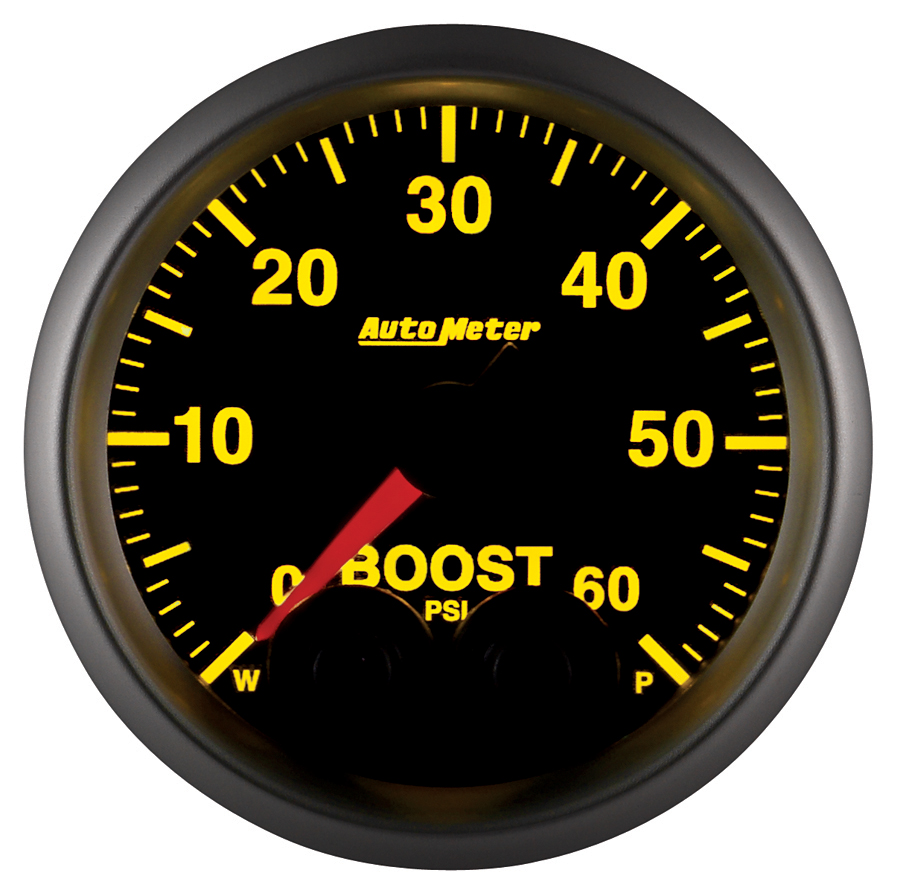

- ☑ 7 user-selectable LED illumination colors to match custom dashboard lighting.
- ☑ Custom programmable high and low warning points with full-dial flashing alerts.
- ☑ One-touch peak recall functionality for post-run telemetry analysis.
- ☑ Integrated 0-5V analog output (0.5V-4.5V) for seamless connection to data loggers and ECUs.
- ☑ Includes solid-state 1/8″ NPT pressure transducer and wiring harness.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| MPN | 5670 |
| Series | Elite Series |
| Gauge Diameter | 2-1/16″ (52.4mm) |
| Pressure Range | 0 – 60 PSI |
| Movement Type | Full Sweep Digital Stepper Motor |
| Sensor Type | 1/8″ NPT Electronic Transducer |
| Lighting | 7-Color User-Selectable LED |
| Analog Output | 0-5V (0.5 – 4.5V) Data Logging Output |
What’s Included in the Box
- 1x AutoMeter Elite Series 2-1/16″ 0-60 PSI Boost Gauge (PN 5670)
- 1x 1/8″ NPT Electronic Boost Pressure Transducer Sensor
- 1x Wiring Harness Assembly
- 1x Mounting Hardware Kit & Bracket
- 1x Installation Instructions
At JP Racing, we supply genuine AutoMeter high-performance instrumentation backed by expert technical support and fast UK dispatch. Upgrade your engine monitoring setup today or contact our team for application assistance.
