Description
Part Number: 3810

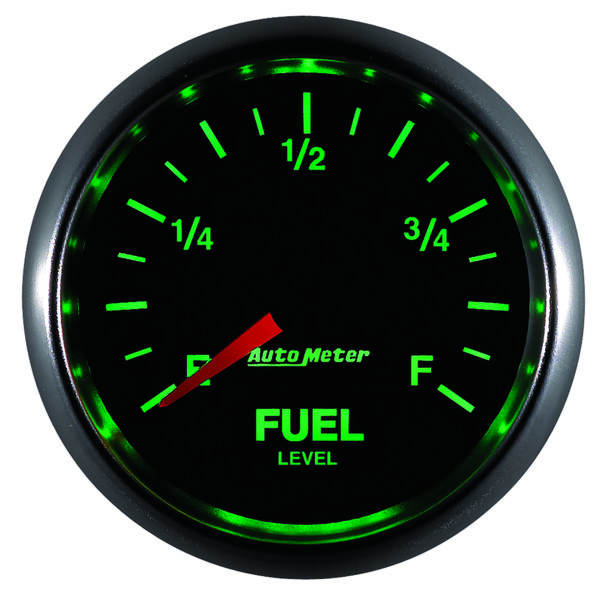

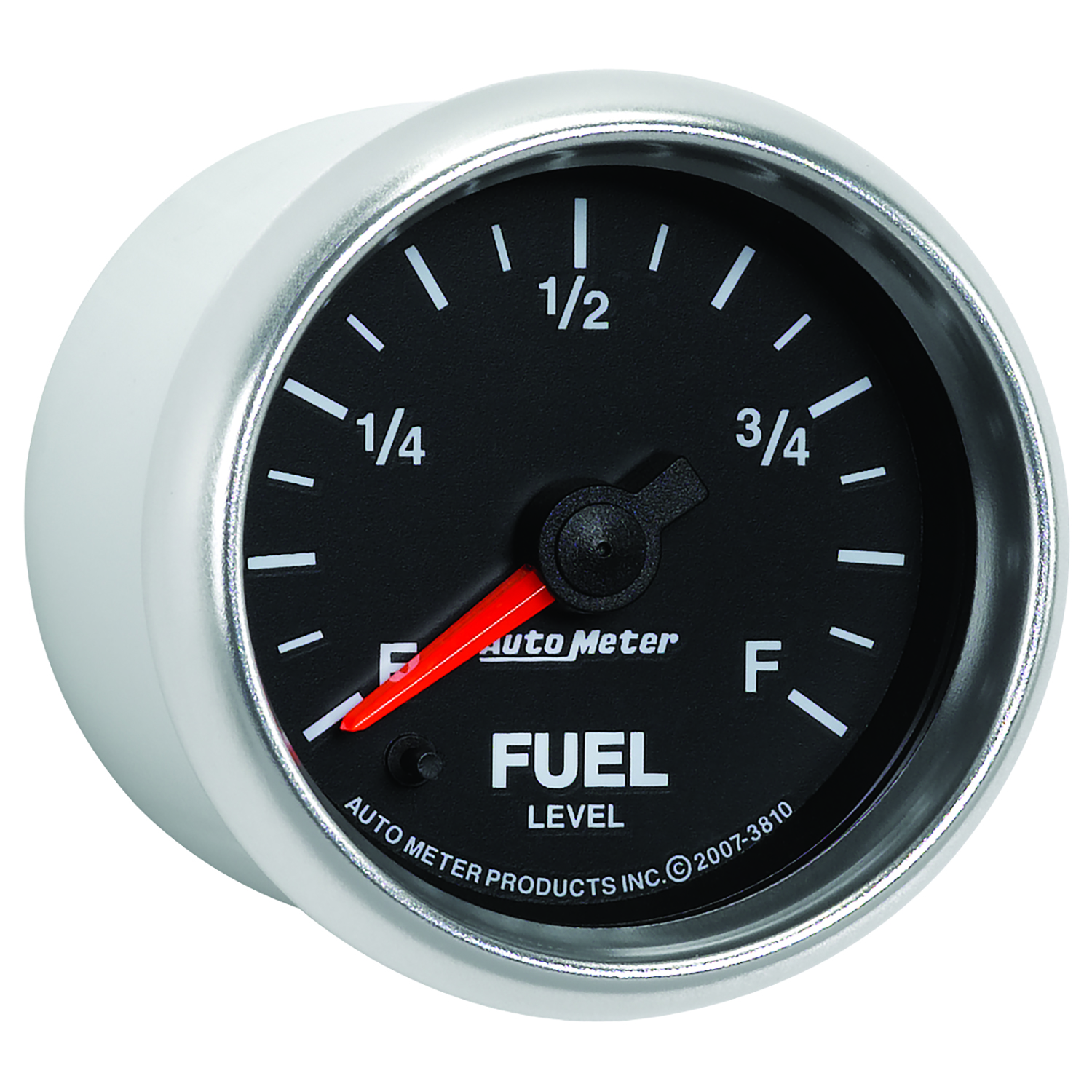

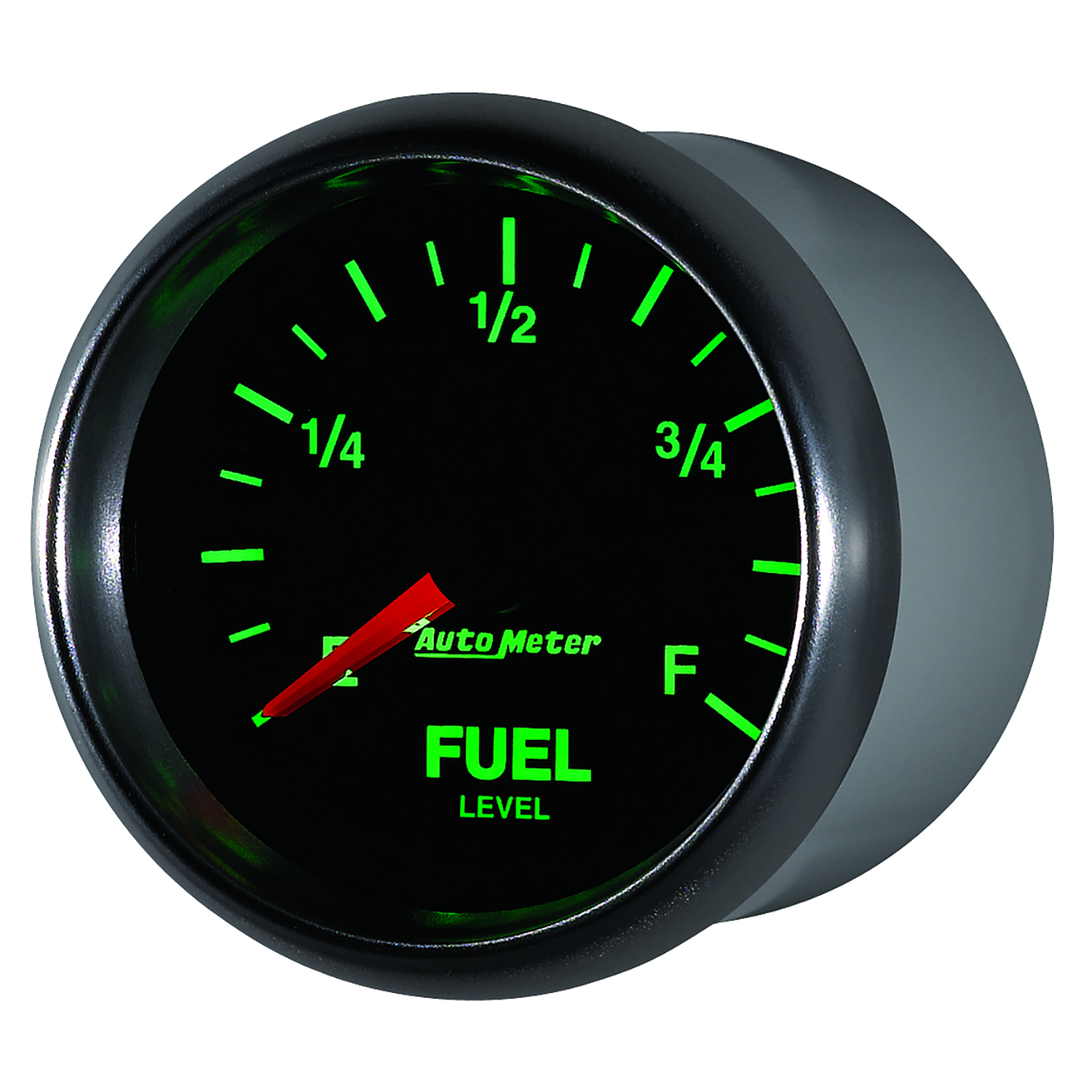

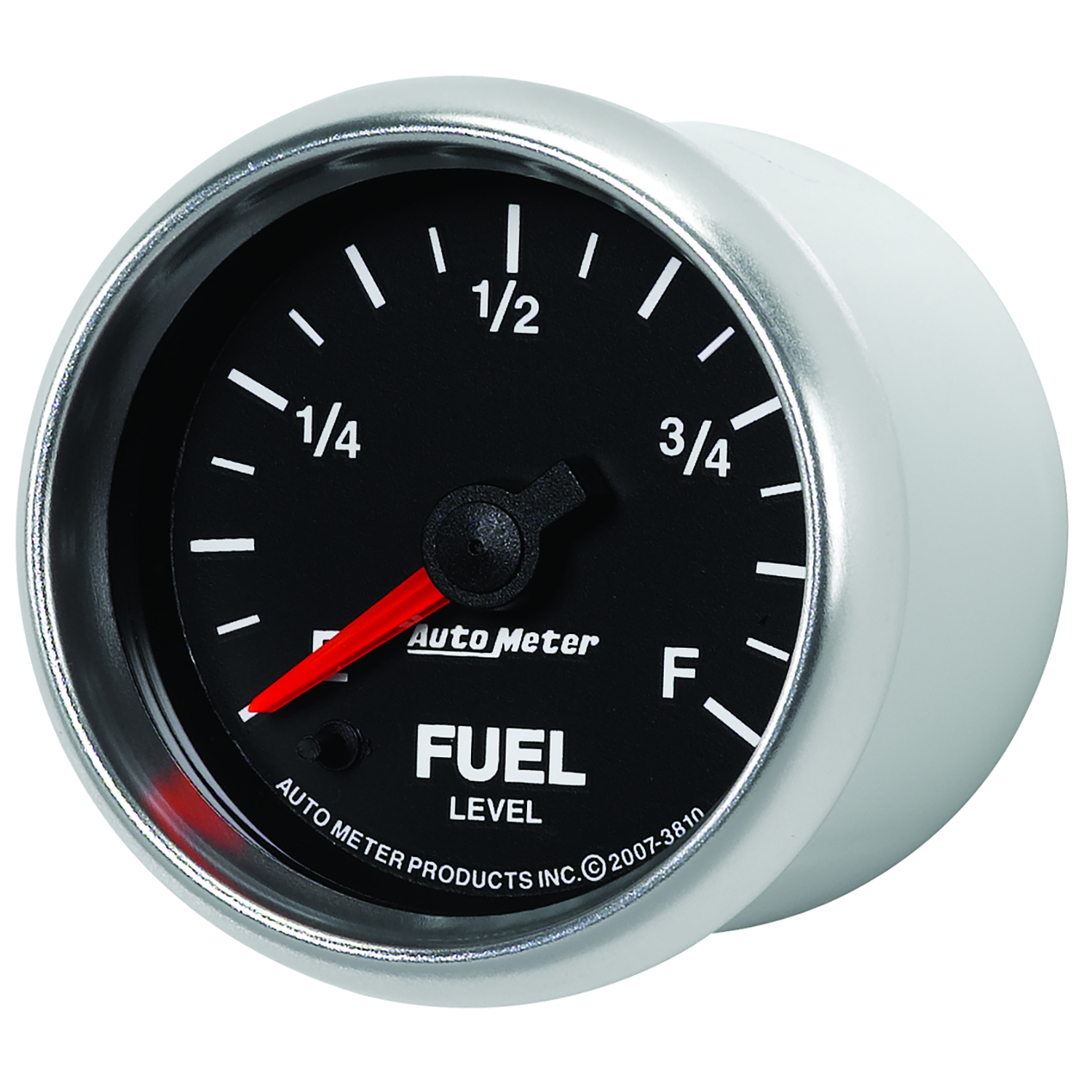

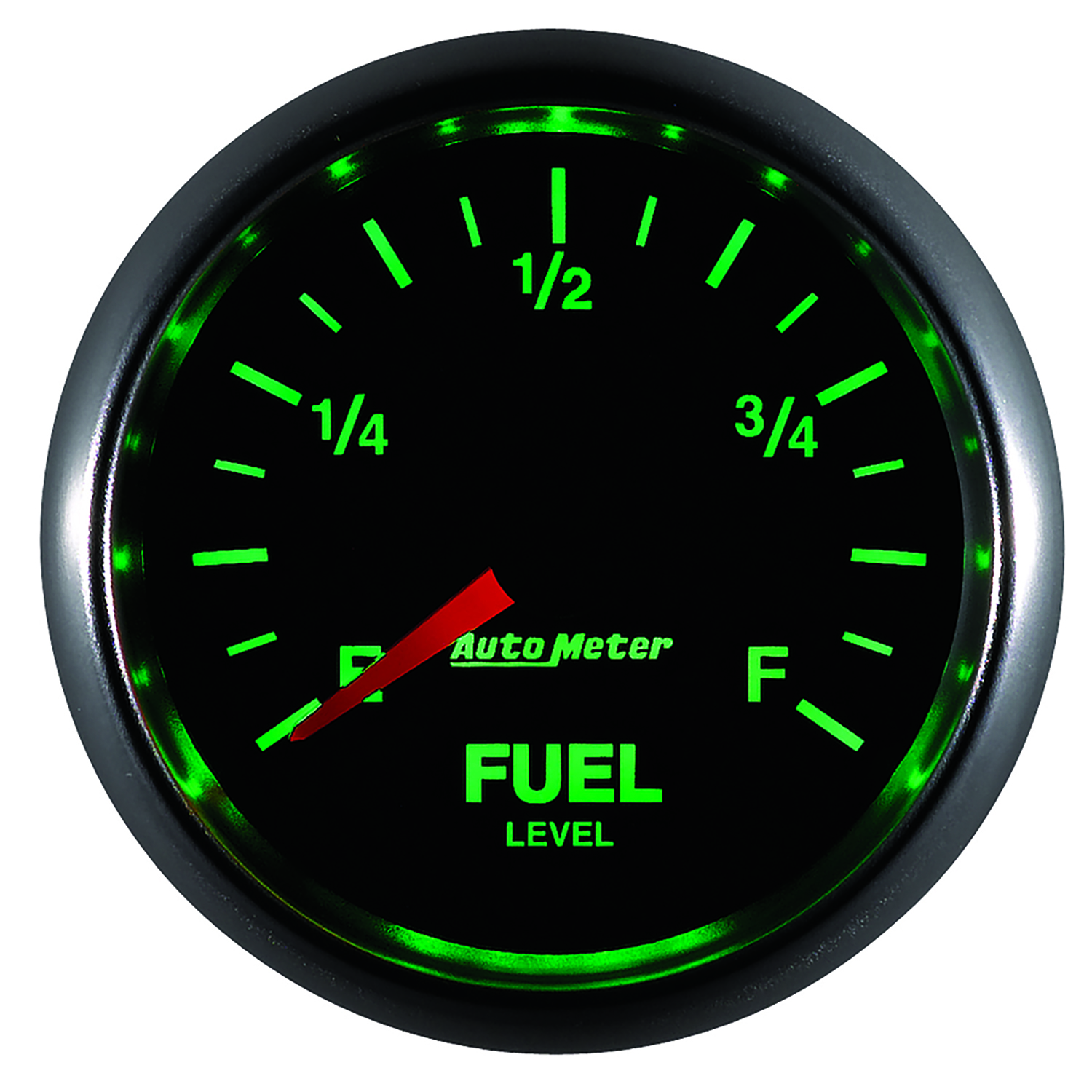

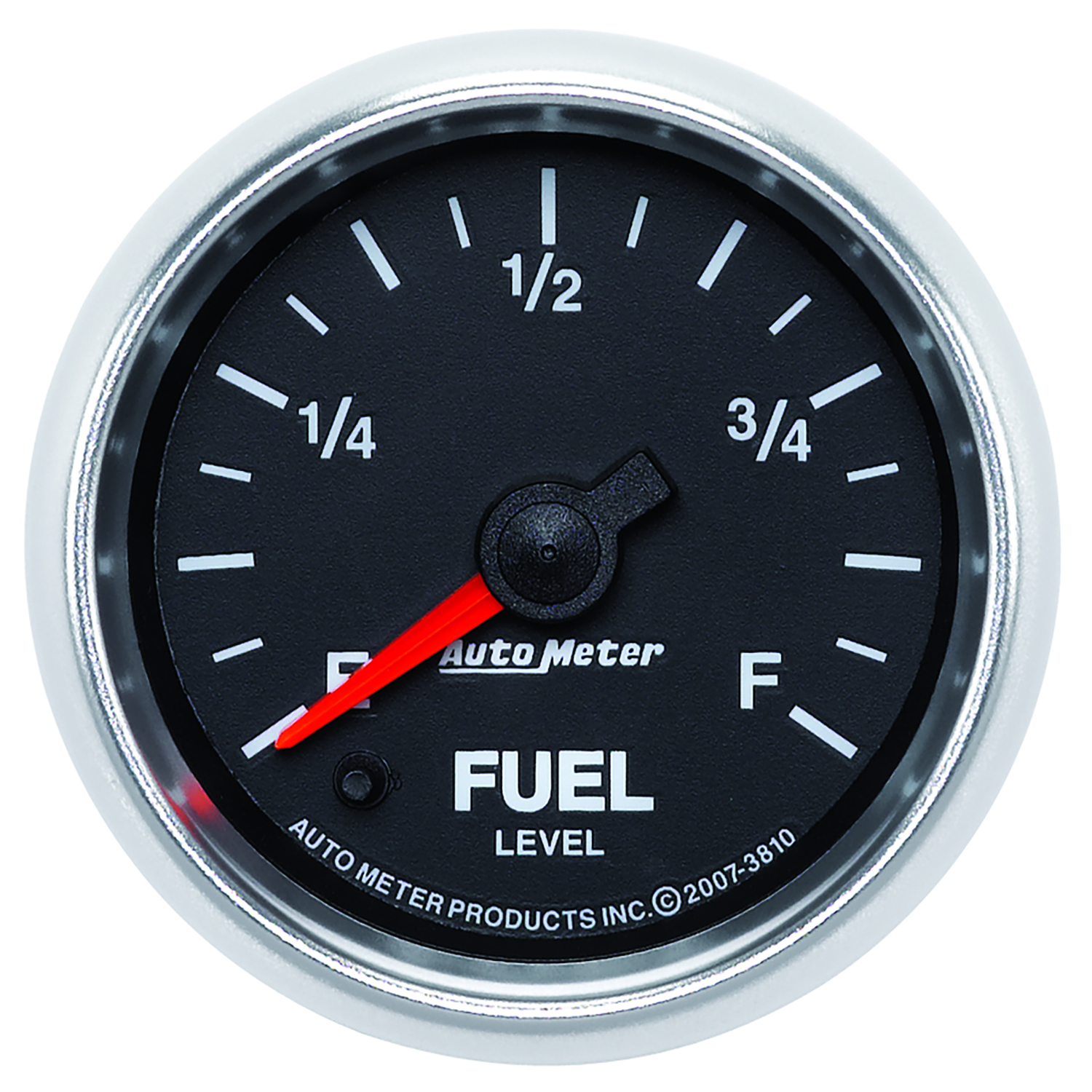

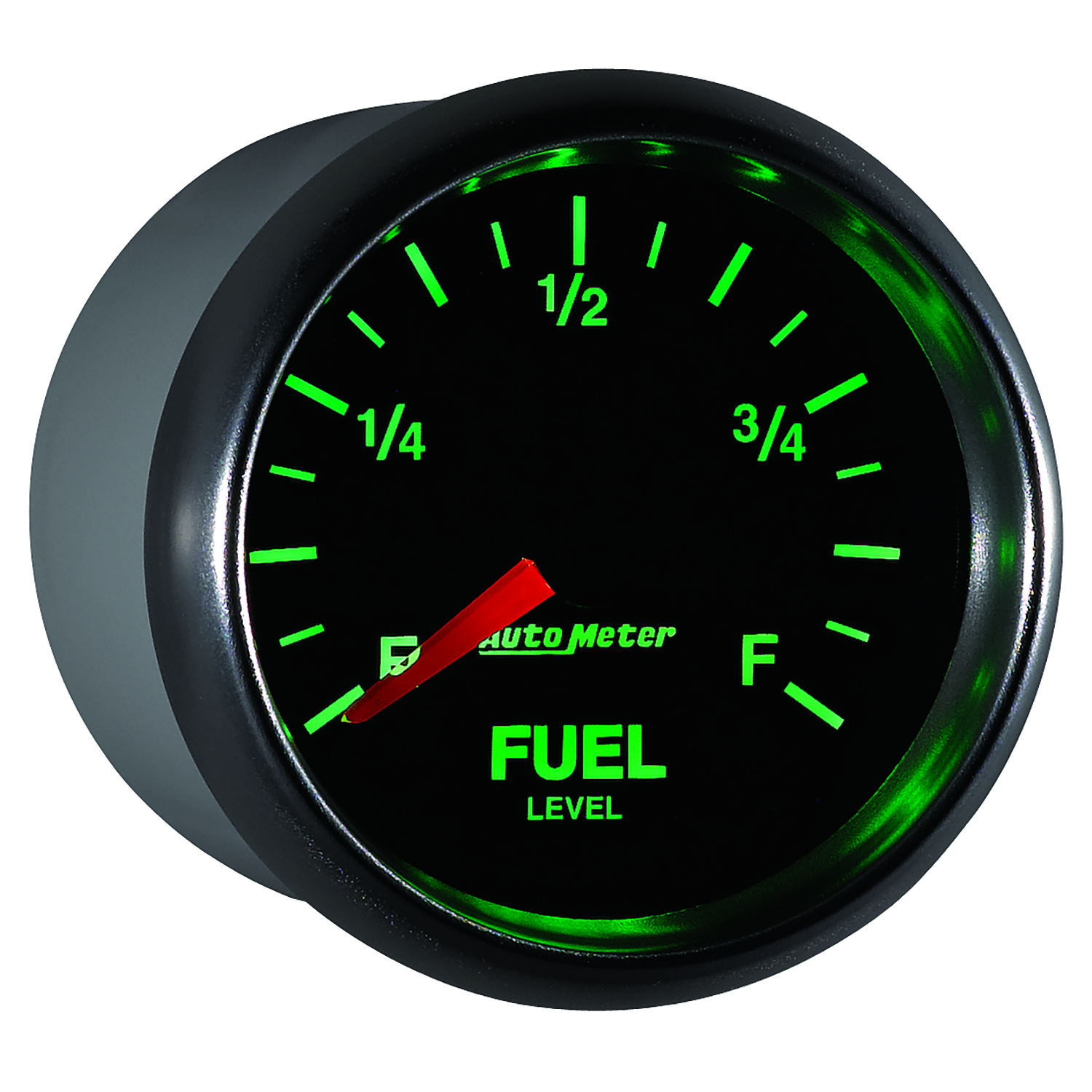

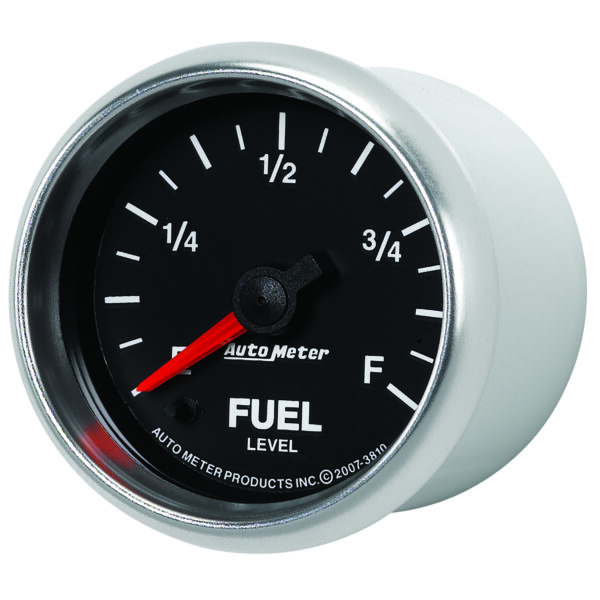

AutoMeter GS Series 2-1/16″ Programmable Fuel Level Gauge
The AutoMeter 3810 GS Series 2-1/16″ (52.4mm) electric fuel level gauge features an advanced digital stepper motor movement, customizable 0-280 Ohm resistance range, and signature GS Series green LED backlighting for maximum readability.
Key Features
- ☑ Digital stepper motor full-sweep movement provides smooth pointer movement and extreme accuracy
- ☑ Programmable 0 to 280 Ohm range with 7 pre-stored factory calibration curves plus custom calibration mode
- ☑ GS Series black dial face with daytime white increments and vivid green LED nocturnal illumination
- ☑ Red LED-illuminated pointer ensures instant visual focus under intense motorsport conditions
- ☑ Compatible with standard 12V and 16V electrical systems found in road, track, and drag vehicles
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Part Number | 3810 |
| Gauge Series | GS Series |
| Gauge Type | Fuel Level |
| Gauge Size | 2-1/16″ (52.4mm) |
| Movement Type | Digital Stepper Motor / Full Sweep |
| Resistance Range | 0 – 280 Ohms (Programmable) |
| Face Color | Black |
| Bezel Finish | Chrome |
| Lighting Color | Green LED (Dial/Numerals), Red LED (Pointer) |
| Voltage Compatibility | 12V / 16V Systems |
What’s Included in the Box
- • AutoMeter 3810 GS Series 2-1/16″ Programmable Fuel Level Gauge
- • Direct-wire harness assembly and mounting hardware
- • Calibration and installation guide
Engineered for high-performance motorsport and custom vehicle builds, the AutoMeter 3810 GS fuel gauge delivers reliable accuracy and hassle-free adaptability to custom fuel cell senders or factory tanks. JP Racing is your premier UK distributor for genuine AutoMeter instruments, offering dedicated technical support and fast UK nationwide delivery.
