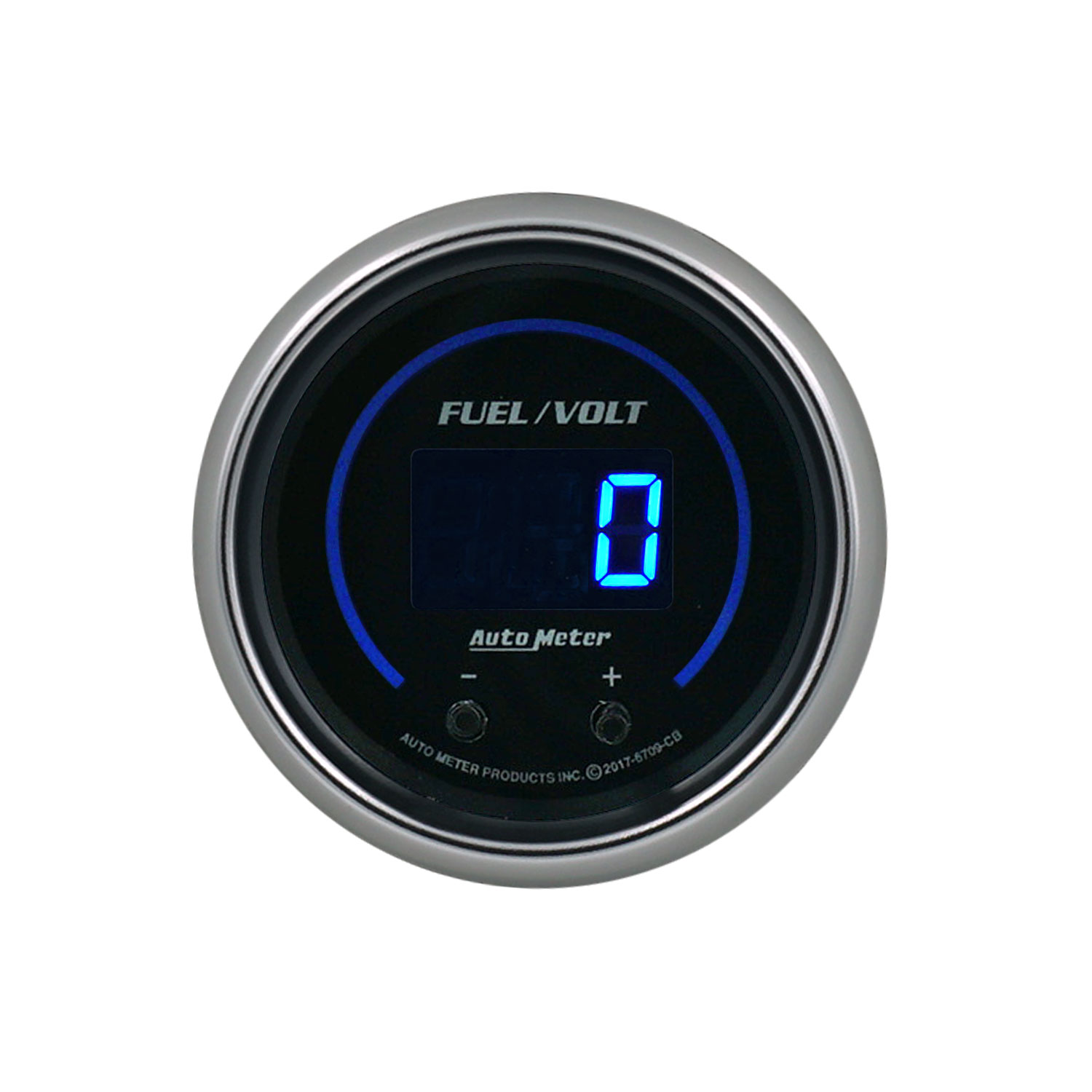

AutoMeter Cobalt Elite Digital 2-1/16″ Fuel Level & Voltmeter Gauge
Consolidate critical dashboard data into a single high-visibility instrument with the AutoMeter 6709-CB Cobalt Elite dual-channel digital fuel level and voltmeter gauge.
Product Overview

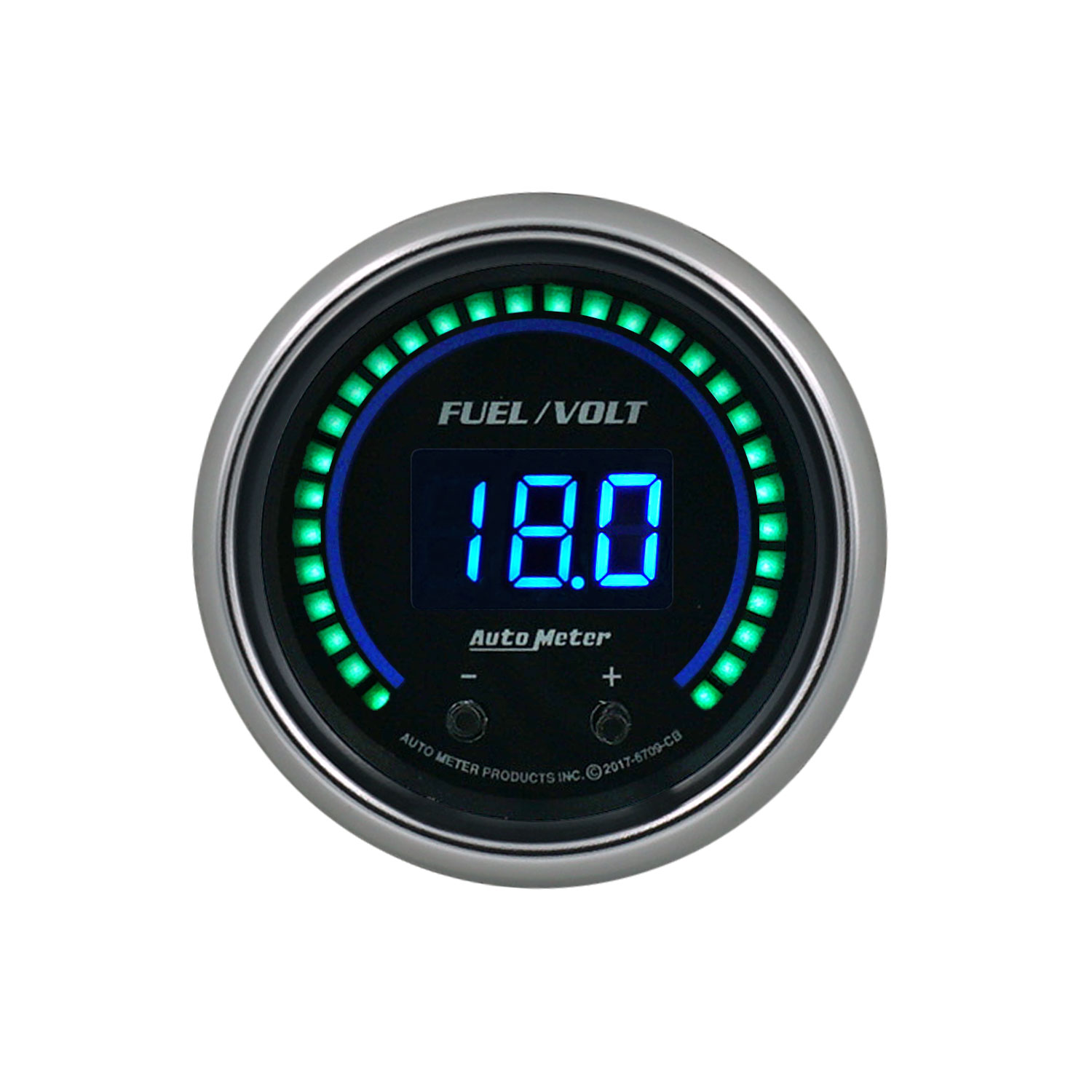

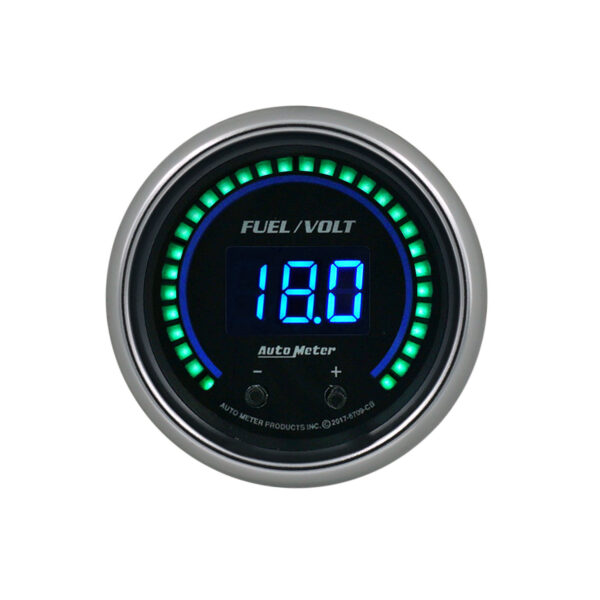

The AutoMeter 6709-CB Cobalt Elite combines two essential monitoring parameters—Fuel Level (0–100%) and System Voltage (8–18V)—into a single compact 2-1/16″ (52.4mm) housing. Designed for high-performance street cars and competition motorsport vehicles, this gauge features AutoMeter’s Cobalt series blue LED illumination, a crisp 7-segment digital numeric display, and a 30-LED radial sweep indicator. You can monitor each channel independently or view a hybrid setup, such as Fuel Level along the outer radial sweep with system Voltage displayed numerically in the center.
Built with advanced digital processing, the 6709-CB offers user-programmable alarm points for both channels. When a threshold is breached, the onscreen display flashes to immediately command driver attention. Integrated Pro-Control outputs enable direct activation of secondary warning lights, buzzers, or pumps. The gauge also stores low peak voltage in memory and provides 7 pre-configured fuel sender calibration ranges alongside a custom 0–280 ohm user-definable scaling mode.
Key Features
- ☑ Dual-Channel Monitoring: Measures fuel level (0–100%) and battery voltage (8–18V DC) within a standard 2-1/16″ (52.4mm) gauge cutout.
- ☑ Cobalt Blue LED Display: Features a high-contrast 7-segment digital readout and 30-LED radial sweep for effortless daytime and nighttime legibility.
- ☑ Universal Fuel Sender Compatibility: Pre-programmed with 7 common OEM/aftermarket sender ranges plus a custom 0–280 ohm user calibration setting.
- ☑ Programmable Driver Alarms: Custom high and low setpoints trigger on-screen display flashing during critical conditions.
- ☑ Pro-Control Trigger Outputs: Integrated signal outputs automatically drive external relays for warning lamps, fans, or pumps.
- ☑ Wide System Compatibility: Fully compatible with both 12-Volt and 16-Volt automotive electrical systems.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number (MPN) | 6709-CB |
| Gauge Series | Cobalt Elite Digital |
| Gauge Type | Electric Dual Channel (Fuel Level / Voltmeter) |
| Gauge Diameter | 2-1/16″ (52.4 mm) |
| Fuel Level Range | 0 – 100% (Programmable 0 – 280 Ohms) |
| Voltmeter Range | 8 – 18 Volts DC |
| Dial Face Color | Black |
| Bezel Finish | Anodized Silver |
| Lighting Type | Blue LED Digital Readout & Radial Sweep |
| Voltage Compatibility | 12V & 16V Systems |
What’s Included in the Box
- AutoMeter 6709-CB 2-1/16″ Cobalt Elite Digital Fuel/Volt Gauge
- 20 ft. Wiring Harness
- Gauge Mounting Hardware & Bracket
- Installation Manual
As a dedicated UK supplier of official AutoMeter products, JP Racing ensures verified performance hardware backed by technical advice and fast UK nationwide shipping.
