Description
Part Number: 4363-M

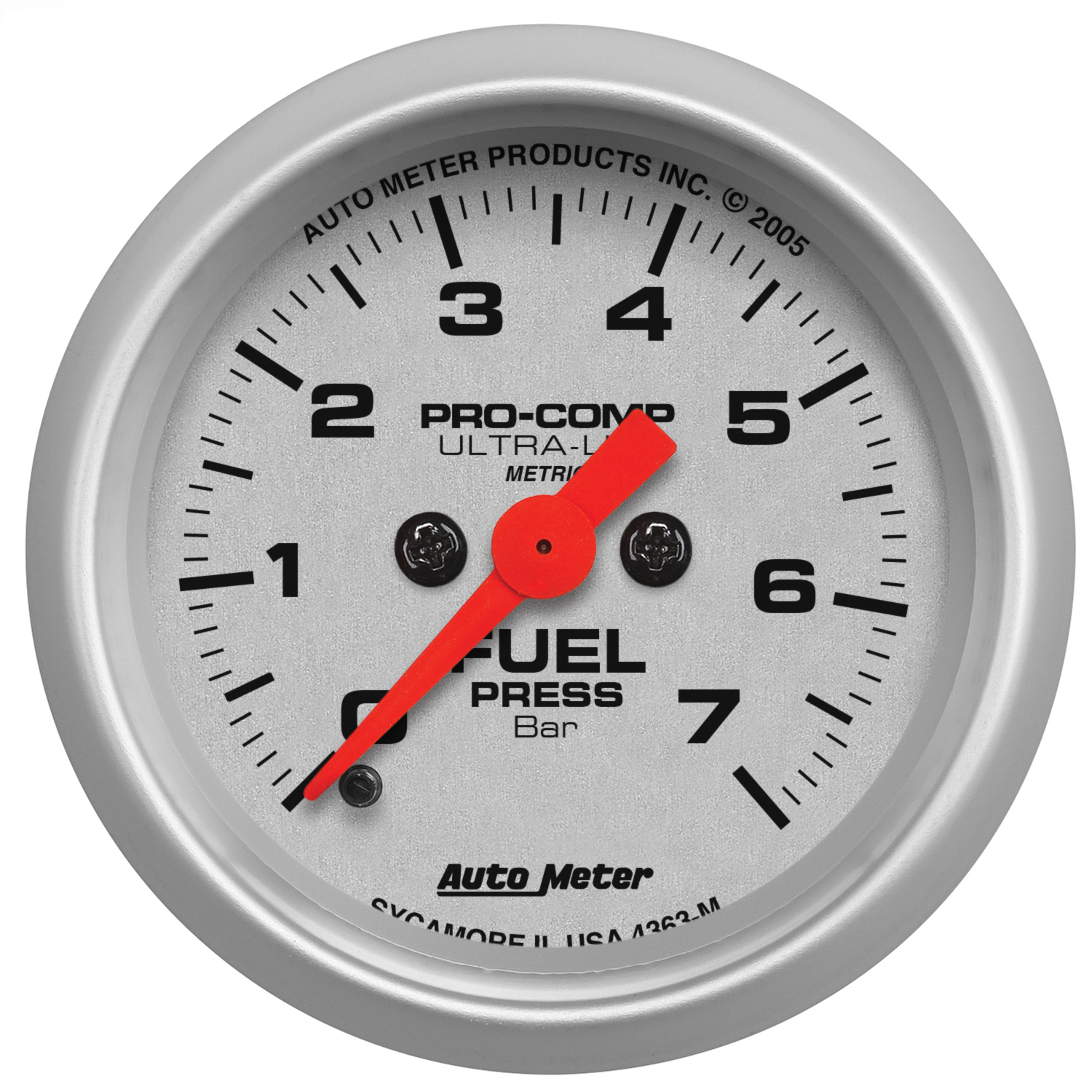

AutoMeter Ultra-Lite 2-1/16″ 0-7 BAR Electric Fuel Pressure Gauge
Engineered for extreme precision in demanding motorsport applications, the AutoMeter 4363-M Ultra-Lite Electric Fuel Pressure Gauge uses digital stepper motor technology to deliver unparalleled accuracy and protect your engine against costly fuel system failures.
Key Features & Highlights
- ☑ Digital Stepper Motor Precision: Race-proven stepper motor drive ensures smooth needle movement and laboratory-grade accuracy while keeping hazardous fluids in the engine bay.
- ☑ Metric Calibration (0-7 BAR): Designed for UK and European motorsport builds requiring metric pressure monitoring.
- ☑ Data Logging Capability: Provides a 0.5 – 4.5V analog voltage output to feed real-time pressure data directly to your ECU or telemetry system.
- ☑ Solid-State Transducer: Includes a heavy-duty 1/8″ NPT stainless steel sensor built to handle high heat, severe vibration, and aggressive fuels.
- ☑ Ultra-Lite Styling: Lightweight aluminum casing, satin anodized dial face, high-contrast red pointer, and classic perimeter incandescent lighting.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Part Number | 4363-M |
| Gauge Series | Ultra-Lite |
| Gauge Diameter | 2-1/16″ (52.4mm) |
| Scale Range | 0 – 7 BAR |
| Gauge Type | Electric Digital Stepper Motor |
| Sensor Thread | 1/8″ NPT Male |
| Analog Output | 0.5V to 4.5V |
| System Voltage | 12V & 16V Compatible |
| Lighting Type | Incandescent Perimeter Dial |
What’s Included in the Box
- AutoMeter Ultra-Lite 4363-M 2-1/16″ 0-7 BAR Electric Gauge
- 1/8″ NPT Solid-State Fuel Pressure Transducer
- Direct Plug-In Wiring Harness (Power & Sensor)
- Bulb and Socket Assembly with Red and Green Light Covers
- Gauge Mounting Bracket & Installation Hardware
As an official UK distributor, JP Racing supplies genuine AutoMeter competition instrumentation backed by expert technical advice and fast UK dispatch. Safeguard your high-performance road or track build with trusted fuel pressure monitoring.
