AutoMeter GM LS Engine Gauge Installation Kit
Streamline your GM LS series engine swap and instrument setup with this dedicated gauge sensor installation kit from AutoMeter.
Product Overview
Installing aftermarket instrumentation onto a GM LS-series V8 engine (LS1, LS2, LS3, LS6, LS7, and Vortec truck engines) often presents a challenge due to metric sensor port threads and tight clearance constraints. The AutoMeter 5284 GM LS Engine Gauge Installation Kit eliminates guessing by providing all required brass adapter fittings, a specialized short-depth electric water temperature sender, and an ECU tachometer signal pull-up resistor in one complete package.
Designed specifically for motorsport builders, engine retrofits, and custom car projects, this kit allows effortless integration of AutoMeter oil pressure and water temperature senders alongside ECU tachometer feeds into any LS swap vehicle.
Key Features
- ☑ LS Swap Compatible: Engineered specifically for GM LS-series cylinder heads and engine blocks.
- ☑ High-Quality Brass Adapters: Solid brass construction ensuring leak-free performance and long-term reliability.
- ☑ Low-Profile Sender: Specially designed short-depth water temp sender prevents interference inside tight LS coolant jackets.
- ☑ ECU Signal Integration: Includes a 10k ohm pull-up resistor for seamless tachometer output operation from LS factory ECUs.
- ☑ Complete Hardware Solution: Saves time and eliminates the frustration of searching for hard-to-find metric adapter sizes.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Part Number | 5284 |
| Application Fitment | GM LS Series Engines (LS1, LS2, LS3, LS6, LS7, L92, Vortec 4.8L/5.3L/6.0L) |
| Adapter 1 Thread Size | M12 x 1.5 Male to 1/8″ NPT Female |
| Adapter 2 Thread Size | M16 x 1.5 Male to 1/8″ NPT Female |
| Temperature Sensor Type | 340° Short-Depth Electric Water Temperature Sender (1/8″ NPT) |
| Tachometer Resistor | 10k Ohm 1/2 Watt Pull-Up Resistor |
| Adapter Material | Solid Brass |

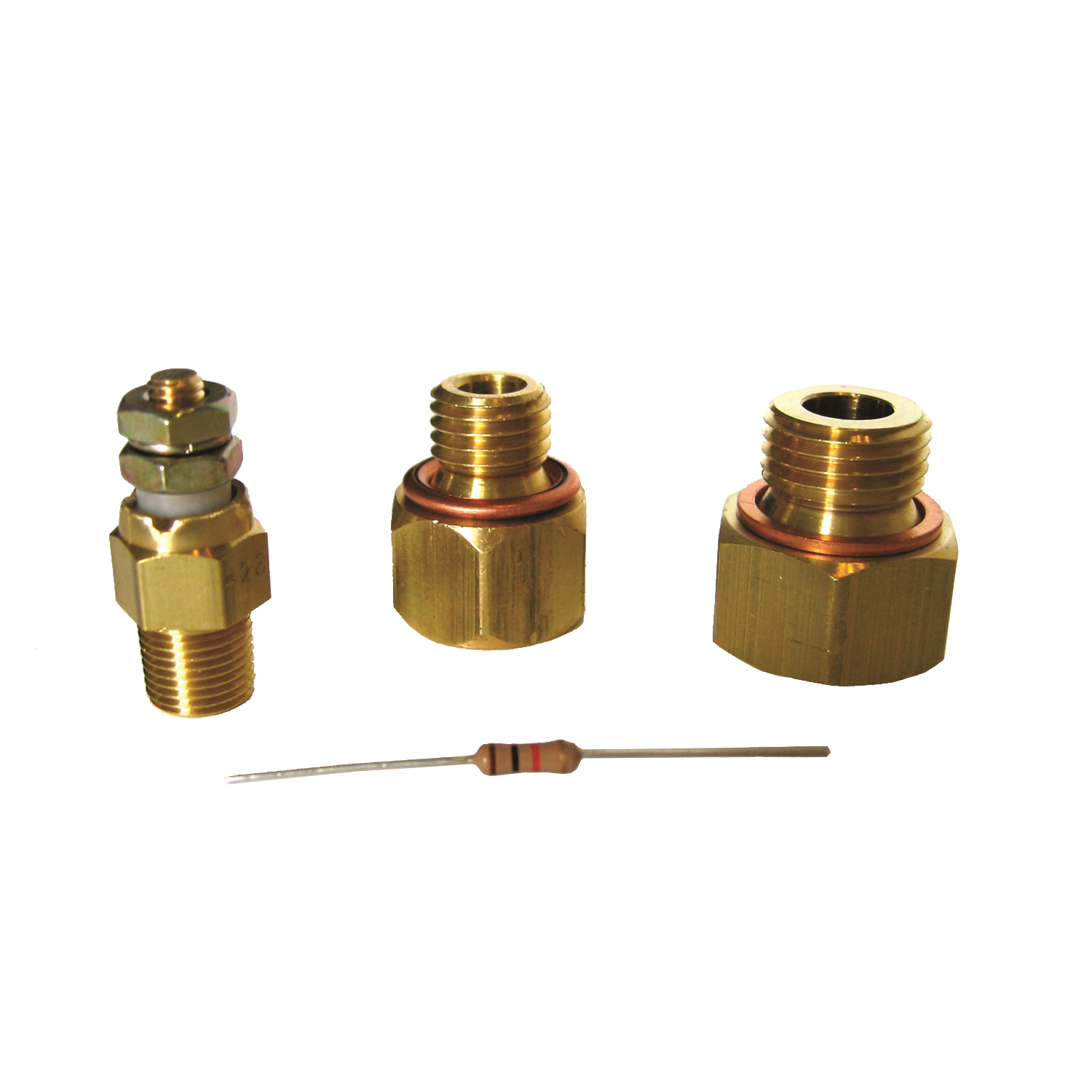

What’s Included in the Box
- 1x M12 x 1.5 Male to 1/8″ NPT Female Brass Adapter Fitting
- 1x M16 x 1.5 Male to 1/8″ NPT Female Brass Adapter Fitting
- 1x Short-Depth 340° Electric Water Temperature Sender (1/8″ NPT)
- 1x 10k Ohm 1/2 Watt Tachometer Signal Pull-Up Resistor
- 1x Comprehensive Full-Color Installation Guide
Built to AutoMeter’s competition-proven standards, the 5284 LS gauge installation kit guarantees accurate sensor readings and hassle-free retrofits. Order from JP Racing today for expert technical support and fast UK dispatch.
