Description

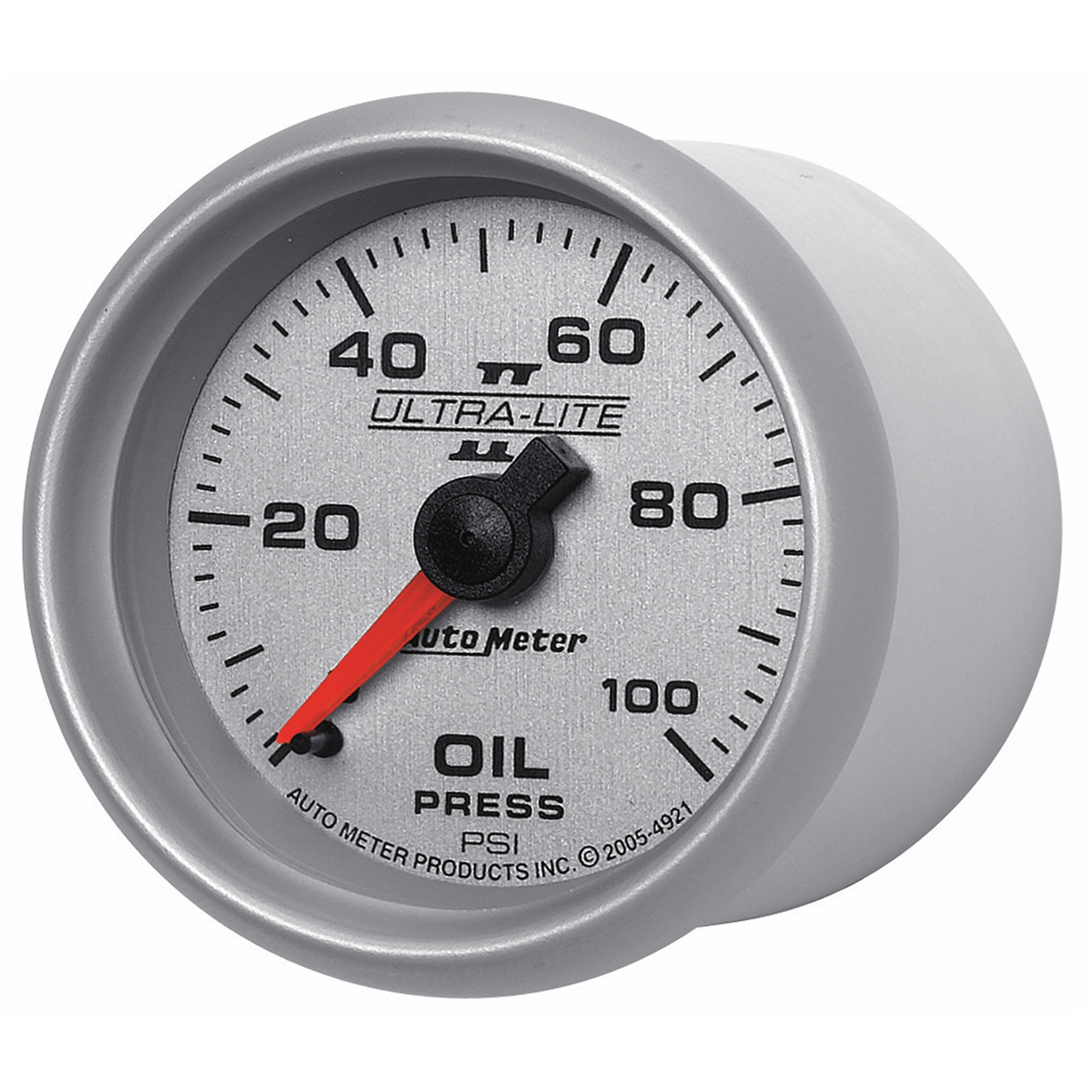

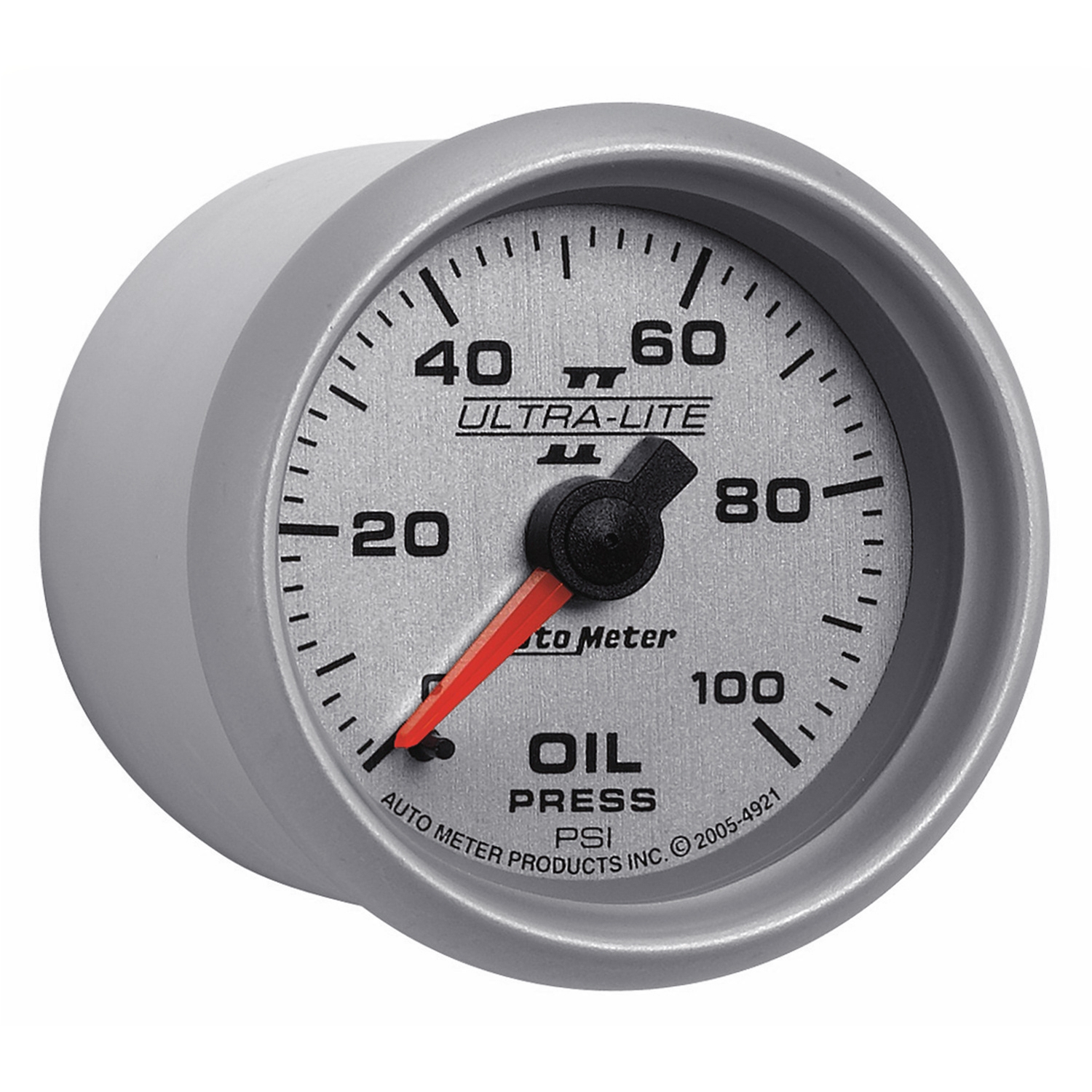

AutoMeter Ultra-Lite II 2-1/16″ Mechanical Oil Pressure Gauge (0-100 PSI)
Race-proven accuracy and high-contrast night visibility designed for demanding automotive and motorsport applications.
Overview & Performance
The AutoMeter 4921 Ultra-Lite II Mechanical Oil Pressure Gauge delivers real-time engine health monitoring with zero reliance on vehicle electrical systems for pressure readings. Engineered around AutoMeter’s advanced bourdon tube movement, this 2-1/16″ (52.4mm) full-sweep gauge offers precise pressure tracking from 0 to 100 PSI.
Designed with lightweight aluminum construction, satin anodized silver dial face, high-contrast black markings, and a vivid red needle pointer, the Ultra-Lite II series updates iconic race aesthetic with modern white LED through-the-dial backlighting for effortless night reading.
Key Features
- ☑ Advanced Bourdon Tube Movement: Delivers race-tested accuracy, high durability, and rapid response in harsh operational environments.
- ☑ Standalone Mechanical Operation: Requires no electrical power to sense oil pressure, making it universally compatible with race and street vehicles.
- ☑ Through-The-Dial White LED Lighting: Features modern white backlighting for crystal-clear night visibility.
- ☑ Ultra-Lite II Aesthetics: Lightweight aluminum construction with satin anodized silver face, black markings, red pointer, and silver bezel.
- ☑ Standard 2-1/16″ Fitment: Fits standard 52.4mm dashboard openings, pod mounts, and custom instrument panels.
Quick Specs
- Gauge Type: Mechanical Oil Pressure
- Diameter: 2-1/16″ (52.4mm)
- Range: 0 – 100 PSI
- Sweep: Full Sweep
- Lighting: White LED (Through-the-dial)
- Thread Port: 1/8″ NPT
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 4921 |
| Product Series | Ultra-Lite II |
| Gauge Diameter | 2-1/16″ (52.4 mm) |
| Gauge Type | Mechanical |
| Pressure Range | 0 – 100 PSI |
| Face / Bezel Finish | Silver Satin Face / Silver Bezel |
| Lighting Type | Through-The-Dial White LED |
| Input Connection | 1/8″ NPT Male / Compression Fittings |
What’s Included in the Box
- AutoMeter 4921 Ultra-Lite II 2-1/16″ Mechanical Oil Pressure Gauge
- 10 ft. 1/8″ Nylon Pressure Tubing Line
- 1/8″ NPT Compression Fitting Kit
- 1/4″ NPT Adapter Fitting
- Mounting Bracket Hardware Kit (#2230)
- Installation Accessories & Wiring Harness for LED Lighting
Engineered for high-stress track applications and daily performance builds alike, AutoMeter instrumentation represents the industry standard in vehicle monitoring. Order your AutoMeter 4921 Ultra-Lite II gauge from JP Racing for authentic quality, technical expertise, and rapid UK delivery.
