Description
Part Number: 4999

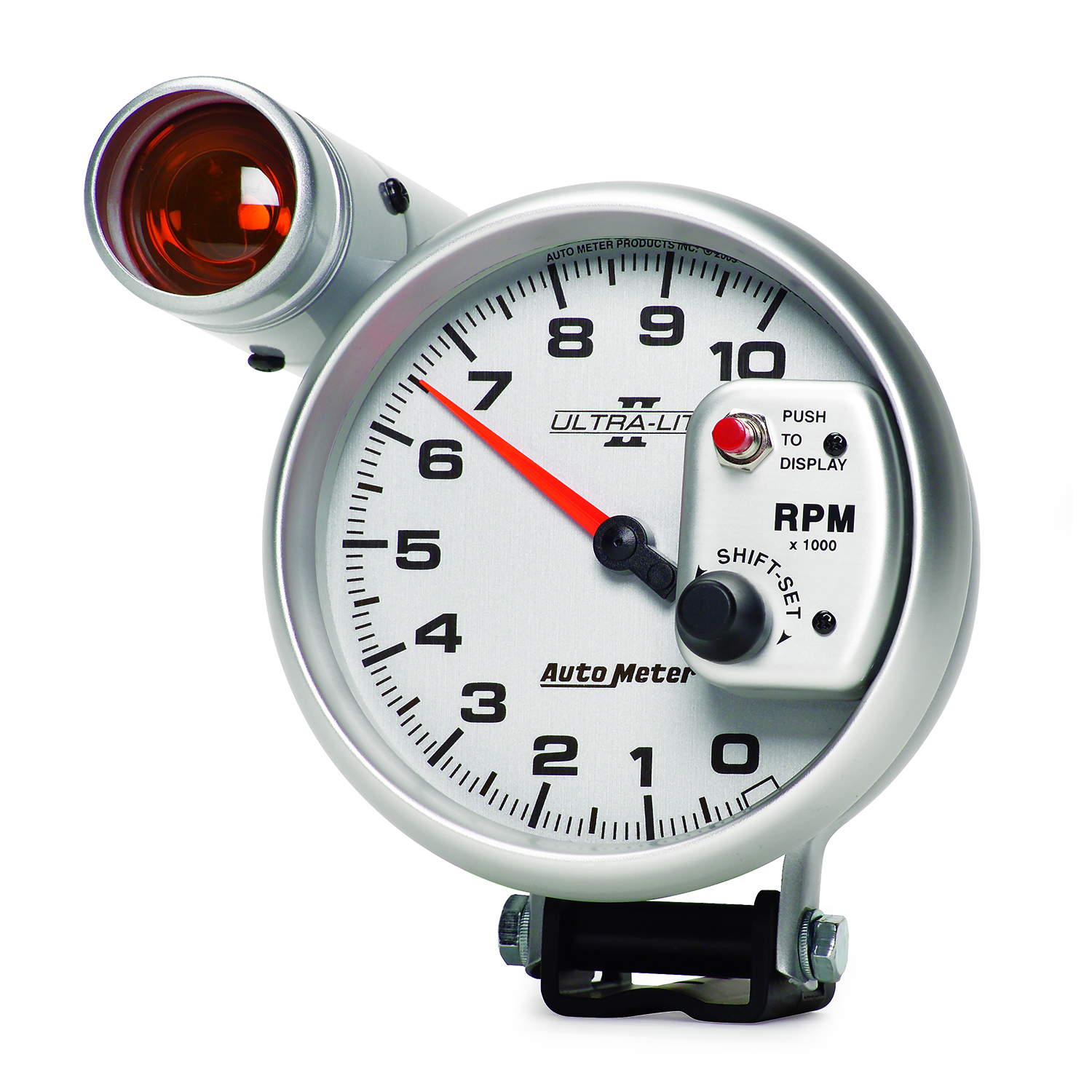

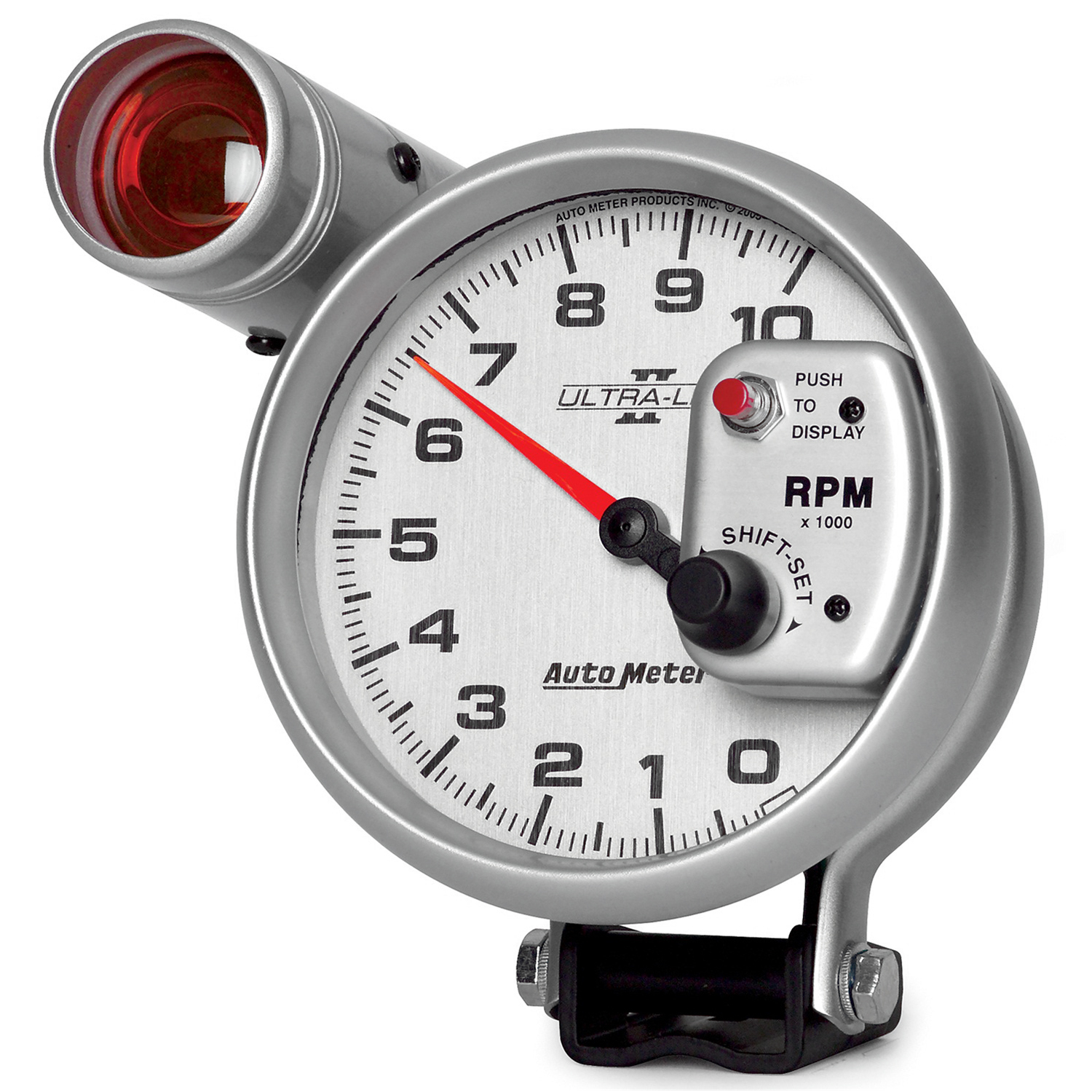

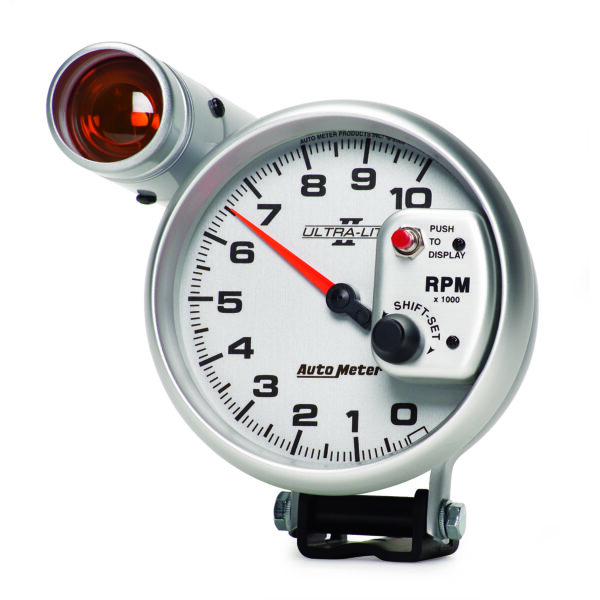

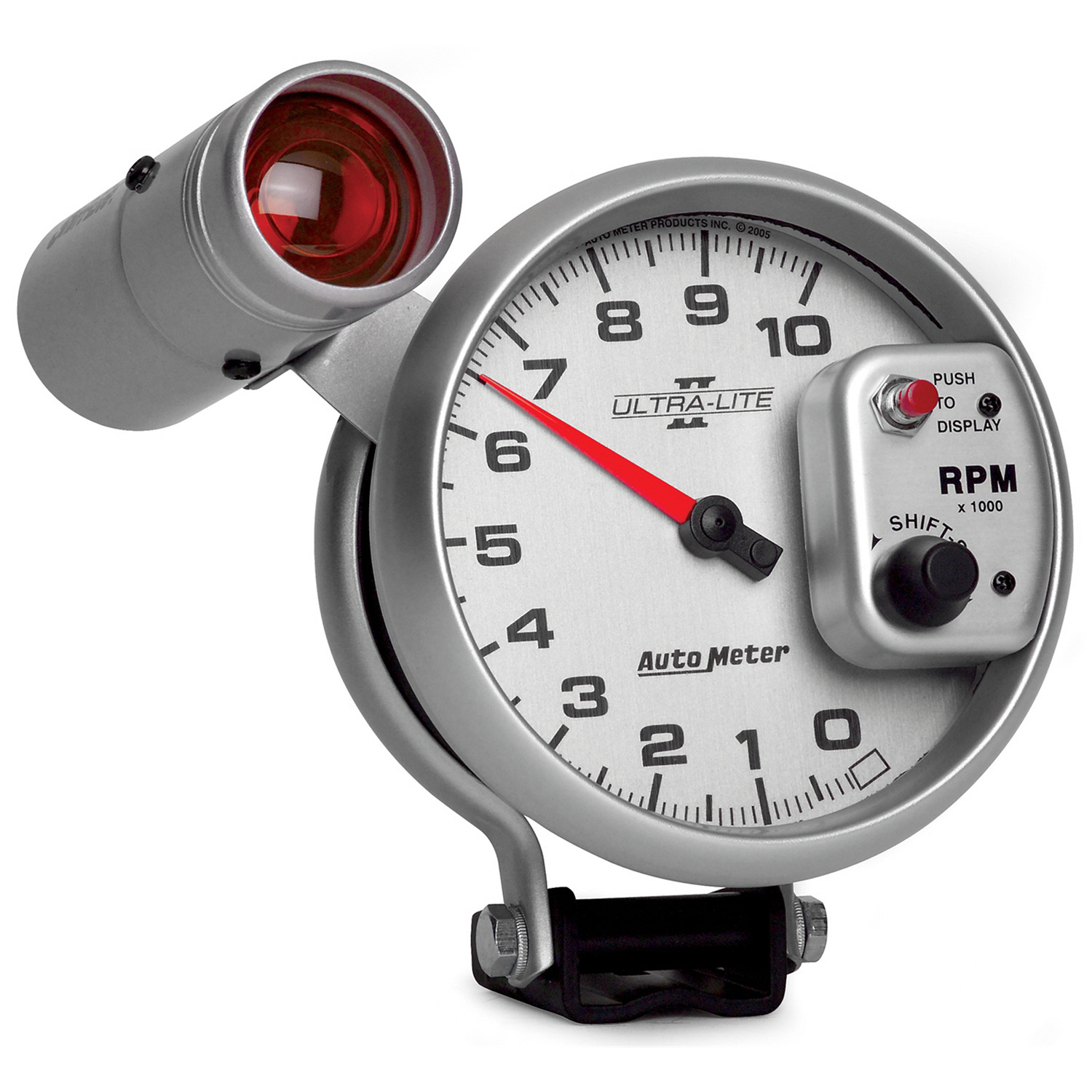

AutoMeter Ultra-Lite II 5″ Pedestal Tachometer Gauge (0-10,000 RPM)
Engineered for extreme precision in demanding motorsport environments, the AutoMeter 4999 Ultra-Lite II 5″ pedestal tachometer features a lightning-fast air-core movement and an external shift light for exact gear changes.
Key Features
- ☑ Patented Air-Core Movement: Sweeps from 0 to 10,000 RPM in just 333 milliseconds for instant needle response.
- ☑ Ultra-Lite II White LED Lighting: Advanced through-the-dial LED illumination provides maximum visibility in night and day conditions.
- ☑ External Shift Light: High-intensity user-programmable shift light ensures optimum gear change timing.
- ☑ Versatile Ignition Compatibility: Works with 1-4 pulse ignition signals (2 to 8 cylinder engines) on 12V and 16V systems.
- ☑ Rugged Pedestal Mount: Secure 5-inch pedestal mount design suitable for dashboard or pillar mounting.
Technical Specifications
| Manufacturer | AutoMeter |
|---|---|
| Part Number | 4999 |
| Gauge Series | Ultra-Lite II |
| Gauge Diameter | 5 in. (127 mm) |
| RPM Range | 0 – 10,000 RPM |
| Movement Type | Electric Air-Core |
| Face / Dial Color | Silver (Day) / Dark Dial White LED (Night) |
| Pointer Color | Fluorescent Red |
| Lighting Type | Through-The-Dial White LED |
| Mounting Type | Pedestal Mount |
| Shift Light | External LED Shift Light Included |
| System Voltage | 12V and 16V Compatible |
| Cylinder / Pulse Compatibility | 1, 2, 3, or 4 pulse per revolution (2, 4, 6, 8 cylinder) |
What’s Included in the Box
- AutoMeter 4999 Ultra-Lite II 5″ Pedestal Tachometer
- External Shift Light Assembly
- Pedestal Mounting Bracket & Hardware
- Wiring Harness & Installation Accessories
- Quick Start Installation Guide
AutoMeter instrumentation sets the benchmark for competition accuracy, durability, and race victories across world motorsport. As an authorized UK dealer, JP Racing supplies 100% genuine AutoMeter products backed by technical expertise and fast UK delivery.
