Description
Part Number: 6854

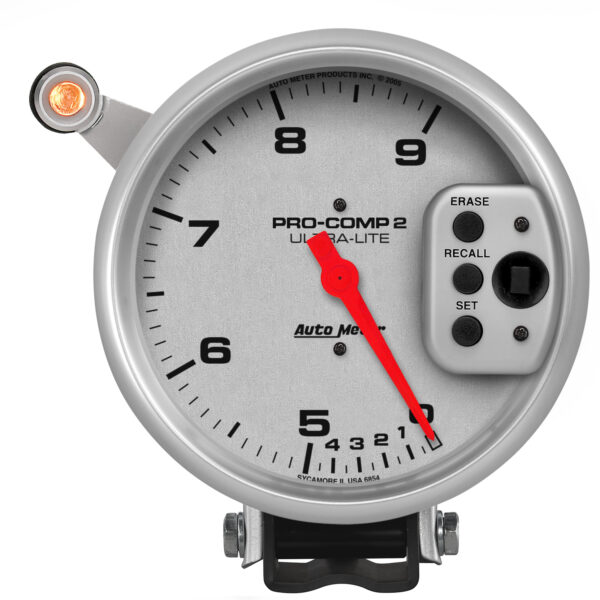

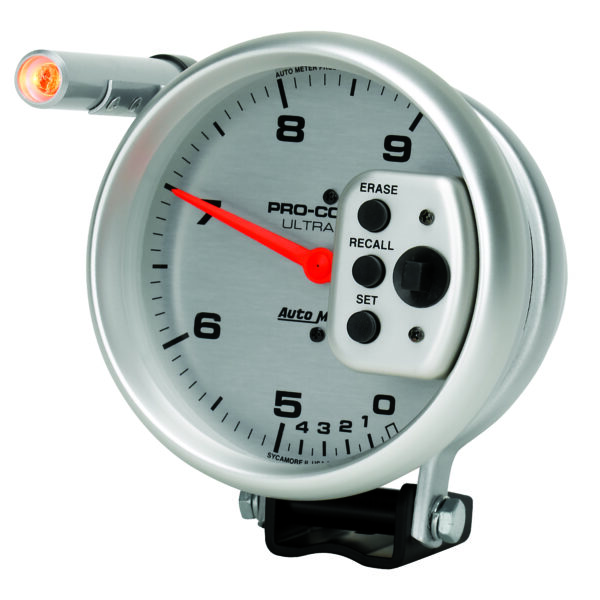

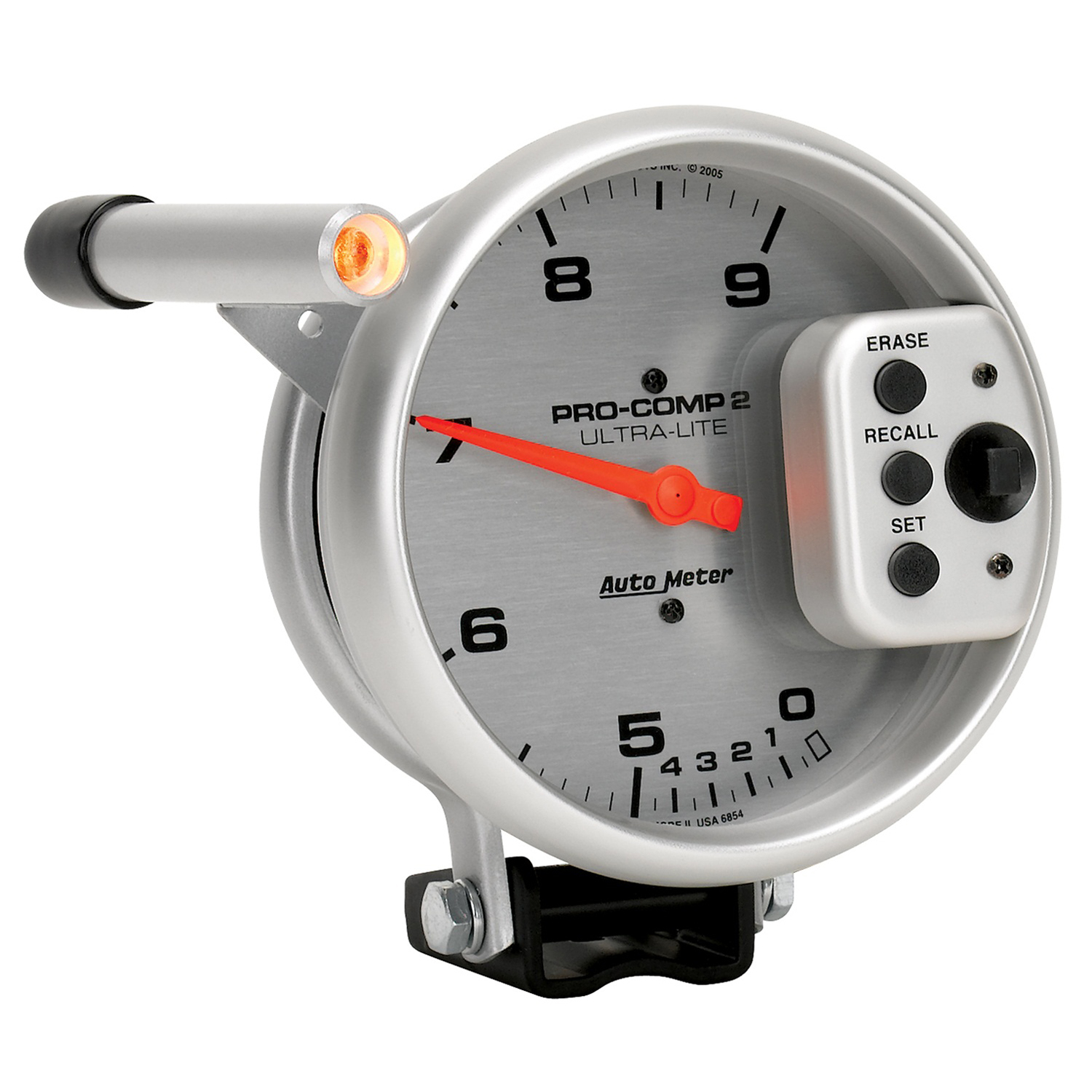

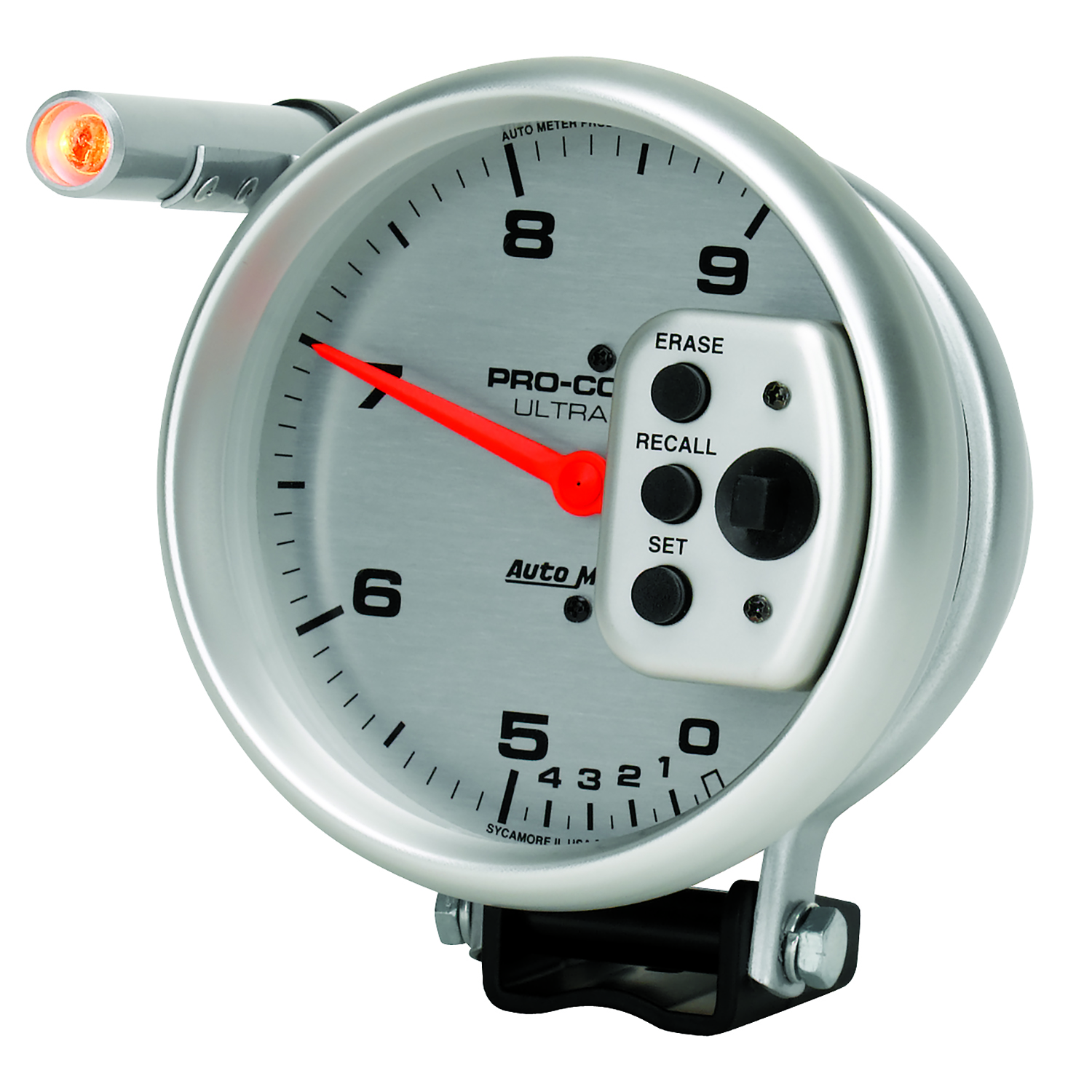

AutoMeter Ultra-Lite 5″ Pedestal Tachometer (0-9,000 RPM)
Precision air-core electric tachometer featuring a dual-range dial face, peak RPM memory recall, and a high-visibility programmable Quick-Lite shift indicator.
Key Features
- ☑ Patented Air-Core Movement: Rapid needle movement capable of sweeping 0 to full scale in just 333 milliseconds.
- ☑ Dual-Range Dial Face: Specially calibrated scale offers high resolution in the upper RPM band where precise gear shifts matter most.
- ☑ Peak RPM Memory: One-touch ‘tattle-tale’ memory recall function to review maximum engine speed between track passes.
- ☑ Quick-Lite Shift Light: External user-programmable shift light ensures optimum gear changes at peak power output.
- ☑ Universal Ignition Compatibility: Works with 0.5 to 6 pulse ignition signals (1 to 12 cylinder engines) across points, electronic, and race ignitions.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Part Number | 6854 |
| Gauge Series | Ultra-Lite |
| Gauge Diameter | 5″ (127mm) |
| Mounting Style | Pedestal Mount |
| RPM Range | 0 – 9,000 RPM (Dual Range) |
| Gauge Type | Air-Core Electrical |
| Dial Color | Silver Face with Fluorescent Orange Pointer |
| Lighting | Traditional Incandescent Perimeter Lighting |
| System Voltage | 12V and 16V DC Compatible |
What’s Included in the Box
- AutoMeter 6854 Ultra-Lite 5″ Dual Range Tachometer
- External Quick-Lite Shift Light Assembly
- Pedestal Mount Base, Shock Strap & Hardware
- Wiring Harness and Installation Connectors
- Red and Green Light Filter Covers
- Detailed Installation Guide
AutoMeter performance instrumentation has powered championship-winning race teams worldwide for decades. When buying through JP Racing, you receive authentic AutoMeter motorsport equipment backed by dedicated UK technical guidance, full manufacturer warranty support, and reliable fast shipping across the UK.
