Description
Part Number: 6856

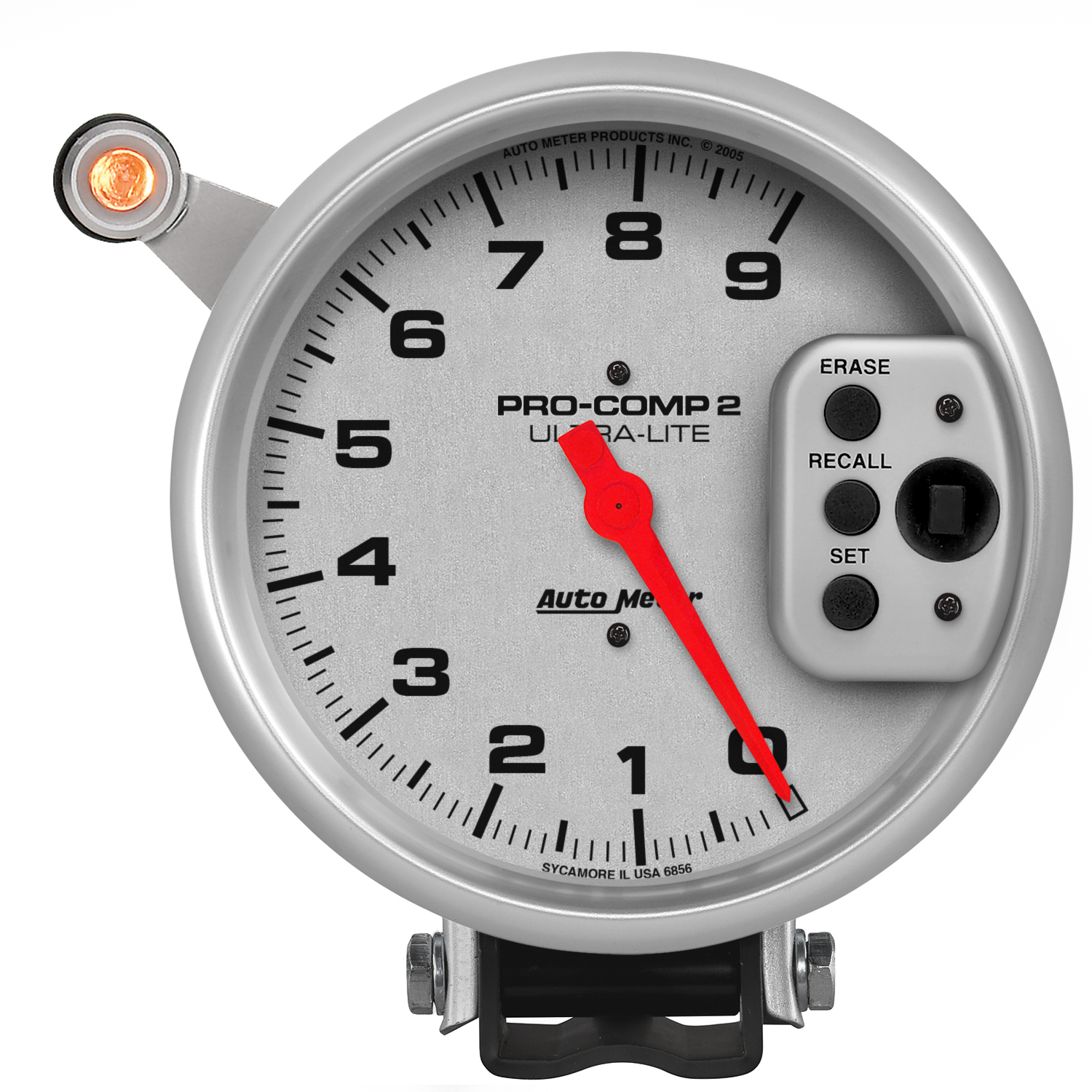

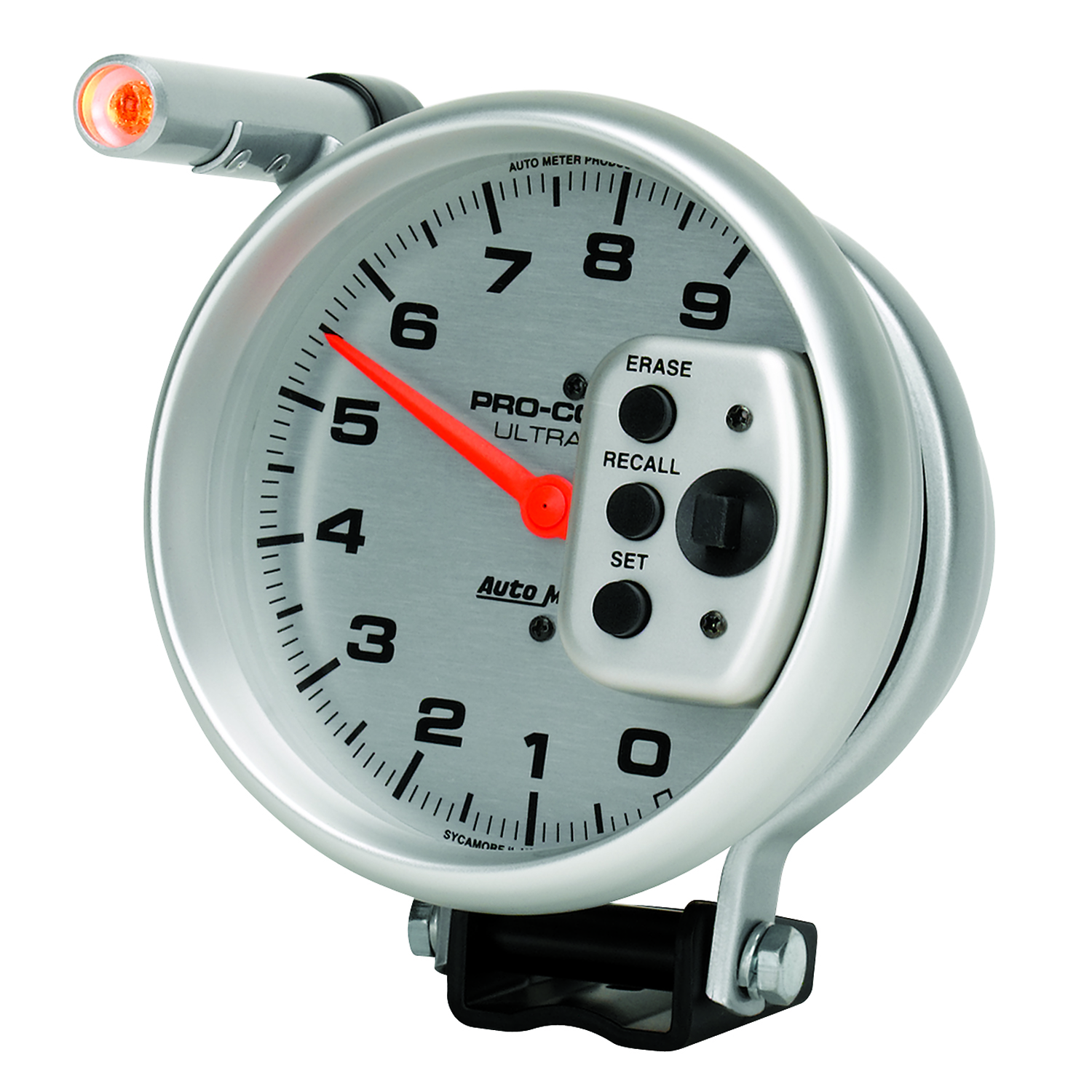

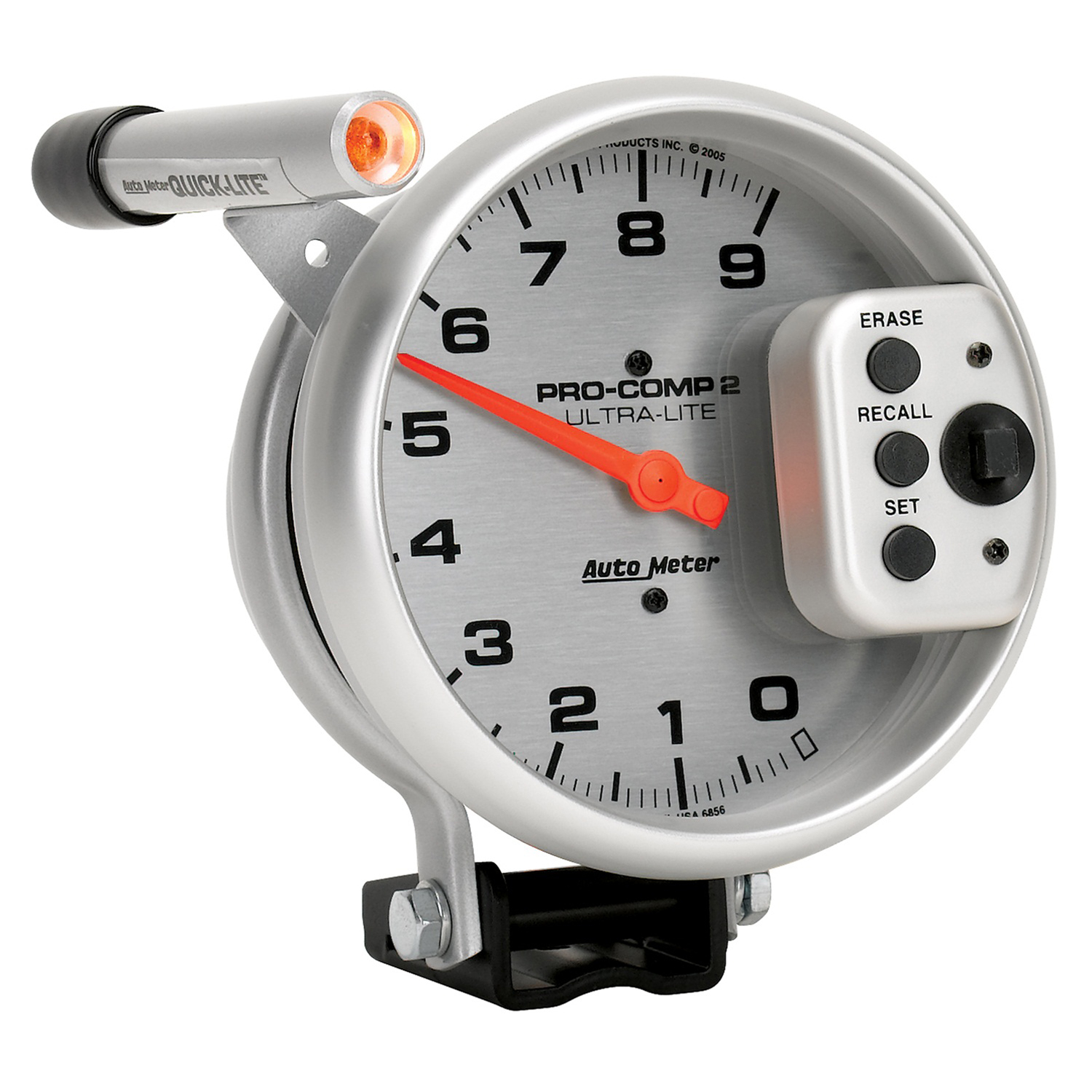

AutoMeter Ultra-Lite 5″ Pedestal Mount Tachometer (0-9000 RPM)
Race-proven 5-inch electric air-core tachometer featuring external Quick Lite shift light and one-touch peak RPM memory recall for competitive motorsport applications.
Key Features & Performance Highlights
- ☑ Patented high-speed air-core motor moves needle 0-full scale in 333ms
- ☑ External Quick Lite shift light for precision gear changes
- ☑ One-touch Peak RPM Memory recall (“tattle-tale”) for post-run analysis
- ☑ Classic silver Ultra-Lite dial face with high-contrast fluorescent red needle
- ☑ Works with 0.5 to 6 pulse ignition signals (1 to 12-cylinder engines)
- ☑ Compatible with standard 12V and 16V race electrical systems
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 6856 |
| Gauge Series | Ultra-Lite |
| Gauge Type | Pedestal Mount Tachometer |
| Gauge Size | 5″ (127mm) |
| RPM Range | 0 – 9,000 RPM |
| Movement Type | Electric Air-Core |
| Dial Color | Silver |
| Bezel Style | Brushed Aluminum Super Bezel |
| Lighting | Perimeter Incandescent (12V/16V) |
| Ignition Compatibility | 0.5 – 6 Pulse (1-12 Cylinders) |
What’s Included in the Box
- AutoMeter 6856 Ultra-Lite 5″ Pedestal Tachometer Gauge
- External Quick Lite Shift Light Assembly
- Pedestal Mounting Base & Strap Hardware Kit
- Bulb & Socket Assembly with Red/Green Lens Covers
- Wiring Harness & Mounting Hardware
Built to withstand extreme vibration and harsh motorsport environments, AutoMeter instruments represent the benchmark in professional race timing and engine monitoring. Available with fast UK shipping and technical backup from the team at JP Racing.
