Description
Part Number: 200766-33

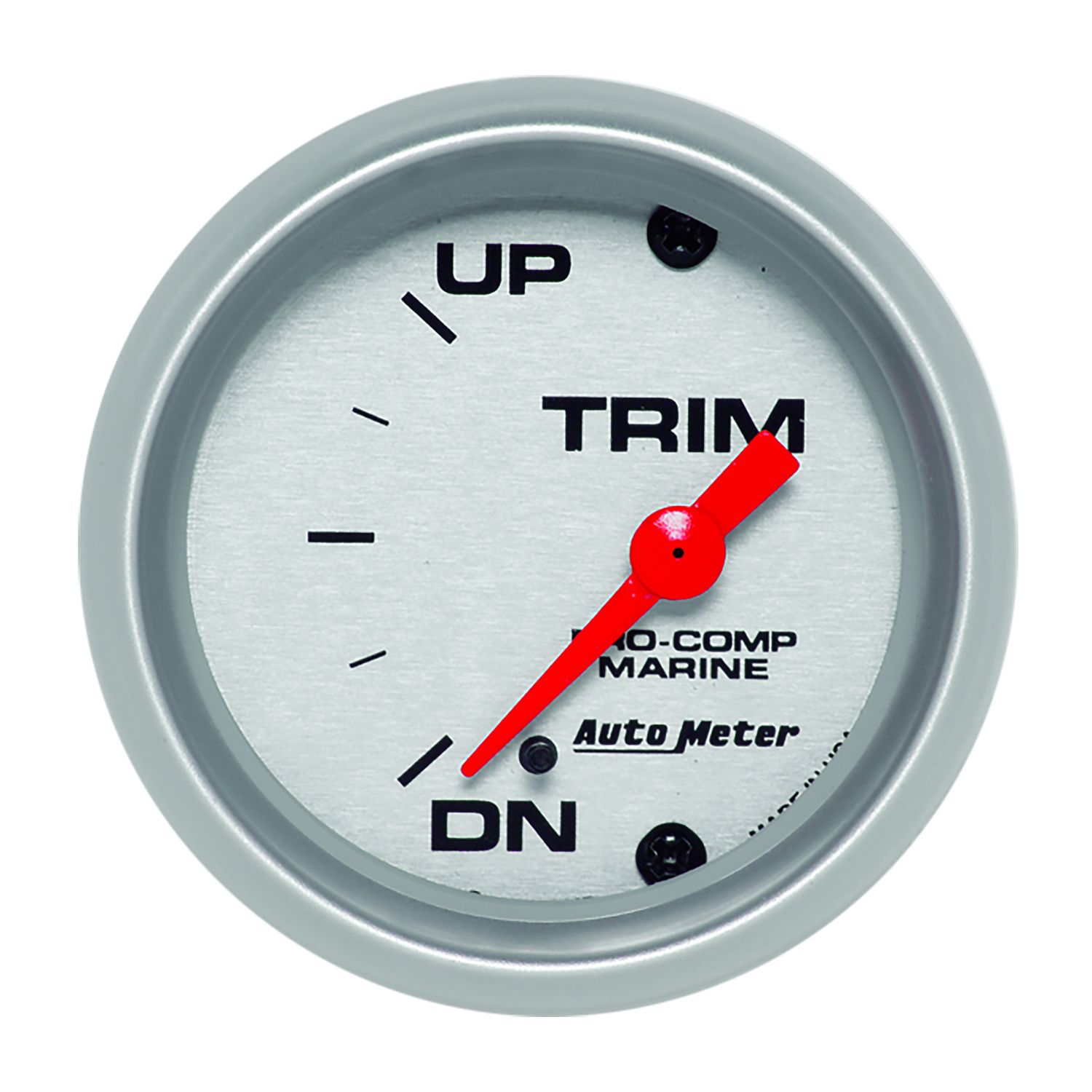

AutoMeter Marine Silver Ultra-Lite 2-1/16″ Electric Trim Level Gauge
Engineered for demanding marine environments, the AutoMeter Marine Silver Ultra-Lite 2-1/16″ Electric Trim Level Gauge delivers race-proven accuracy and instant outdrive trim visibility on the water.
Key Features
- ☑ Sealed Marine Bezel: Features a front-sealed bezel design to prevent water intrusion and condensation in marine settings.
- ☑ UV-Protected Pointer Paint: High-contrast red pointer coated with UV-resistant paint to withstand harsh sunlight without fading.
- ☑ 0-90 Ohm Resistance Range: Calibrated specifically to work with standard 0 Ohm Down / 90 Ohm Up trim level sending units.
- ☑ 12V and 16V Compatibility: Versatile electrical movement compatible with standard marine 12-volt and race-grade 16-volt systems.
- ☑ Classic Perimeter Lighting: Traditional incandescent perimeter illumination for clear, glare-free night navigation.
Technical Specifications
| Brand | AutoMeter |
|---|---|
| Manufacturer Part Number | 200766-33 |
| Gauge Series | Marine Silver Ultra-Lite / Pro-Comp Marine |
| Gauge Type | Electric Trim Level Gauge |
| Gauge Diameter | 2-1/16″ (52.4mm) |
| Sender Resistance Range | 0 Ohm Down / 90 Ohm Up |
| Face / Bezel Color | Silver Face, Silver Bezel, Black Markings |
| Voltage Range | 12V & 16V Marine Systems |
| Illumination | Perimeter Incandescent Lighting |
What’s Included in the Box
- 1 x AutoMeter 200766-33 Marine Silver Ultra-Lite 2-1/16″ Trim Level Gauge
- 1 x Bulb and Socket Assembly
- Red and Green Bulb Covers
- Corrosion-Resistant Mounting Hardware
- Installation Instructions
Combining AutoMeter’s legendary Pro-Comp racing instrumentation with full marine weatherproofing, this 200766-33 trim gauge guarantees dependable performance season after season. Order today from JP Racing for expert UK technical support and fast delivery.
