Description
Part Number: AF49-1003

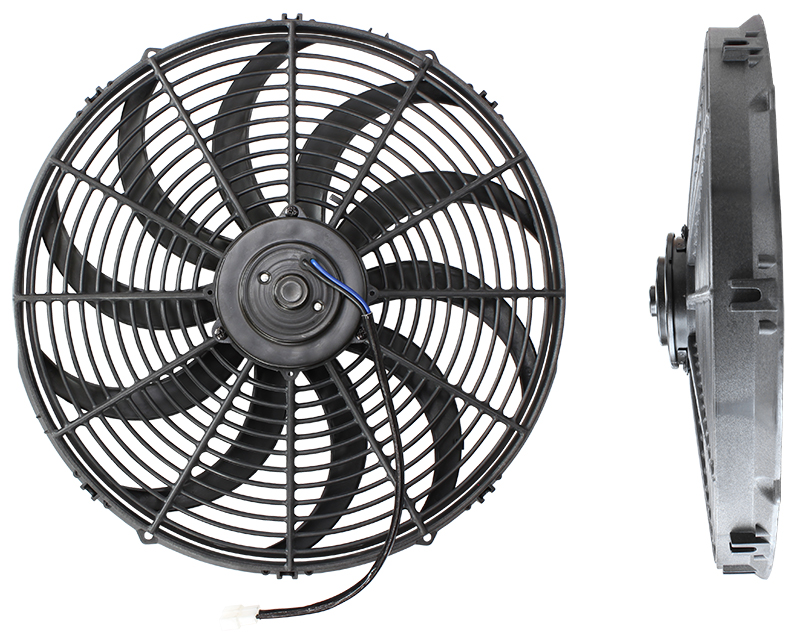

Aeroflow 16″ Curved Blade Electric Thermo Fan (2000 CFM)
Deliver high-volume airflow across radiators and auxiliary coolers with Aeroflow’s heavy-duty 16-inch reversible thermo fan.
Key Features
- ☑ High Airflow Rating: Delivers an impressive 2,000 CFM output for superior engine and fluid cooling performance.
- ☑ Efficient Curved Blades: Aerodynamically engineered curved blades reduce operating noise while maximizing velocity through heat exchangers.
- ☑ Fully Reversible Flow: Comes configured as a puller fan; easily converts to a pusher fan by reversing blade orientation and wiring polarity.
- ☑ Weatherproof Motor: Features an IP68 weatherproof rating for high durability in harsh motorsport and road environments.
- ☑ Low Current Draw: Draws just 10 Amps @ 13.4V to keep electrical system strain to a minimum.
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Part Number | AF49-1003 |
| Fan Blade Diameter | 16″ (406mm) |
| Mounting Diameter | 16-21/64″ (415mm) |
| Dimensions | 416mm x 403mm x 84mm (3-1/4″ overall depth) |
| Airflow Rating | 2,000 CFM |
| Blade Design | Curved Blades (Reversible) |
| Operating Voltage | 12V DC |
| Current Draw | 10 Amps @ 13.4V (15A Fuse Recommended) |
| Weatherproof Rating | IP68 |
What’s Included in the Box
- 1 x Aeroflow 16″ Curved Blade Electric Thermo Fan Assembly (AF49-1003)

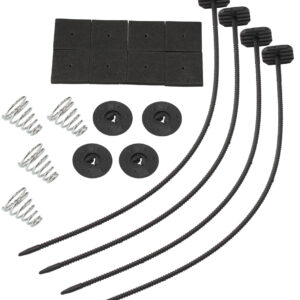

- 1 x Universal Fan Mounting / Hardware Kit
Aeroflow Performance products are manufactured to stringent quality standards to meet the demands of street performance, drag racing, and track applications. Order your AF49-1003 electric fan from JP Racing today for fast UK shipping and dedicated technical support from our team of automotive specialists.
