Description
Part Number: AF64-2039BLK

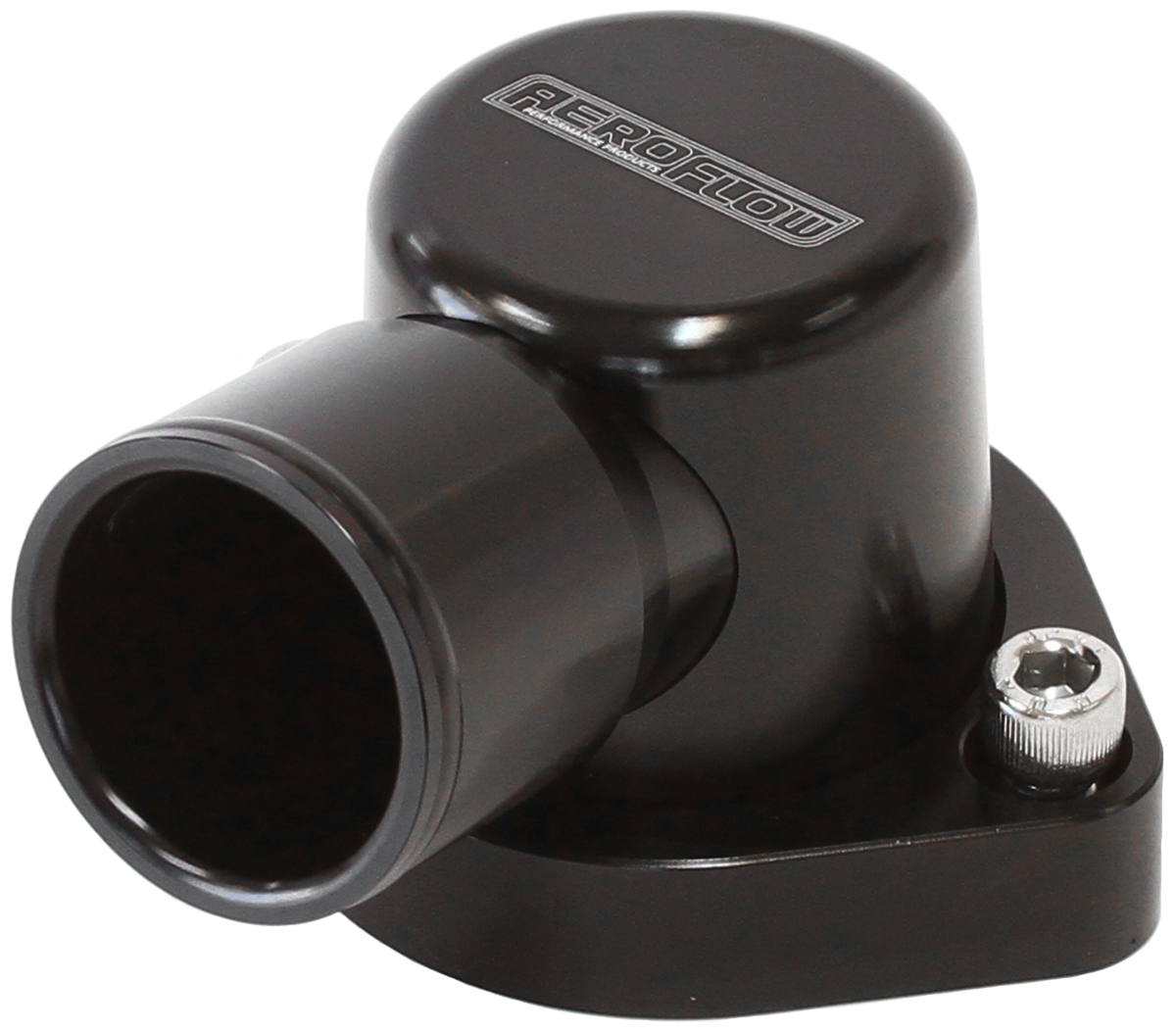

Aeroflow Billet 90° Swivel Thermostat Housing – Ford 302-351 Cleveland (Black)
Precision CNC-machined T6-6061 billet aluminium thermostat housing with 360° swivel rotation for flexible cooling routing on Ford Cleveland V8 powertrains.
Key Features
- ☑ 360-Degree Swivel Rotation: Three-piece billet design allows full 360° rotation of the outlet neck for effortless hose routing in tight engine bays.
- ☑ Leak-Free O-Ring Seal: Built-in rubber O-ring base flange seal replaces failure-prone traditional paper gaskets.
- ☑ CNC Billet Aluminium: Machined from high-strength T6-6061 billet aluminium for extreme durability and heat tolerance.
- ☑ Adaptable Outlet Thread: Features female 1-1/4″-20 internal outlet threads to accept AN adapter fittings or custom hose barbs.
- ☑ Anodised Motorsport Finish: Anodised black finish offers superior corrosion resistance and a sleek under-bonnet finish.
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| MPN | AF64-2039BLK |
| Engine Fitment | Ford 302-351 Cleveland V8 (Accepts standard Ford thermostat) |
| Material | T6-6061 Billet Aluminium |
| Finish | Black Anodised |
| Outlet Angle | 90° (360° Swivel Capable) |
| Hose Outlet Size | 38.25mm (1-1/2″) Barb |
| Internal Outlet Thread | 1-1/4″-20 Female Thread |
| Bolt Centre-to-Centre | 71.1mm (2-51/64″) |
| Overall Dimensions | Height: 55.85mm (2-3/16″), Length: 86.1mm (3-3/8″), Body Width: 64.80mm (2-35/64″) |
What’s Included in the Box
- 1 x Aeroflow Billet 90° Swivel Thermostat Housing in Black (PN AF64-2039BLK)
- 1 x Premium Rubber Base O-Ring Seal
- 2 x Mounting Hardware Screws
Built to rigid aerospace quality controls, Aeroflow Performance components are tested for the demands of high-performance driving. At JP Racing, we back every order with fast UK shipping and knowledgeable technical service to guarantee seamless engine cooling integration.
