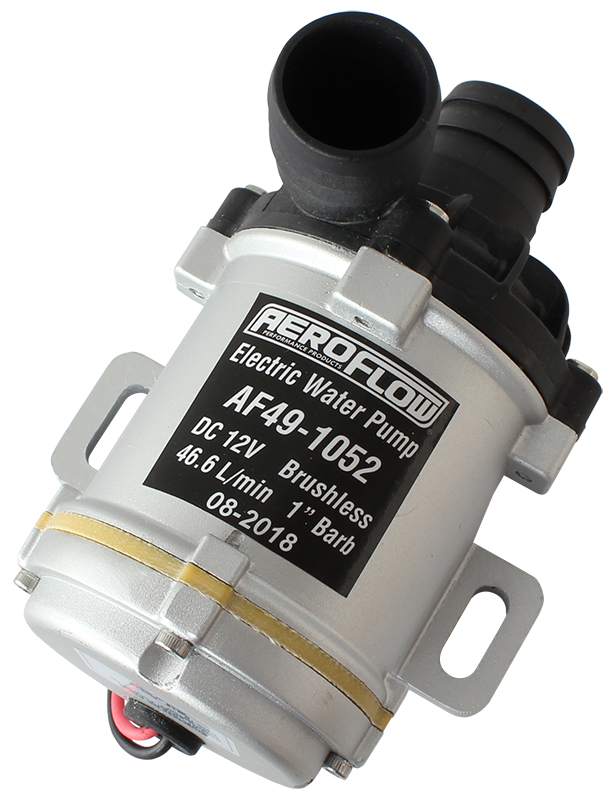

Aeroflow Brushless Remote Electric Water Pump (1″ Barb, 46.6 LPM)
Engineered for high-flow auxiliary cooling, supercharger intercoolers, and remote engine coolant circulation.
Product Overview
The Aeroflow Performance AF49-1052 brushless electric water pump delivers high-efficiency, reliable fluid circulation for high-performance automotive and motorsport applications. Featuring an advanced magnetically driven brushless motor, this pump eliminates internal carbon brushes and dynamic shaft seals, removing wear points and preventing shaft seal leakage under race conditions. Delivering up to 46.6 Litres Per Minute (2800 LPH) through its 1″ (25.4mm) hose barbs, it is the ideal remote pump for LSA supercharger chargecoolers, turbo intercooler loops, or auxiliary engine cooling systems.
Key Features
- ☑ High-flow brushless magnetic drive motor for ultimate reliability
- ☑ Delivers up to 46.6 Litres Per Minute (2800 LPH) flow rate
- ☑ Seal-less design eliminates fluid leakage and shaft wear
- ☑ Dual 1″ (25.4mm / 27mm O.D.) hose barb fittings
- ☑ Low current draw of 5.6 Amps Max at 12V DC
- ☑ Compact 60mm diameter body for easy remote engine bay fitment
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Part Number | AF49-1052 |
| Pump Type | Remote Brushless Electric Water Pump |
| Max Flow Rate | 46.6 LPM (2800 LPH) |
| Inlet / Outlet Barb | 1″ Barb (25.4mm ID / 27mm OD) |
| Operating Voltage | 12V DC (10V – 14V DC) |
| Max Current / Power | 5.6 Amps / 67.2 Watts |
| Max Pressure Head | 7 Metres |
| Pump Dimensions | 96mm (H) x 60mm (Dia) x 123mm (L) |
| Mounting Centre | 77mm Centre-to-Centre |
| Fluid Temp Range | -10°C to 105°C (-10°F to 221°F) |
What’s Included in the Box
- 1x Aeroflow AF49-1052 Brushless Remote Electric Water Pump
- 1x Integrated Rubber-Isolator Mounting Bracket
- 1x Direct Plug Wiring Harness Connector
Tested under demanding track conditions, Aeroflow Performance products deliver exceptional reliability and performance. Purchase your AF49-1052 water pump from JP Racing for expert UK technical support and fast UK shipping.
