Description
Part Number: WP101SHD

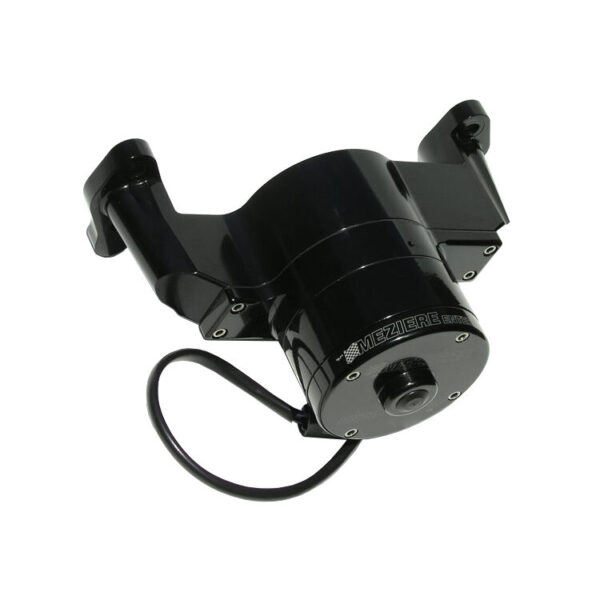

Meziere 100 Series Heavy Duty Electric Water Pump – Small Block Chevy (Black)
Maximise your cooling efficiency and unleash lost engine horsepower with the Meziere WP101SHD heavy-duty electric water pump. Designed specifically for Small Block Chevy applications, this high-performance pump delivers an outstanding 42 GPM flow rate encased in lightweight, CNC-machined billet aluminum.
Key Features
- ☑ Heavy-duty electric motor rated for 3,000+ operating hours
- ☑ High-volume 42 GPM (gallons per minute) free flow rating
- ☑ Eliminates parasitic mechanical drag to free up engine horsepower
- ☑ Show-quality black anodized CNC-machined billet aluminum housing
- ☑ Stainless steel main shaft with high-performance ceramic seal
- ☑ Clears Jesel cam belt drives and most roots-style blower drives
Technical Specifications
| Engine Fitment | Small Block Chevy (SBC) |
|---|---|
| Flow Rate | 42 GPM Free Flow |
| Motor Type | Heavy Duty (3000+ Hour Life Expectancy) |
| Current Draw | 6 to 7 Amps @ 12V |
| Inlet Port Thread | 1″ NPT Female |

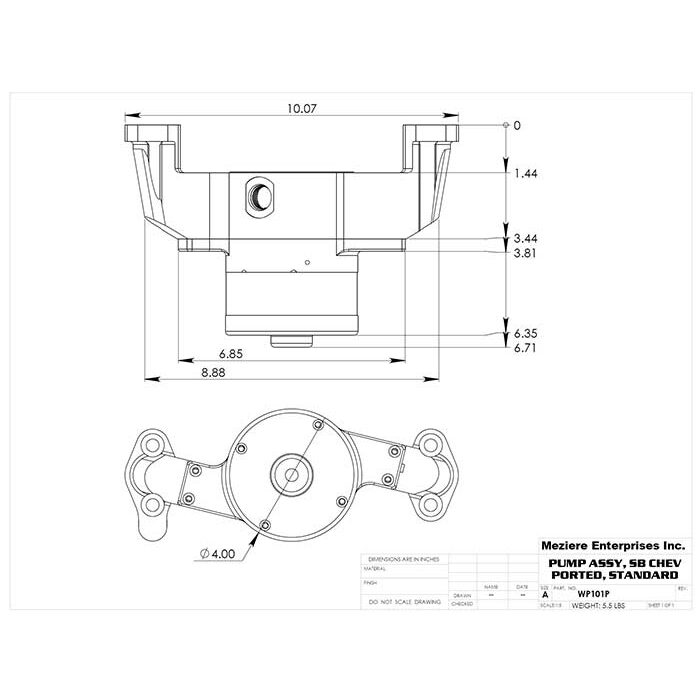

| Overall Depth | 7.28″ (Mounting Surface to Pump Tip) |
| Unit Weight | 5.5 lbs (2.5 kg) |
| Finish | Black Anodized Billet Aluminum |
What’s Included in the Box
- Meziere WP101SHD Heavy Duty Electric Water Pump (Black)
- High-quality mounting gaskets
- Stainless steel mounting hardware
- Wiring harness relay kit with inline fuse
Handcrafted in the USA with precision engineering, Meziere Enterprises sets the industry standard for motorsport cooling solutions. Available with fast UK shipping and dedicated technical support directly from JP Racing.
