Description
Part Number: AF100-06-6M

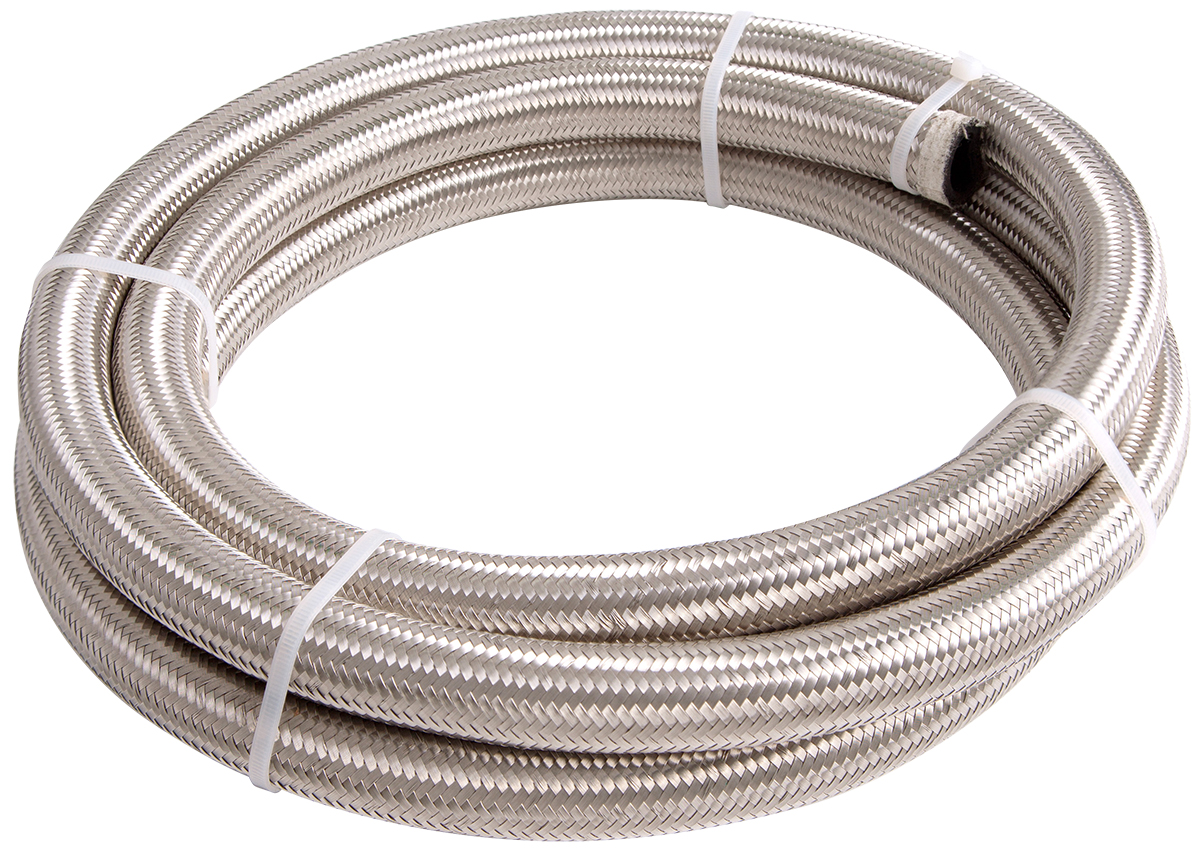

AeroFlow 100 Series -6 AN Stainless Steel Braided Hose (6 Metres)
High-performance flexible plumbing solution engineered for severe-duty race applications.
Key Features
- ✓ High-tensile 308 stainless steel outer braid for superior abrasion and heat resistance
- ✓ Premium CPE synthetic rubber inner liner compatible with race fuels, synthetic oils, and coolants
- ✓ Rated to 1,000 PSI working pressure for robust performance in high-pressure oil and fuel lines
- ✓ Industry-standard -6 AN sizing (3/8″ / 8.7mm ID) for optimum fluid velocity
- ✓ Continuous 6-metre length ideal for full vehicle plumbing overhauls
Technical Specifications
| Brand | AeroFlow Performance |
|---|---|
| Part Number | AF100-06-6M |
| Hose Series | 100 Series Stainless Steel Braided |
| AN Size | -6 AN |
| Internal Diameter (ID) | 8.73mm (11/32″) |
| Outer Diameter (OD) | 13.89mm (35/64″) |
| Roll Length | 6 Metres (19.6 ft) |
| Max Operating Pressure | 1,000 PSI |
| Burst Pressure | 6,000 PSI |
| Temperature Range | -40°C to +150°C (-40°F to +302°F) |
What’s Included in the Box
- 1 x 6-Metre Roll of AeroFlow 100 Series -6 AN Stainless Steel Braided Hose
Designed and field-tested in demanding motorsport environments, AeroFlow 100 Series braided hoses deliver exceptional reliability and professional finish. Order from JP Racing today for quick UK warehouse dispatch and expert technical advice for your build.
