Part Number: AF200-06-1M

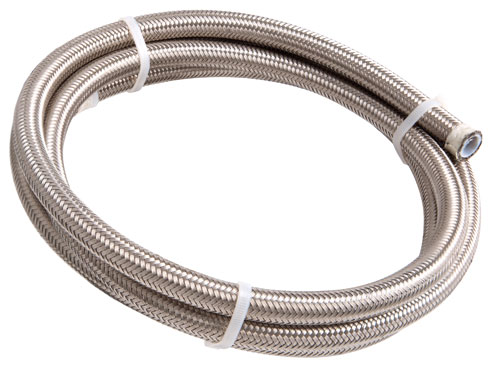

Aeroflow 200 Series PTFE Stainless Steel Braided Hose -6AN (1M)
Engineered for demanding motorsport applications, the Aeroflow 200 Series -6AN PTFE hose combines a durable Teflon inner liner with a high-tensile stainless steel outer braid to provide zero vapour permeability and maximum pressure resistance.
Key Features
- ☑ PTFE (Teflon®) inner core prevents fuel vapour permeation and resists chemical degradation
- ☑ High-tensile 308 stainless steel outer braid provides outstanding abrasion resistance and structural support
- ☑ Full compatibility with E85, ethanol, race petrol, methanol, diesel, power steering fluid, and brake fluid
- ☑ High pressure tolerance rated to 3,000 PSI operating pressure and 10,000 PSI burst pressure
- ☑ Broad operating temperature spectrum ranging from -70°C to +250°C (-94°F to +482°F)
Technical Specifications
| Manufacturer | Aeroflow Performance |
|---|---|
| Part Number | AF200-06-1M |
| Series | 200 Series PTFE |
| Hose Size | -6AN |
| Length | 1 Metre (3.28 ft) |
| Inside Diameter (ID) | 8.13mm (21/64″) |
| Outside Diameter (OD) | 10.92mm (27/64″) |
| Liner Material | PTFE (Teflon®) |
| Outer Cover | 308 Stainless Steel Braid |
| Operating Pressure | 3,000 PSI (206.85 bar) |
| Burst Pressure | 10,000 PSI (689.47 bar) |
| Min. Bend Radius | 50.8mm (2″) |
| Temperature Range | -70°C to +250°C (-94°F to +482°F) |
| Compatible Hose Ends | Aeroflow 200 & 570 Series PTFE Hose Ends |
What’s Included in the Box
- 1x Aeroflow 200 Series PTFE Stainless Steel Braided Hose -6AN (1 Metre Pre-Cut Length)
Aeroflow Performance products are manufactured to rigorous international motorsport specifications. Order part number AF200-06-1M from JP Racing for dedicated UK customer support, expert fitment advice, and rapid nationwide delivery.
