Description
Part Number: AF90-3003

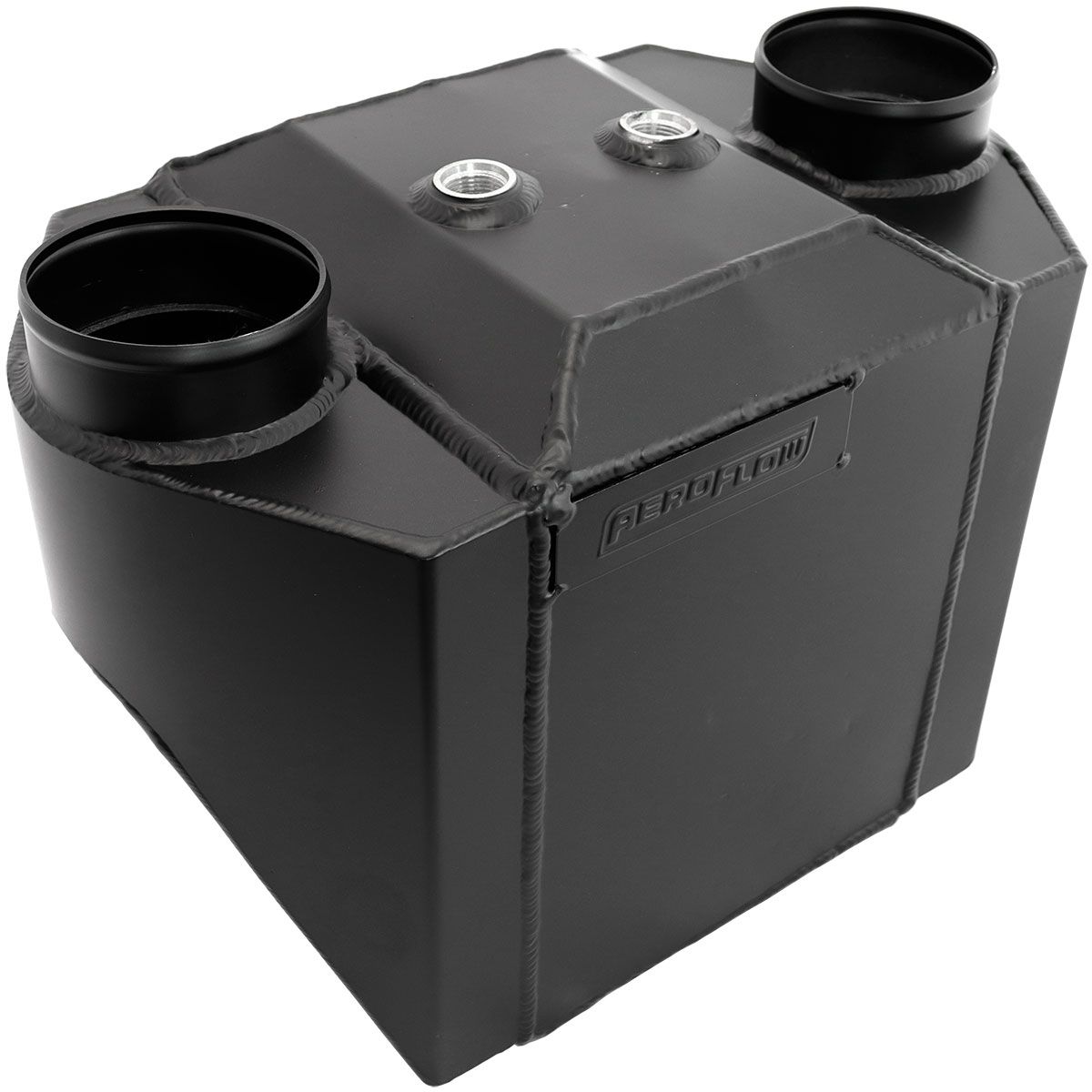

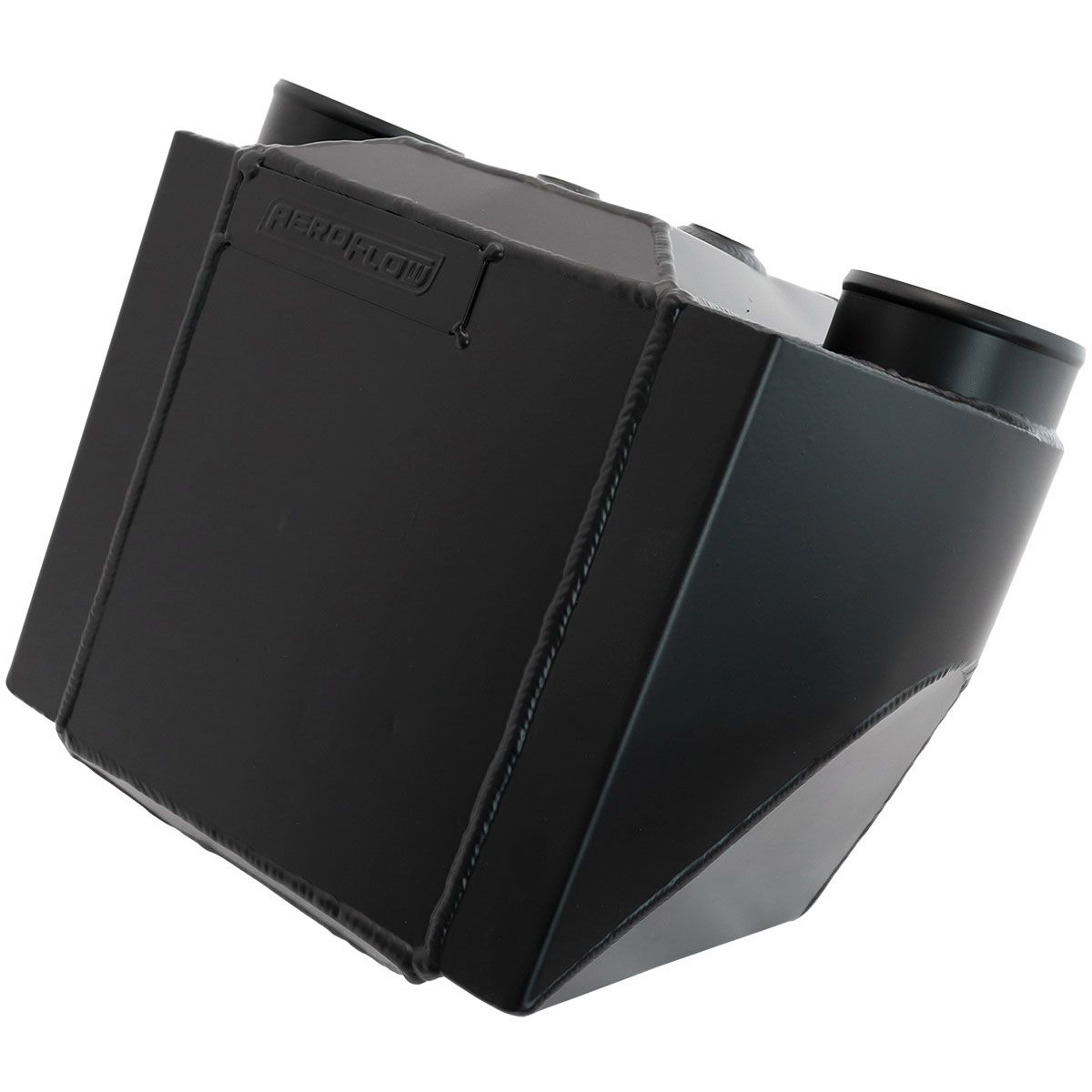

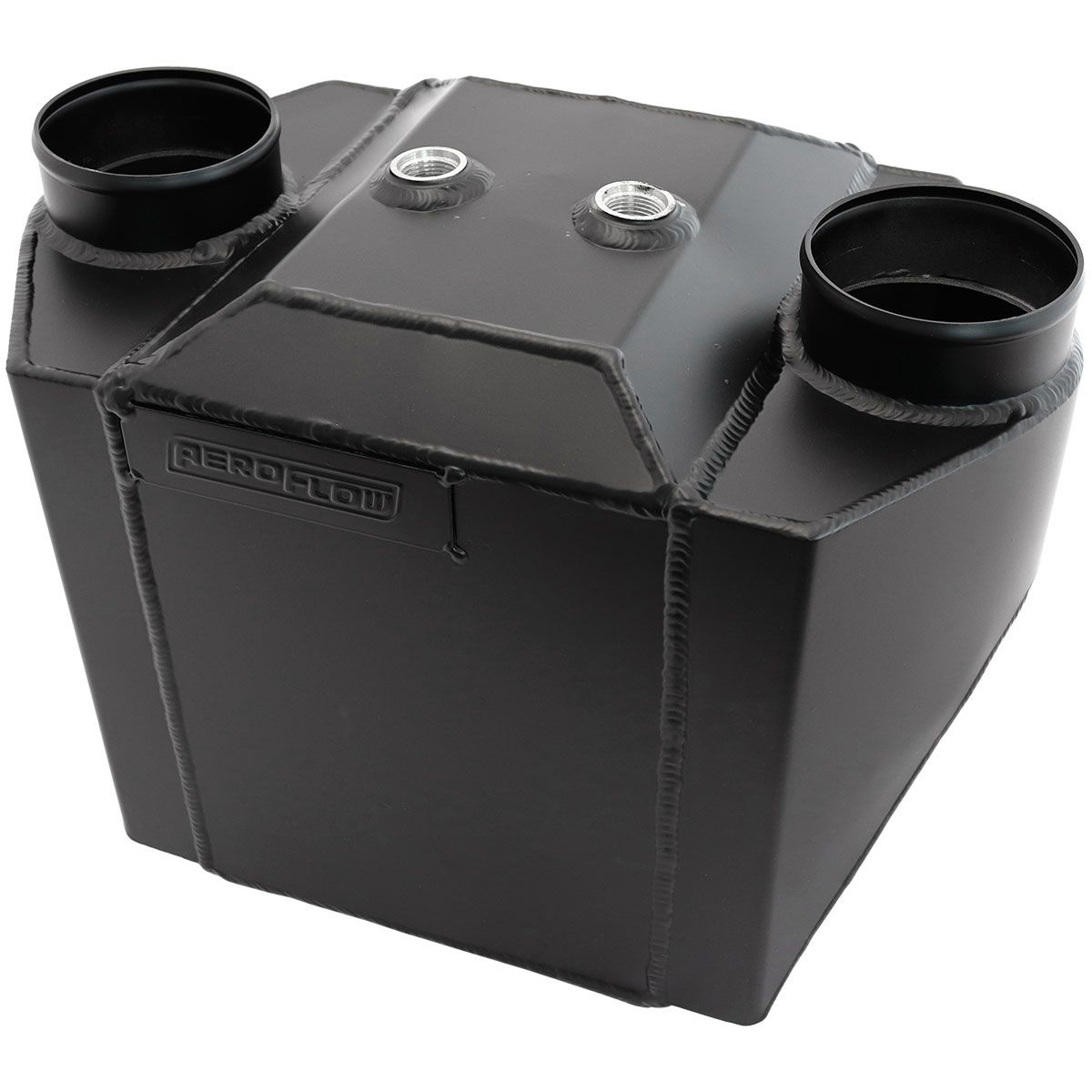

Aeroflow Water to Air Intercooler (3000 HP / 3800 CFM)
Engineered for extreme forced-induction motorsport applications, the Aeroflow AF90-3003 Water to Air Intercooler delivers unmatched thermal efficiency and minimal pressure drop for elite drag racing and high-power circuit builds.
Key Features
- ☑ High-capacity core rated for applications up to 3000 HP and 3800 CFM airflow
- ☑ Extremely low pressure drop of as low as 0.05 PSI across the unit
- ☑ Built for continuous operating boost pressures up to 150 PSI (10.34 bar)
- ☑ Universal design allows custom mounting in optimal chassis locations
- ☑ Heavy-duty end tanks integrated with female ORB ports for secure fluid plumbing
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Manufacturer Part Number | AF90-3003 |
| Intercooler Type | Water to Air (W2A) |

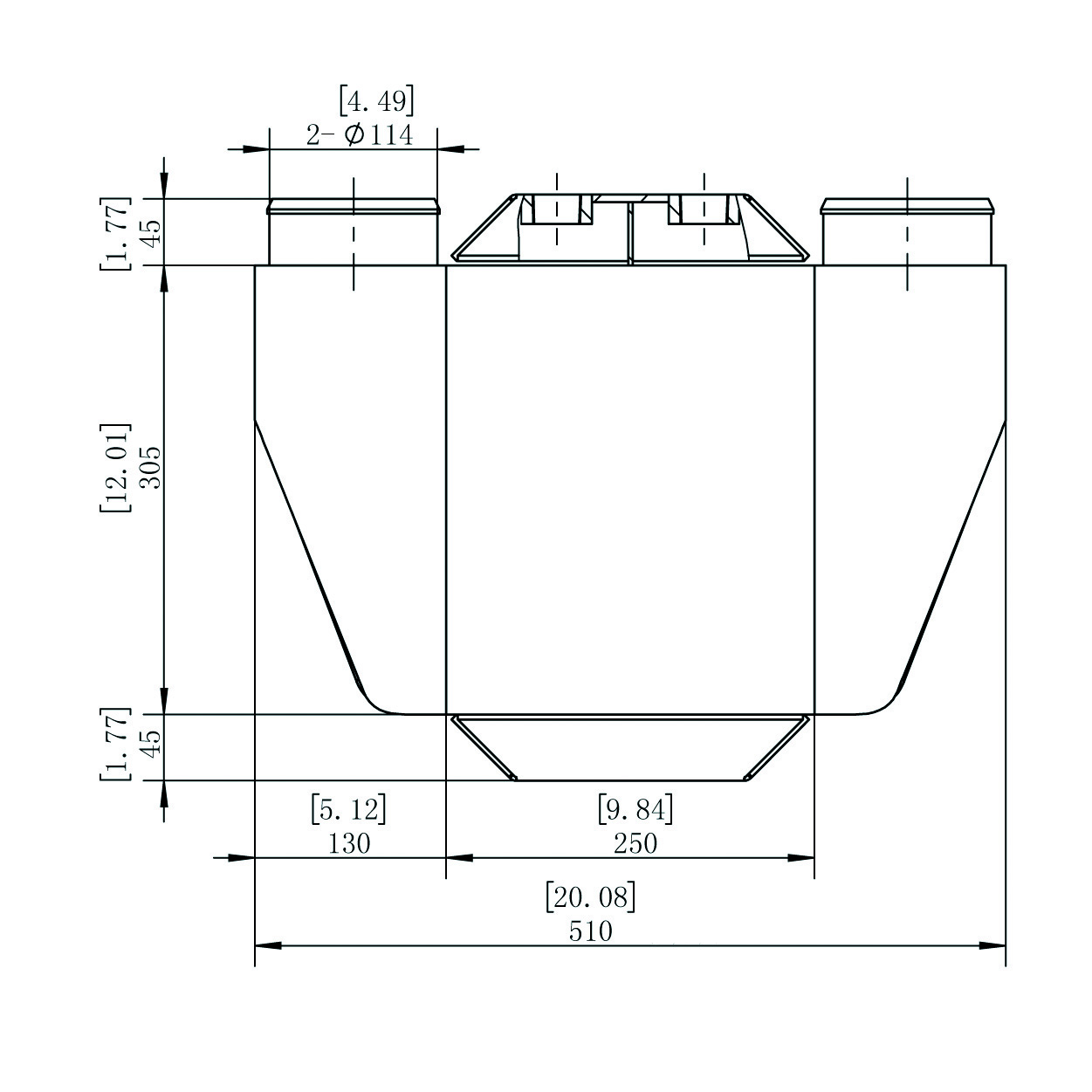

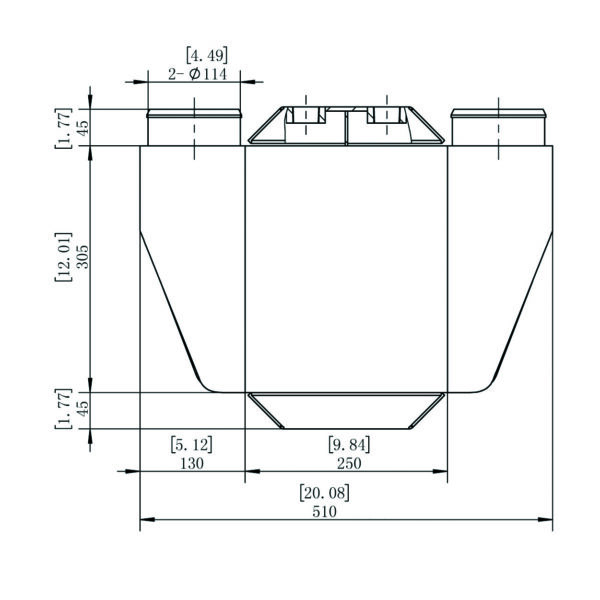

| Overall Dimensions | 15.55″ x 20.08″ x 12″ (395mm x 510mm x 305mm) |
| Airflow Rating | Up to 3800 CFM |
| Power Rating | Up to 3000 HP |
| Maximum Operating Pressure | 150 PSI (10.34 bar) |
| Pressure Drop | 0.05 PSI |
| Fluid Ports | Female ORB Ports |
What’s Included in the Box
- 1 x Aeroflow AF90-3003 Water to Air Intercooler Core Assembly
- Protective Port Caps
Aeroflow Performance components are trusted worldwide across drag strips and motorsport circuits for their uncompromised strength and thermal precision. Purchasing through JP Racing ensures authentic high-performance hardware, expert customer support, and rapid UK delivery for your competition build.
