Description
Part Number: AF90-3000

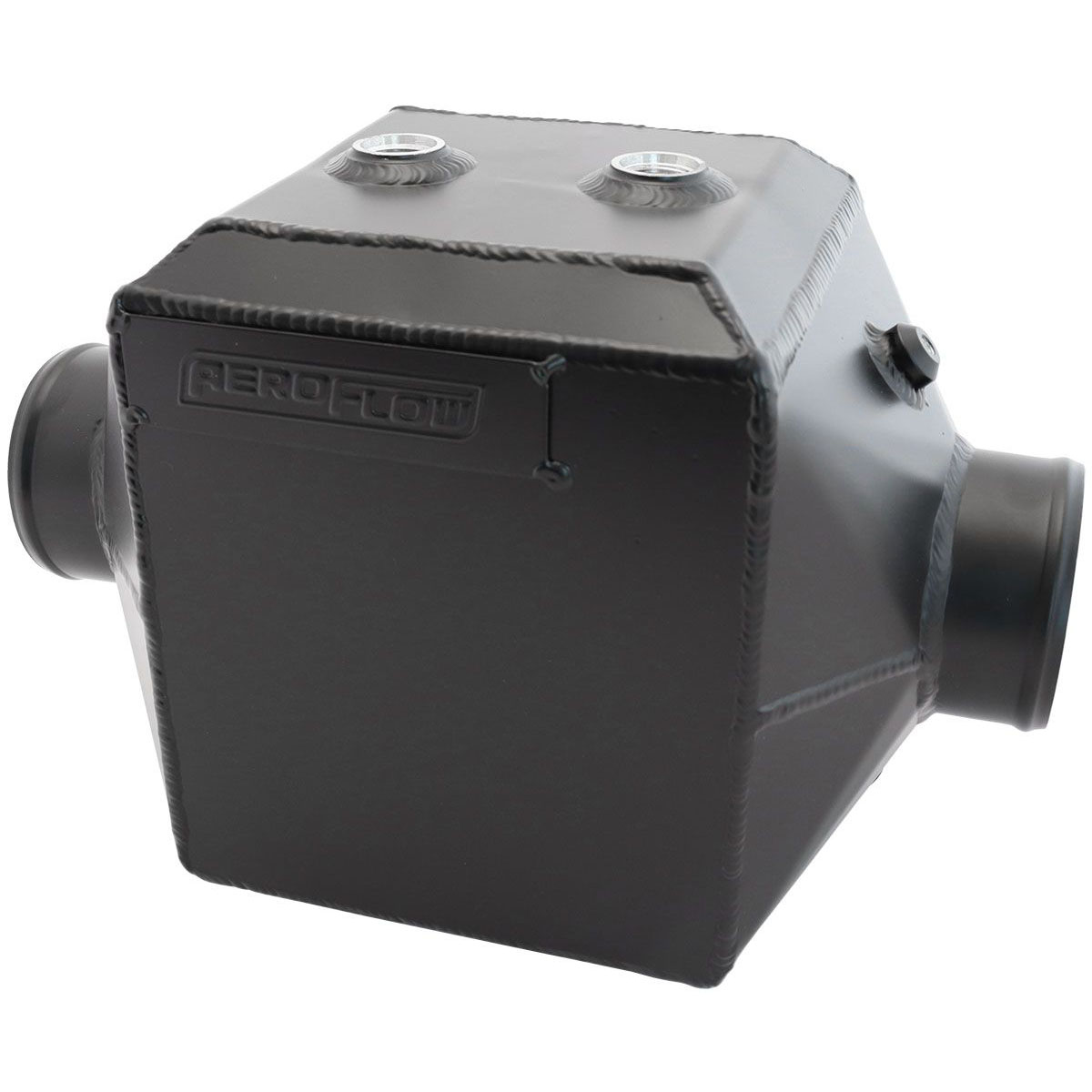

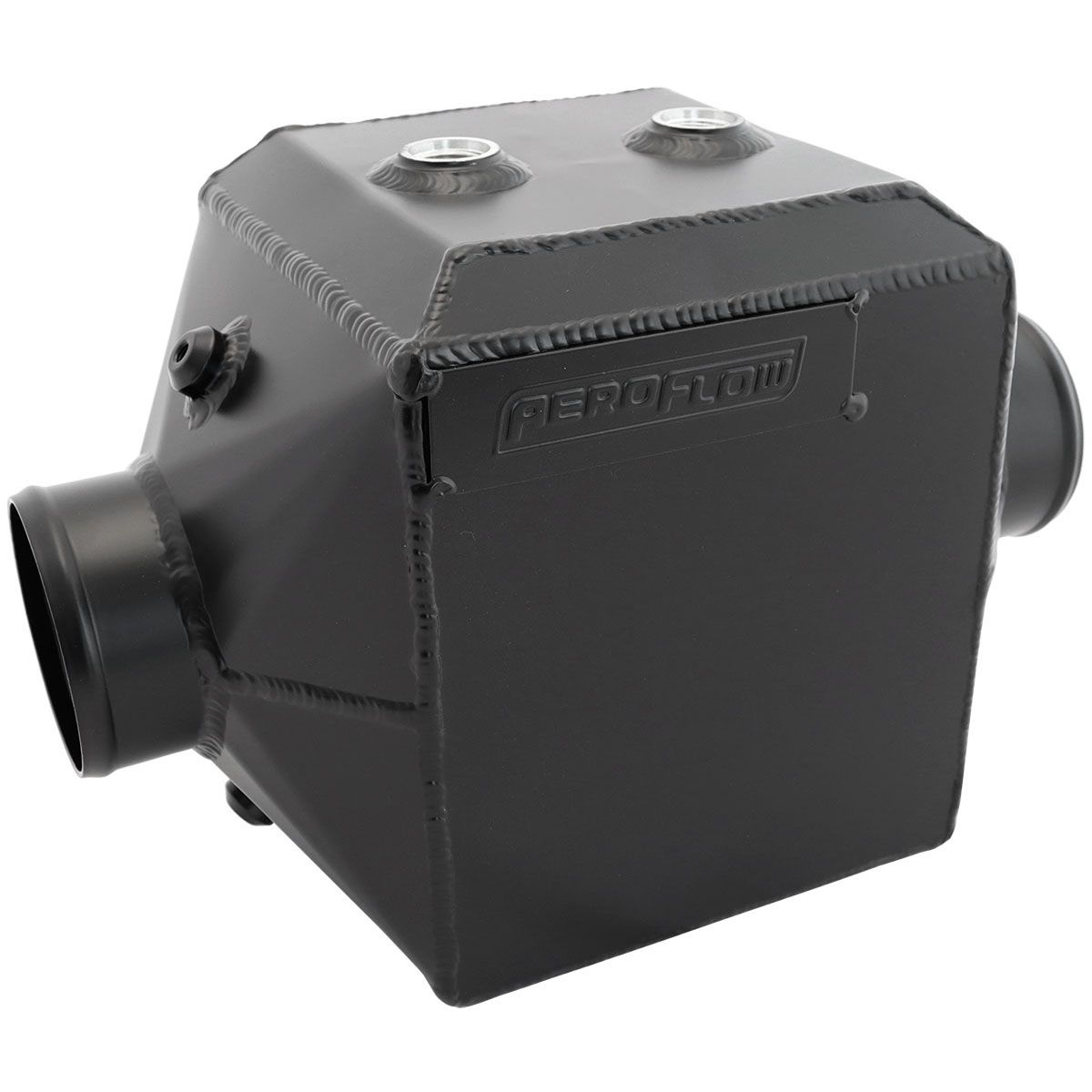

Aeroflow Water to Air Intercooler 2000HP
Engineered for extreme performance applications, delivering continuous cooling for up to 2,000 HP with minimal pressure drop.
Key Features
- ☑ High-efficiency core rated for up to 2,500 CFM and 2,000 HP applications
- ☑ Heavy-duty aluminium construction tested up to 150 PSI (10.34 bar) continuous working pressure
- ☑ Ultra-low pressure drop measured as low as 0.05 PSI across the core
- ☑ Female -12ORB threaded water ports for clean, leak-free fluid plumbing
- ☑ Compact universal fitment allowing mounting flexibility anywhere in the vehicle
Technical Specifications
| Brand | Aeroflow Performance |
|---|---|
| Part Number | AF90-3000 |
| Intercooler Type | Water-to-Air |
| Power Rating | Up to 2000 HP / 2500 CFM |

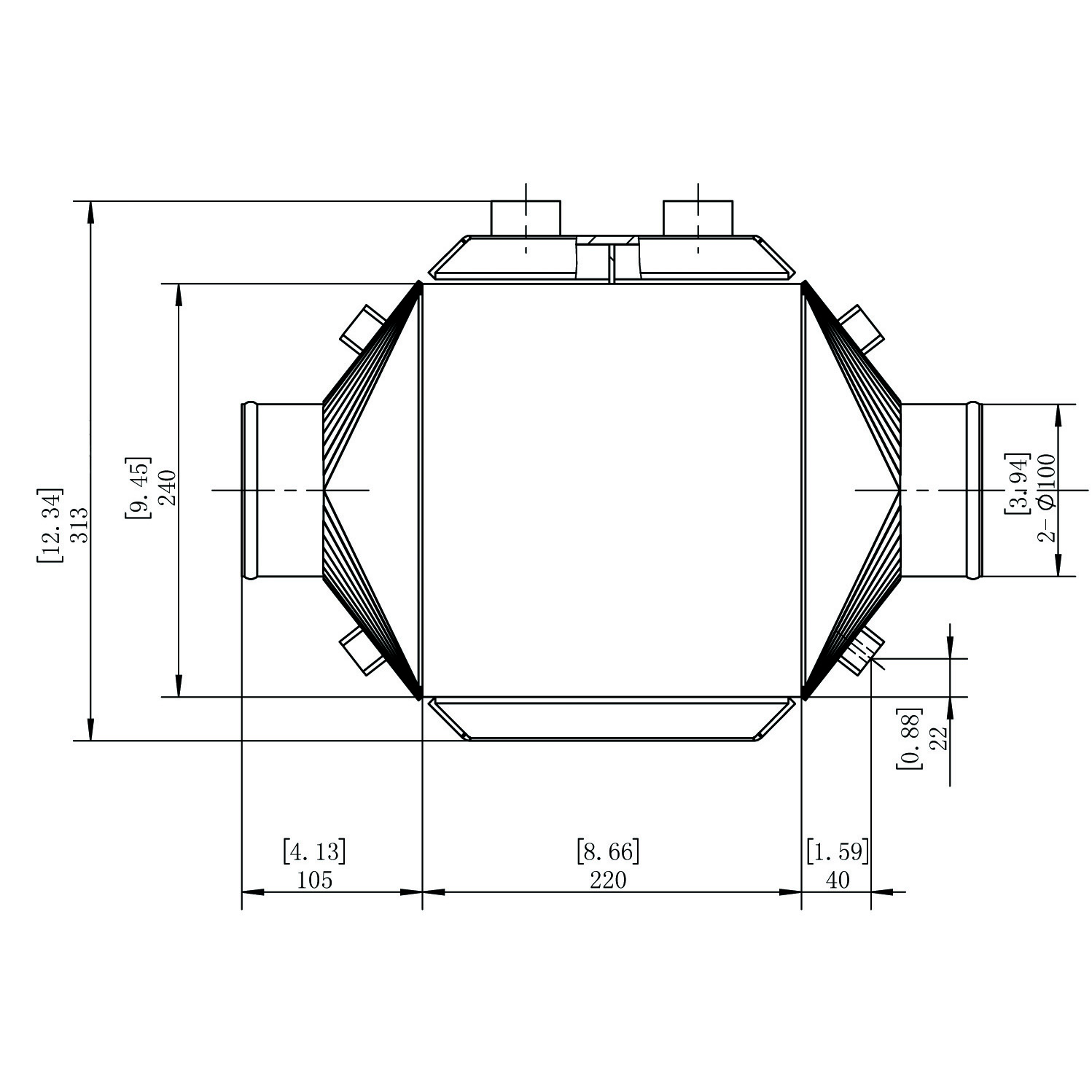

| Dimensions | 17″ x 12.25″ x 9″ |
| Water Port Threads | -12ORB Female |
| Max Operating Pressure | 150 PSI (10.34 bar) |
| Pressure Drop | ~0.05 PSI |
What’s Included in the Box
- 1x Aeroflow Performance Water-to-Air Intercooler Assembly (PN: AF90-3000)
Aeroflow Performance products are manufactured to rigorous motorsport standards to withstand demanding high-boost environments. When sourcing your hardware through JP Racing, you receive expert technical advice, fast UK dispatch, and full UK customer support to keep your performance build on track.
